TD 93021US
17 July 2017 / Ver. PF3 112
Installation Guide
teleCARE IP
6.18 Sunblind Control Module

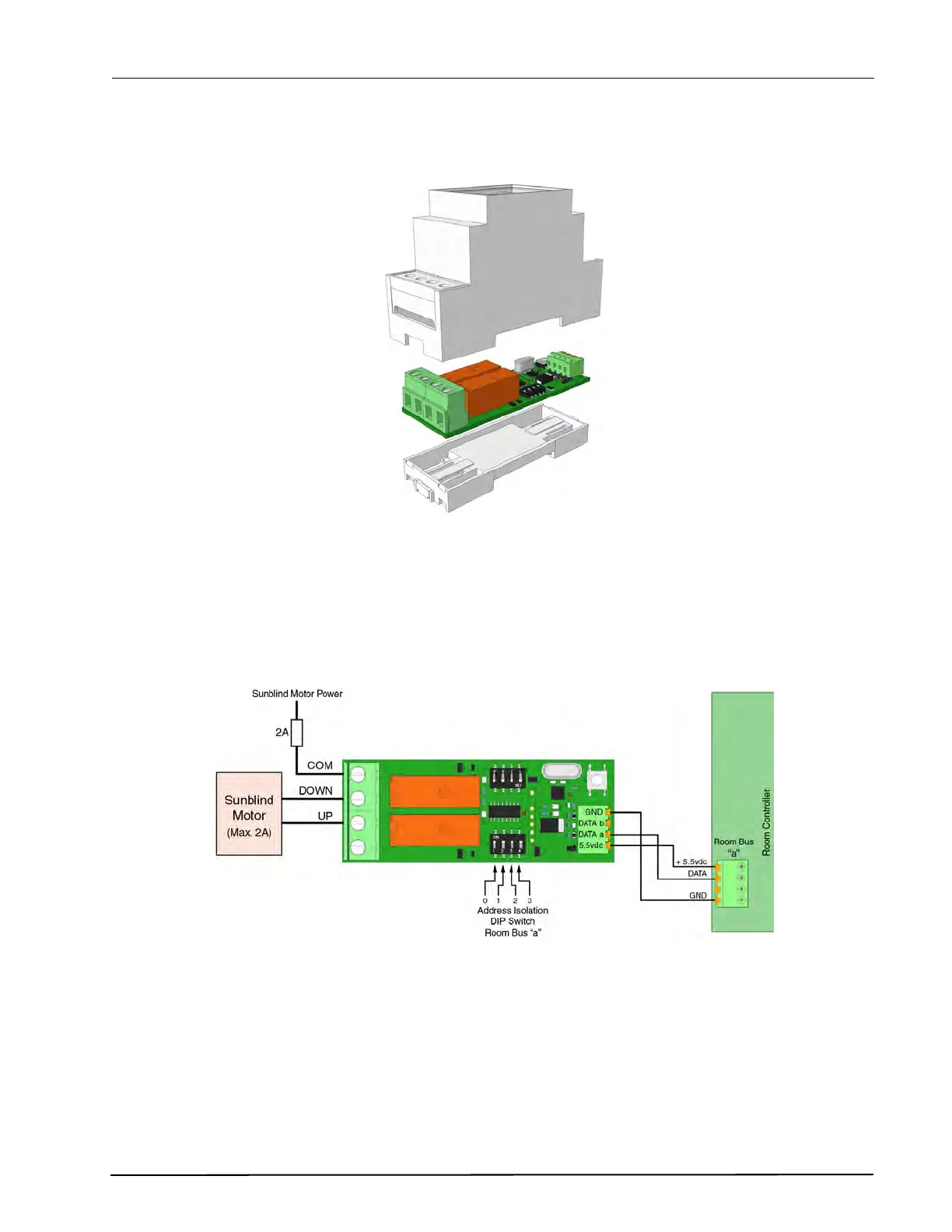

Figure 153. Sunblind Control Module
The Sunblind Control Module is a passive device on the teleCARE IP room bus. It has two heavy duty
relays with normally open contacts to control the sunblind motor.
The sunblind control module is compatible with the bedside module NIBM2 and the medical rail socket
NIMS2. It is used in combination with the NIPH3-A7A and NIPH3-AES handsets to control the up and
down motors of sunblinds.
Figure 154. Sunblind control module electrical connections
The Sunblind Control Module is mounted on a 1-1/2” DIN rail, which must be permanently mounted to a
wall. It must not be within reach or intentional access of a resident (e.g., above a ceiling tile), or it can be
mounted within a separate electrical equipment enclosure.
The sunblind control module can be connected to one room bus and will only respond to room bus
addresses 0 to 3 of the connected room bus. The Room Bus “a” DIP switches are used to prevent the
sunblind control module from responding to specific room bus addresses. Setting a DIP switch to the ON
position selects that particular address, 0 to 3 to control the module.
