TD 93021US
17 July 2017 / Ver. PF3 66
Installation Guide
teleCARE IP
6.4.9 Dismantling a Switch Module from a Spacer

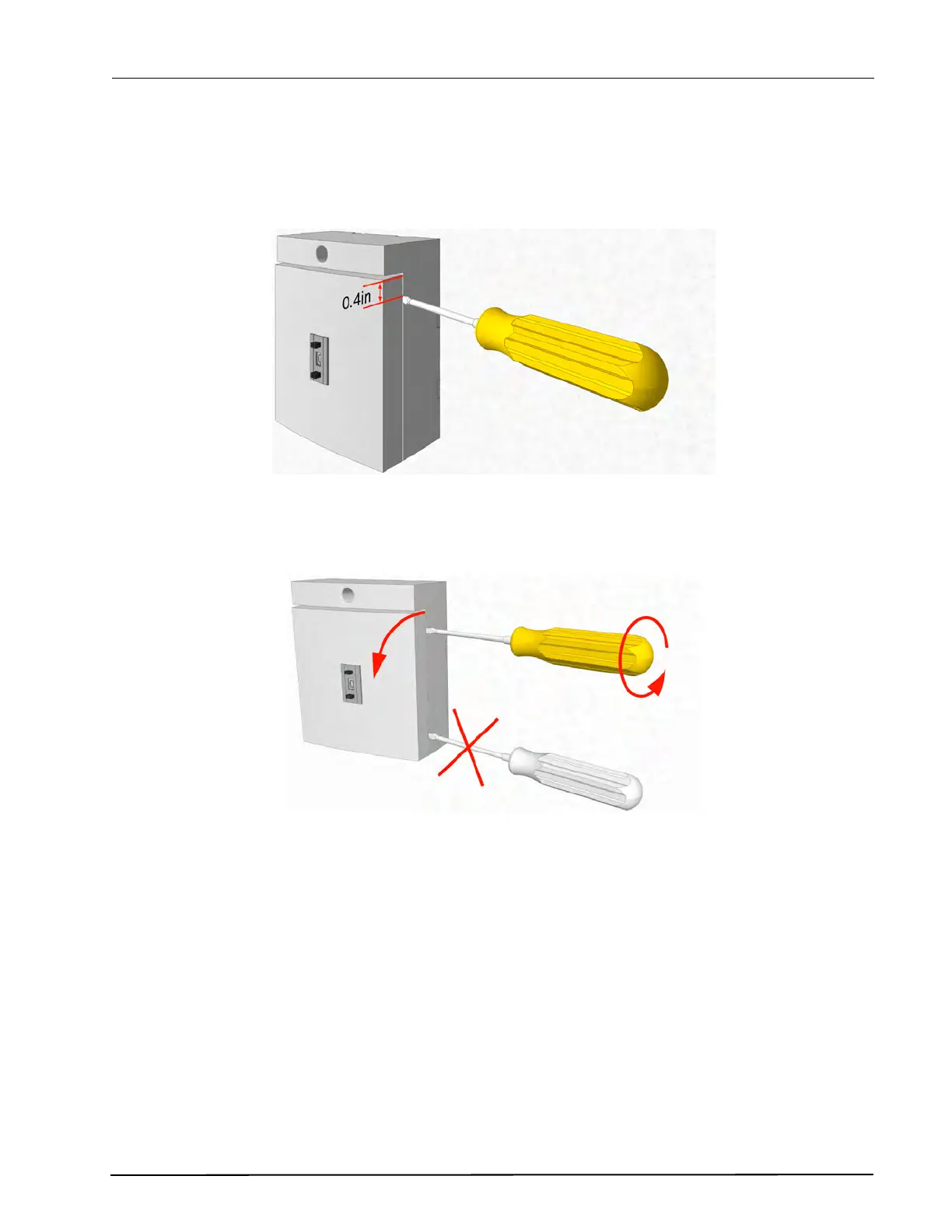

Insert the point of the screwdriver into the groove at the side of the switch module between the faceplate
and the spacer at about 0.40in (10mm) down from one of the top corners.
Figure 87. Inserting the screwdriver
Gently push and turn the screwdriver until the switch module releases from the spacer.
Figure 88. Removing the switch module from the backplate
Caution: Do not insert the screwdriver into the bottom corner of the faceplate.
