DRAFT
TD 93021US
17 July 2017 / Ver
. PF3
176
Installation Guide
teleCARE IP
Mount the NILF on the door pos
t or wall.

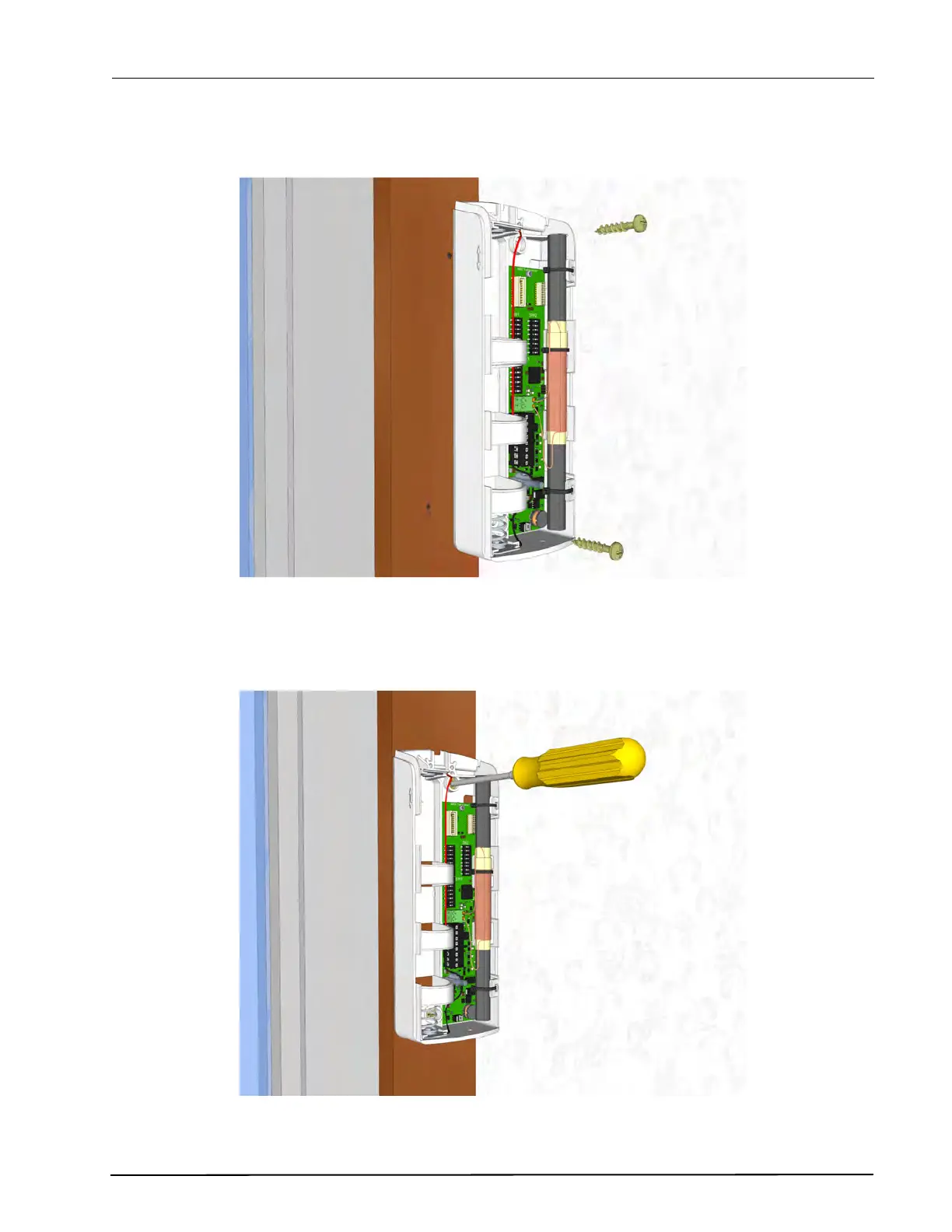

Figure 232
. Placing the NILF on the door post
The two screws should be tigh
tened carefully using th
e appr
opriate screwdriver
. Make sure that the NILF
does not bend when tightening t
he
scr
ews.
Figure
233. Tightening the two scr
ews.
180
182
