TD 93021US
17 July 2017 / Ver. PF3 53
Installation Guide
teleCARE IP
5.9.3 NISM2 Power Supply
Connect the 24V power supply to the NISM2 at the "12-24V 1A” connector, as show in the following
illustration:

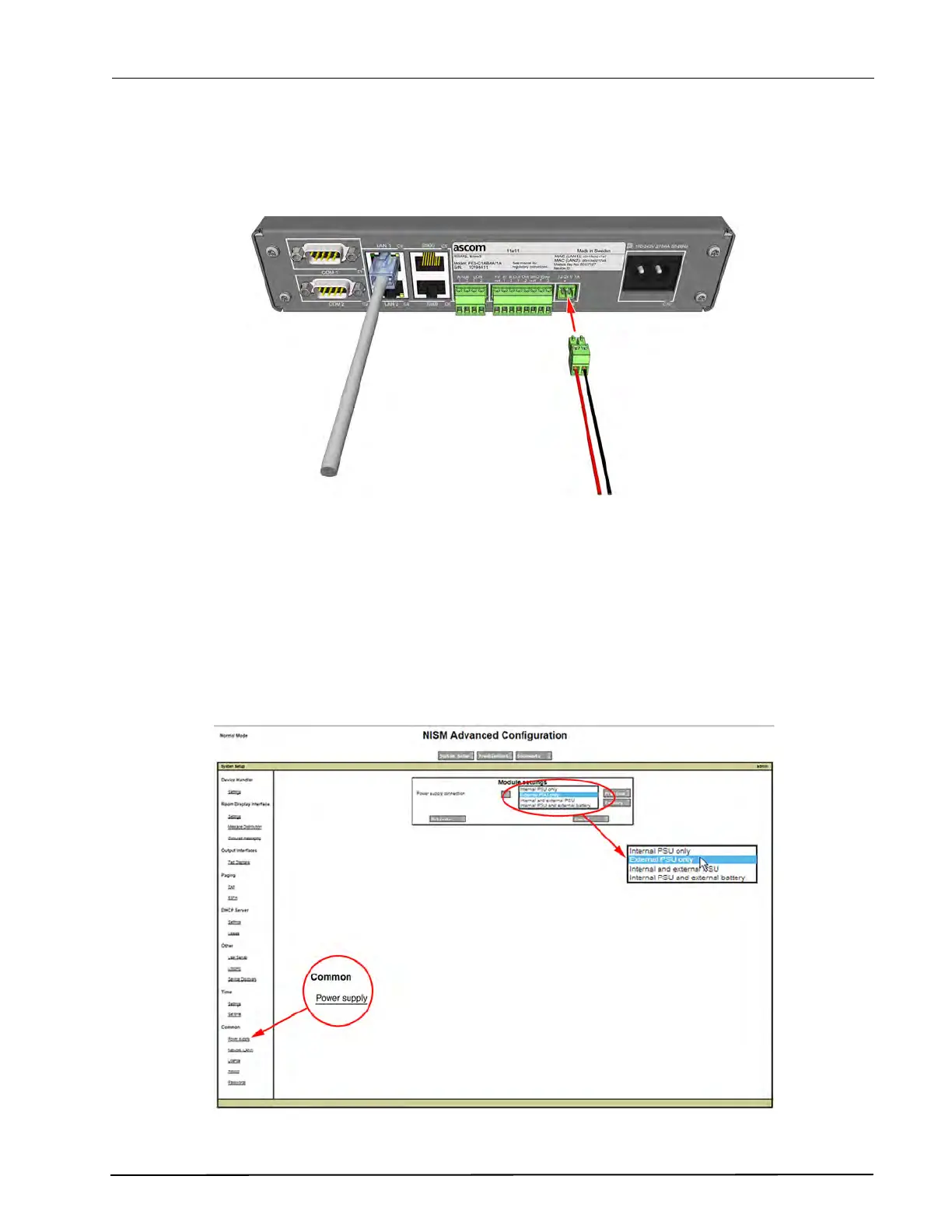

Figure 70. Connecting the 24Vdc power supply
IMPORTANT: For UL 2560 installations, the NISM2 can only be connected to the systems
external 24Vdc power supply (see “System Power” on page 10). Do not connect to mains
power!
5.9.4 Setting the type of Power Supply in the NISM Advanced Settings
After connecting the external power supply to the NISM select the appropriate type of power supply in
the NISM Advanced Configuration of the teleCARE IP System Manager.
Figure 71. NISM power supply connection settings
To Next Page
