TD 93021US
17 July 2017 / Ver
. PF3
76
Installation Guide
teleCARE IP
6.6.5
Mounting the Medical Rail Socket

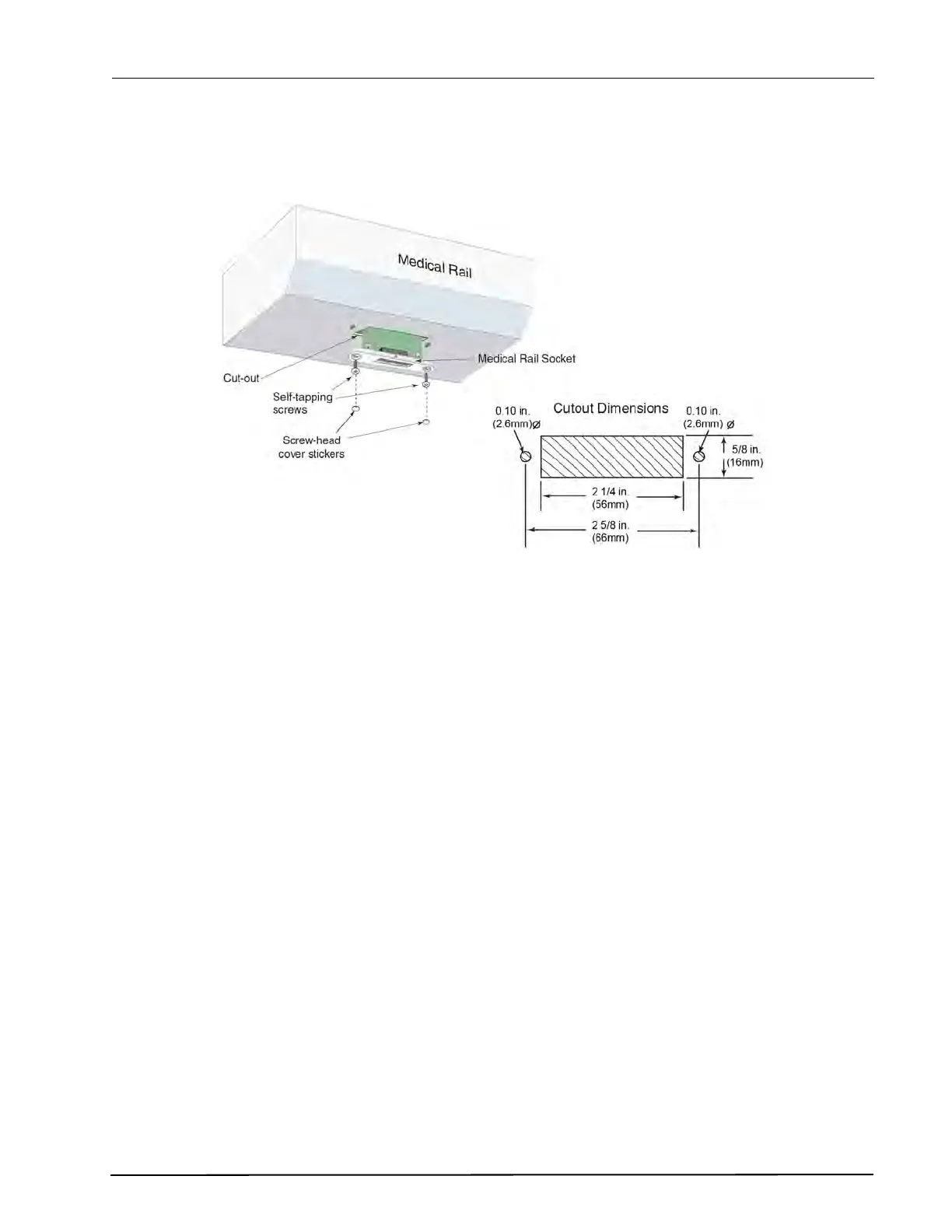

The following illustration shows how th
e medical rail socket is mounted in
the underside of a medical rail.
Figur
e 99. Medical rail socket mounting and cut-out dimensions
80
82
