17 July 2017 / Ver. PF3 115
TD 93021US
Installation Guide
teleCARE IP
Peripherals
Ensure that the electrical power to the equipment is switched off before connecting the
Connection Board to any of the listed switch modules.
The area in which the teleCARE equipment is to be installed must be clean, dry and
weatherproof.
The NICB must be mounted in the back box onto which the switch modules are mounted.
7.4 NICB-kit
The NICB is part of a kit. NICB-kit order number is NICB-AAA. The NICB-kit contains the
following parts:
• Connection Board (NICB)
• Cross Cable (R190193)
• 4-Pole connector (NICT4-AA)
The cross cable and the Connection Board are already connected and enclosed in a heat
shrink wrap.

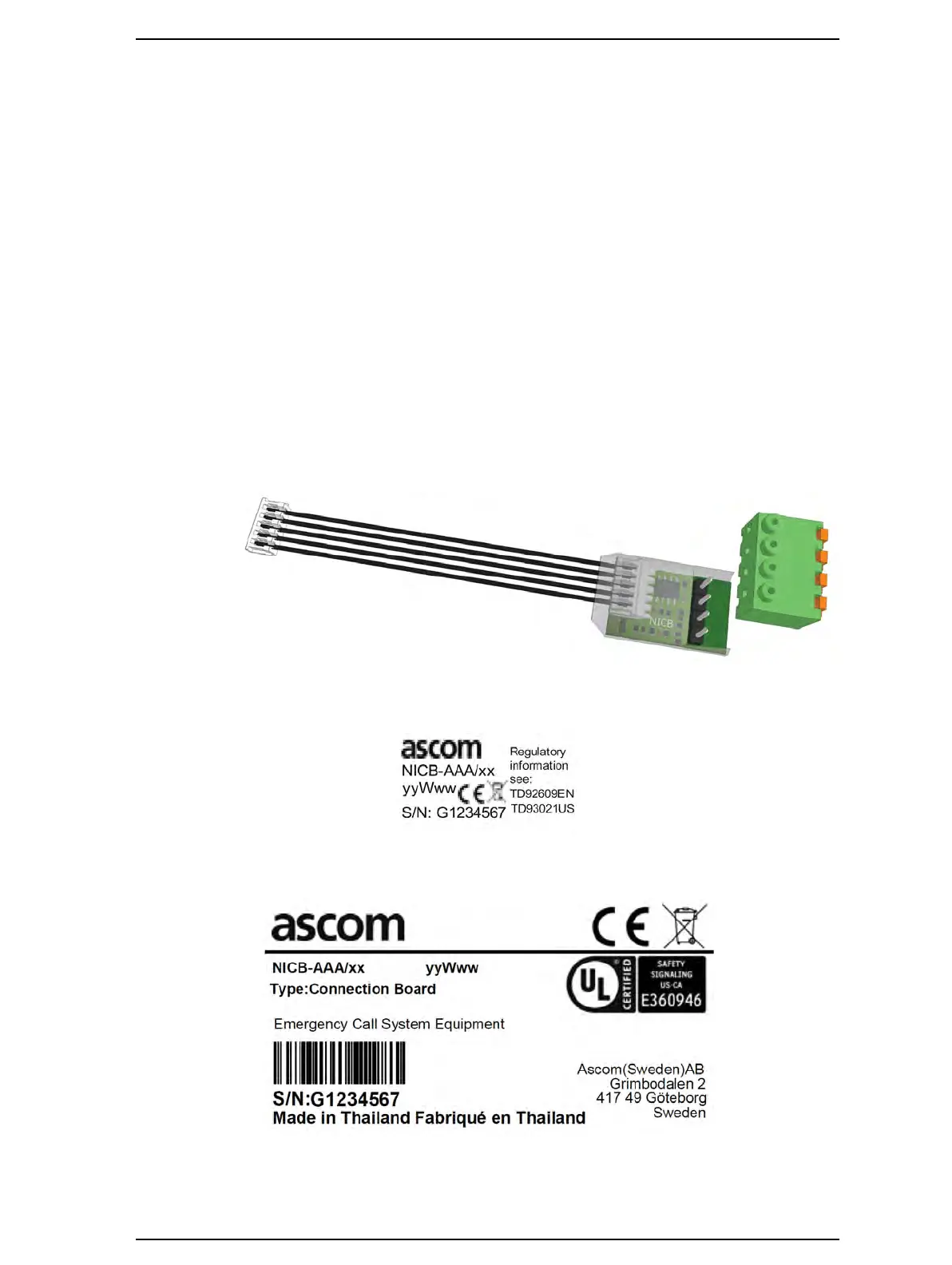

Figure 156. Connection Board Kit NICB-AAA.
Figure 157. Product label on the Connection Board.
Figure 158. Product label on the NICB-AAA.
