TD 93021US
17 July 2017 / Ver. PF3 37
Installation Guide
teleCARE IP
5.6.4 Connecting LAN Cable
The LAN cable has an RJ45 plug which connects to the socket on the room controller printed circuit board
shown in section 5.3.2 on page 26. The LAN cable should not be guided through the wiring clips inside
the room controller housing. It should be plugged directly into the RJ45 connector on the printed circuit
board with enough cable to avoid straining the LAN connection.

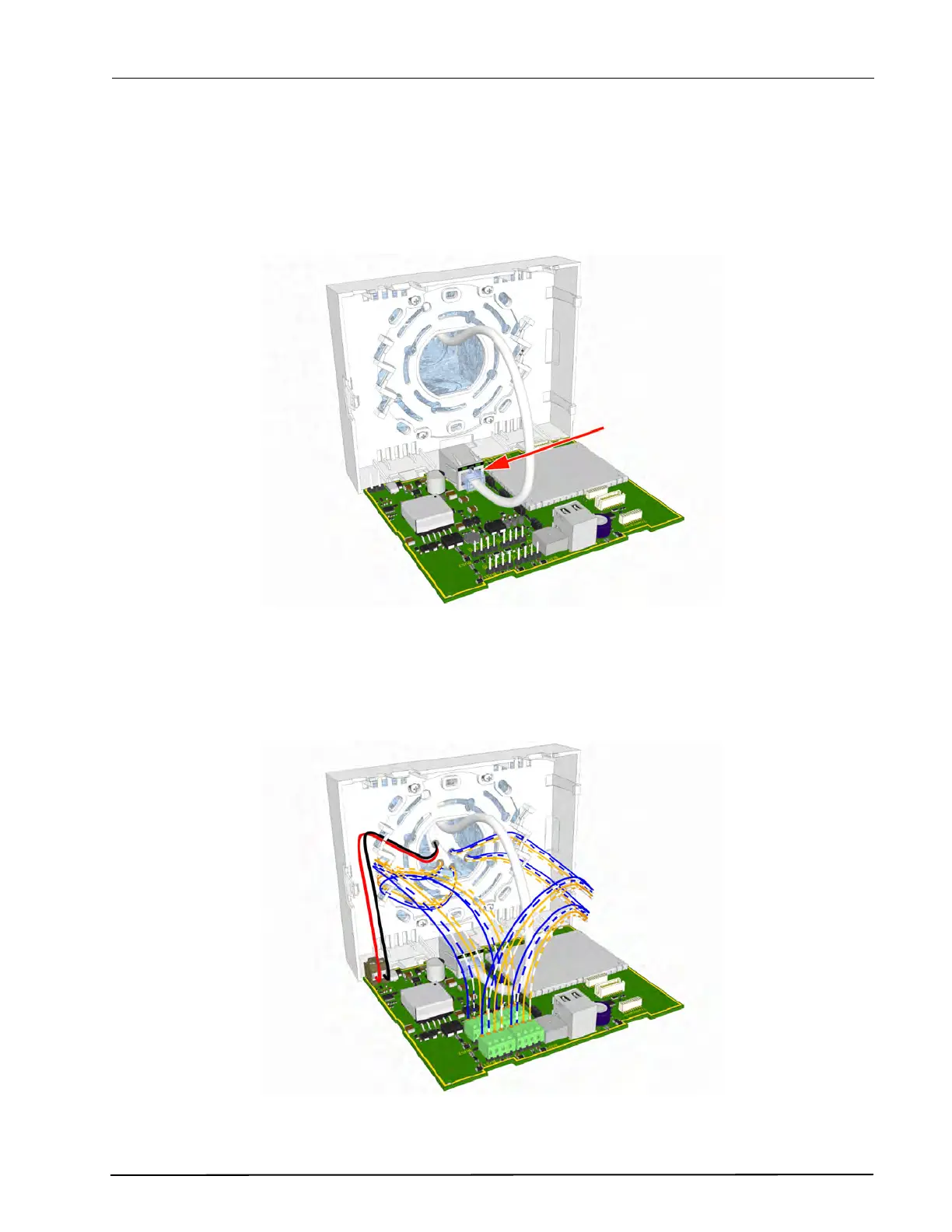

Figure 41. Connecting the LAN cable to the NIRC3
5.6.5 Fully Wired IP Room Controller
The following illustration shows how the room controller (NIRC3) should look with all wiring connected
when external power is used:
Figure 42. Fully Wired room controller - NIRC3
RJ45 LAN
Connector
(Do not use
the wire
holding clips)
To Next Page
