17 July 2017 / Ver. PF3 119
TD 93021US
Installation Guide
teleCARE IP
Peripherals
7.7 Door Side Module (NIDM) and Toilet Cancel Module - Active (NITC-XXA)
The modules NIDM and active NITC can be connected to the NICB for the use of two
external inputs.
These modules shall be connected to the NICB via two 4-pole screw terminals
.

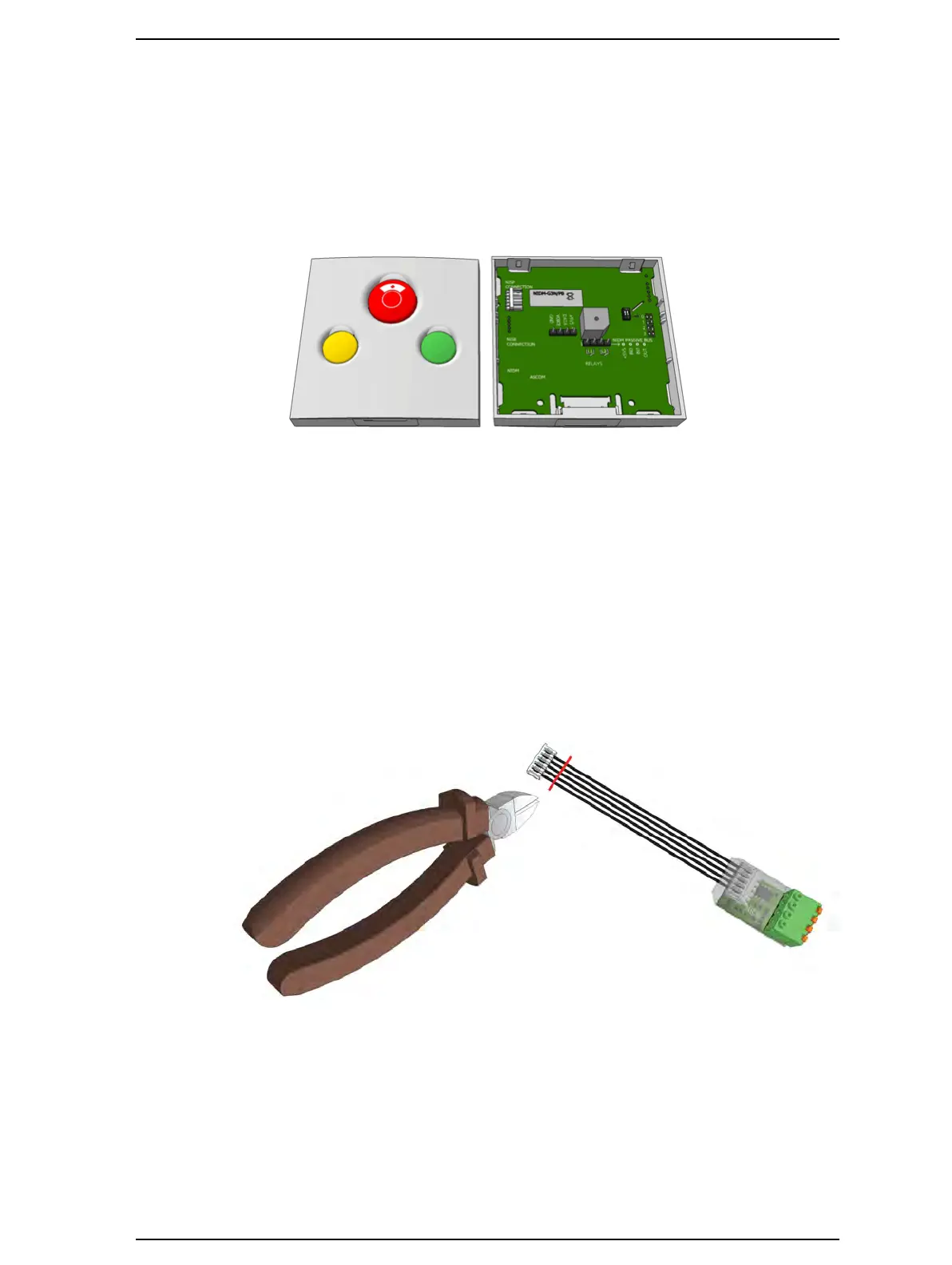

Figure 164. Door side module: front and back view
Note: The two 4-pole screw terminals which are required to connect the room
bus and the passive bus to the NICB module must be ordered separately.The
article number is R180768.
See “Connecting to the NICB” on page 119.
7.7.1 Connecting to the NICB
The NICB cross cable needs to be prepared to be connected to the two 4-pole screw
terminals before connecting to the switch module.
Note: The cross cable wires are not solid and cannot be used with the NICT4-AA
4-pole connector.
• Cut off the end of the cross cable.
