7.6 Bed Module (NIBM2) and Pull Cord Module - Active (NIPC-XXA)
The modules NIBM2 and active NIPC can be connected to the NICB for the use of one
external input.
IMPORTANT: Only IN0 of the NICB shall be used. IN1 of the NICB shall not be
connected. If IN1 of the NICB is connected, the switch module cannot properly
detect the presence of the NICB.

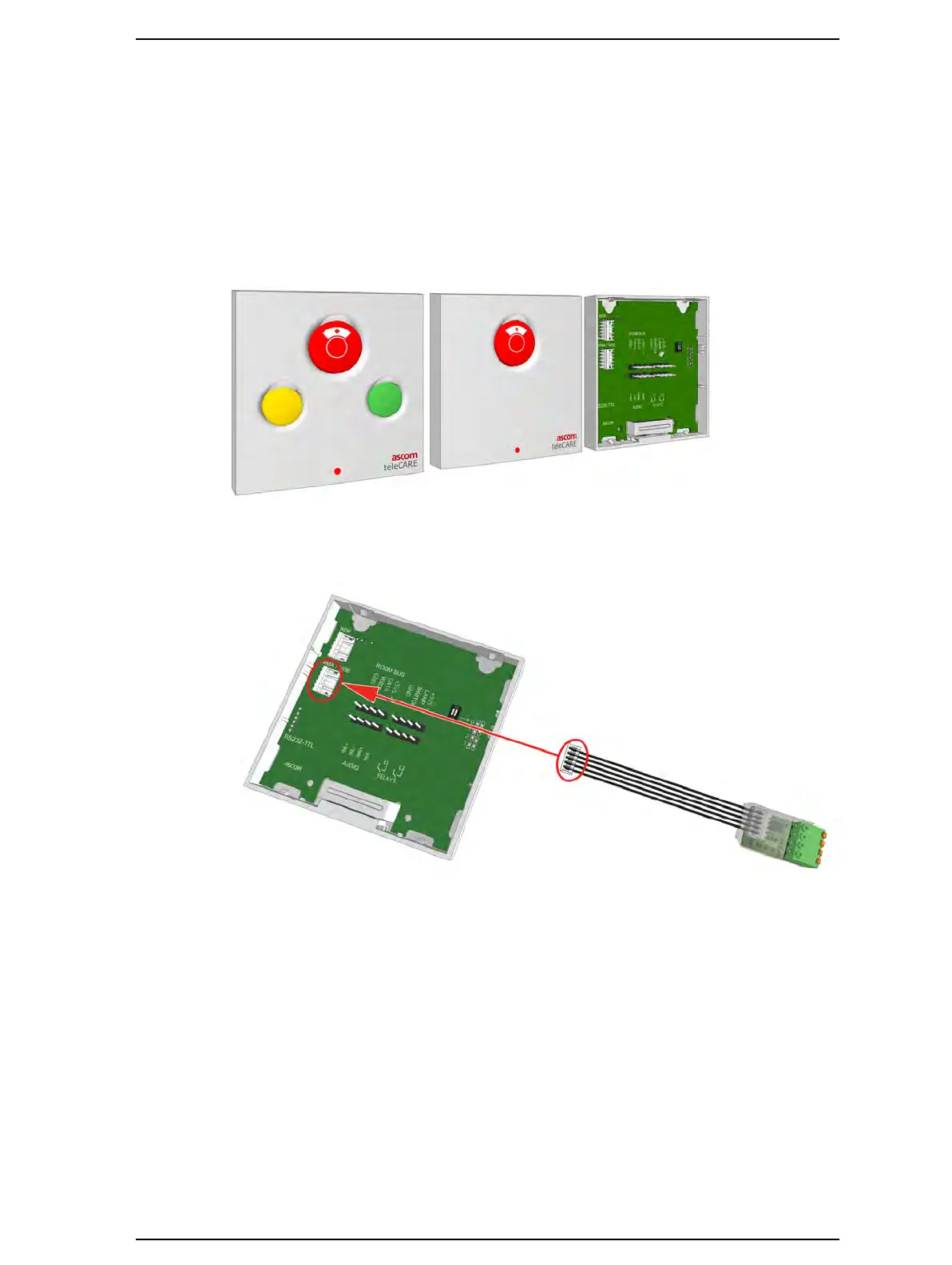

Figure 163. Bedside module NIBM2: front and back view
• Connect the end of the cross cable in the connector marked NISE.
Note: The NIPC-XXA is connected in a similar way as the NIBM2.
