TD 93021US
17 July 2017 / Ver. PF3 85
Installation Guide
teleCARE IP
6.12.1 Mounting the NIPC2 Pull Cord Module
In order to avoid physical damage to the module and to reduce the risk of exposure to excessive spray
water in shower rooms, bathrooms and similar wet areas, the NIPC2 should be installed with the pull cord
module mounted above the height of any water source.
The NIPC2 should be mounted in a location which ensures that the pull cord hangs free of any
obstructions, is clearly seen and within easy reach so that it can be pulled to activate a call by residents or
staff in an emergency or when assistance is required.
The NIPC2 should be mounted at a minimum height of 90.5in (2300mm) above the floor and at least 8in
(200mm) above the highest position of the shower head. Where possible the pull cord should extend
down to approximately 9in (200mm) above the floor.

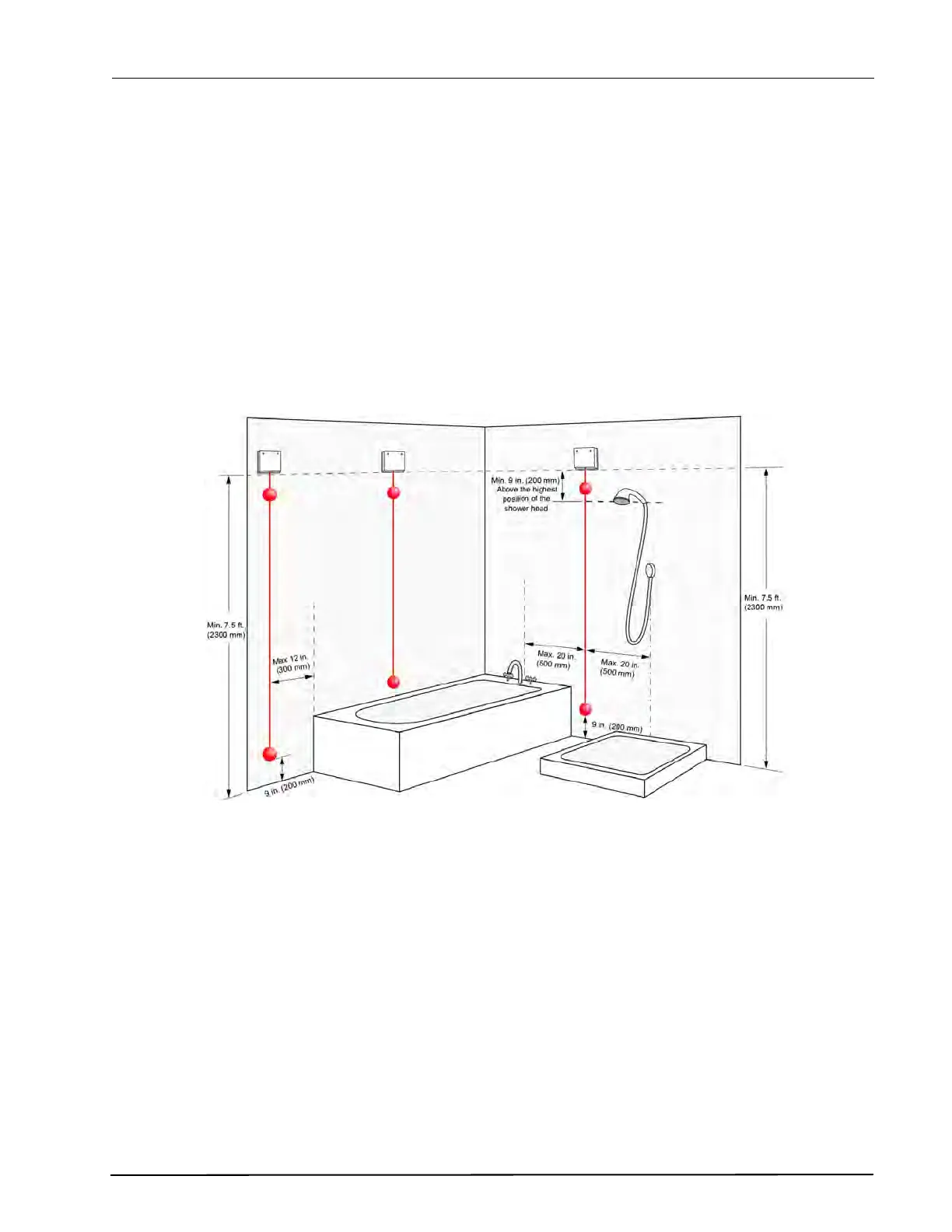

The following illustration shows some examples of suitable locations for the pull cord module.
Figure 112. Examples of suitable locations for mounting the NIPC2
