TD 93021US
17 July 2017 / Ver. PF3 52
Installation Guide
teleCARE IP
5.9.1 NISM2 Electrical Connections

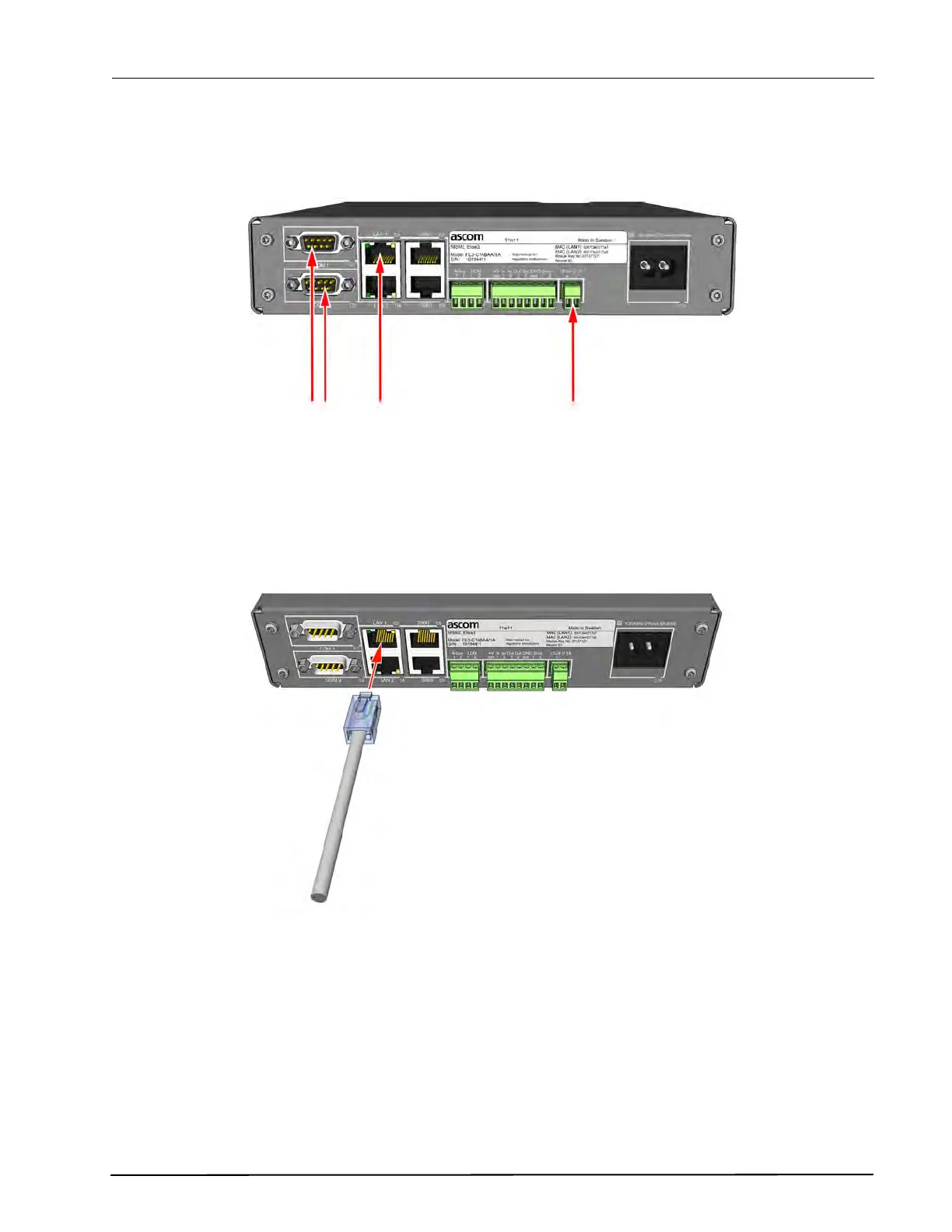

The following illustration shows the appropriate electrical connections for teleCARE IP applications:
Figure 68. NISM electrical connections
Note: All other connections are not used in teleCARE IP applications.
5.9.2 Ethernet LAN Cable
Connect the Ethernet LAN cable to the “LAN 1” port.
Figure 69. Connecting the Ethernet LAN cable
External PowerEthernet
LAN
COM
Ports
10baseT/100base T
Ethernet LAN
Connection
To Next Page
