Installation Guide

teleCARE IP

Peripherals

• Strip the insulation from the end of each wire over 5mm (3/16in).

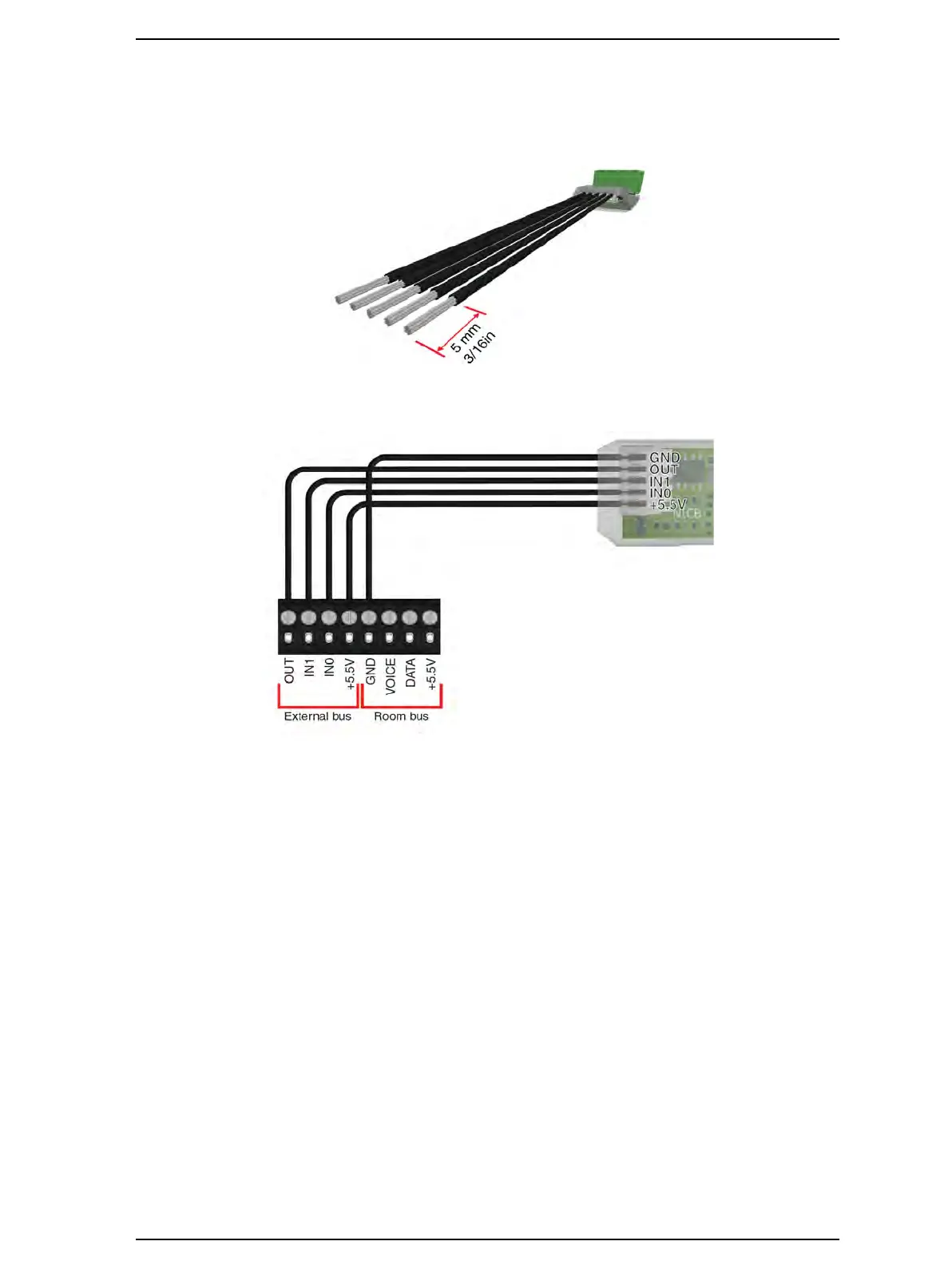

• Connect the wires to the 8-pole screw connector as shown below.
