TD 93021US
17 July 2017 / Ver
. PF3
93
Installation Guide
teleCARE IP
6.12.12 Assembli
ng and Attaching the Pull Cor
d
It is important to assemble and atta
ch the pull cord to the pull switch mo
dule correctly to ensur
e the cord
is securely attached and that the “safety br
eak”
mechanism works reliably
.
The following illustrations
show how to pr
epare the
pull cord:

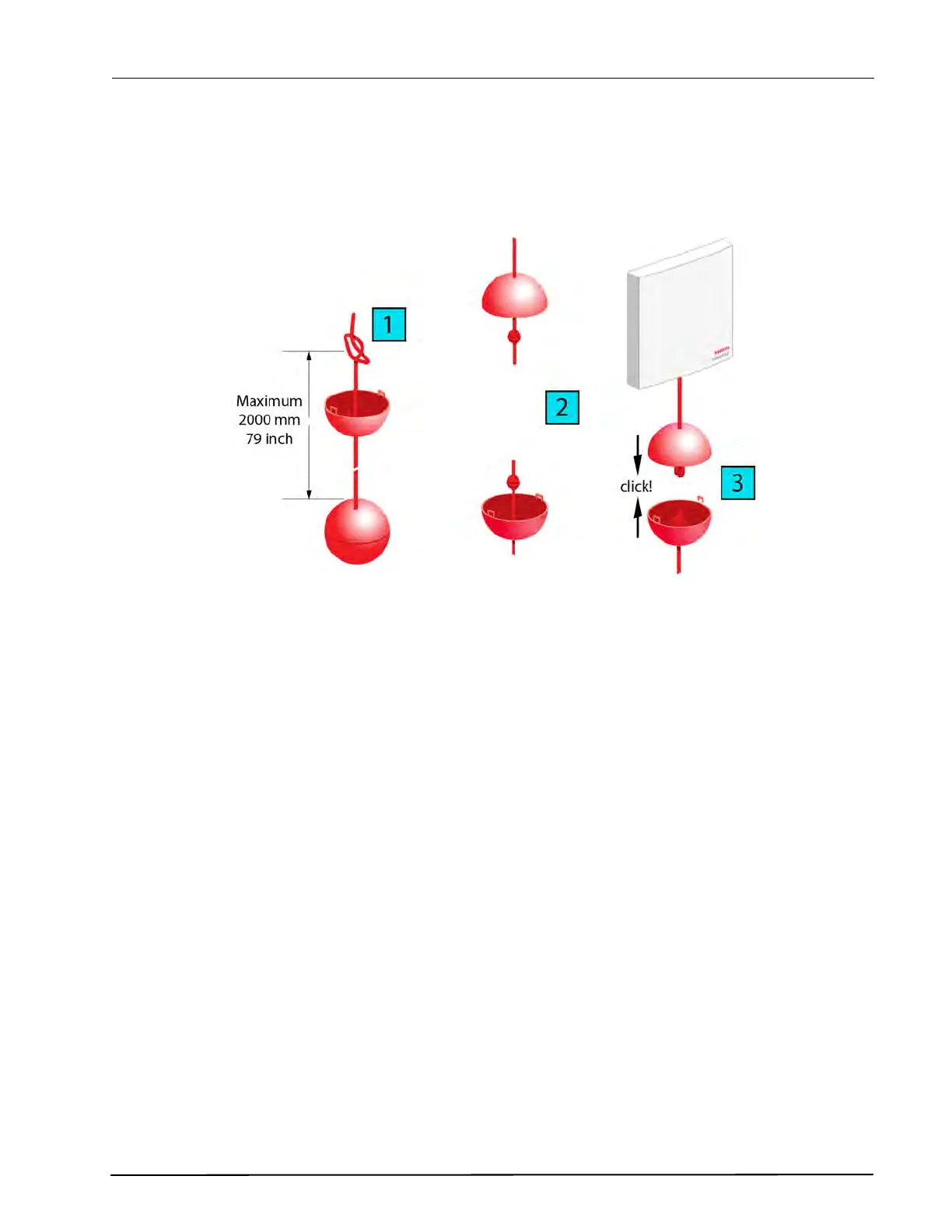

Figur
e 127. Assembling and attaching the pull cor
d
97
99
