SmartROC D65 T4F 5 Controls
40 No: 713944459.6 en
Levers for rod handling (RHS) and suction hood/drill-steel support/break
table

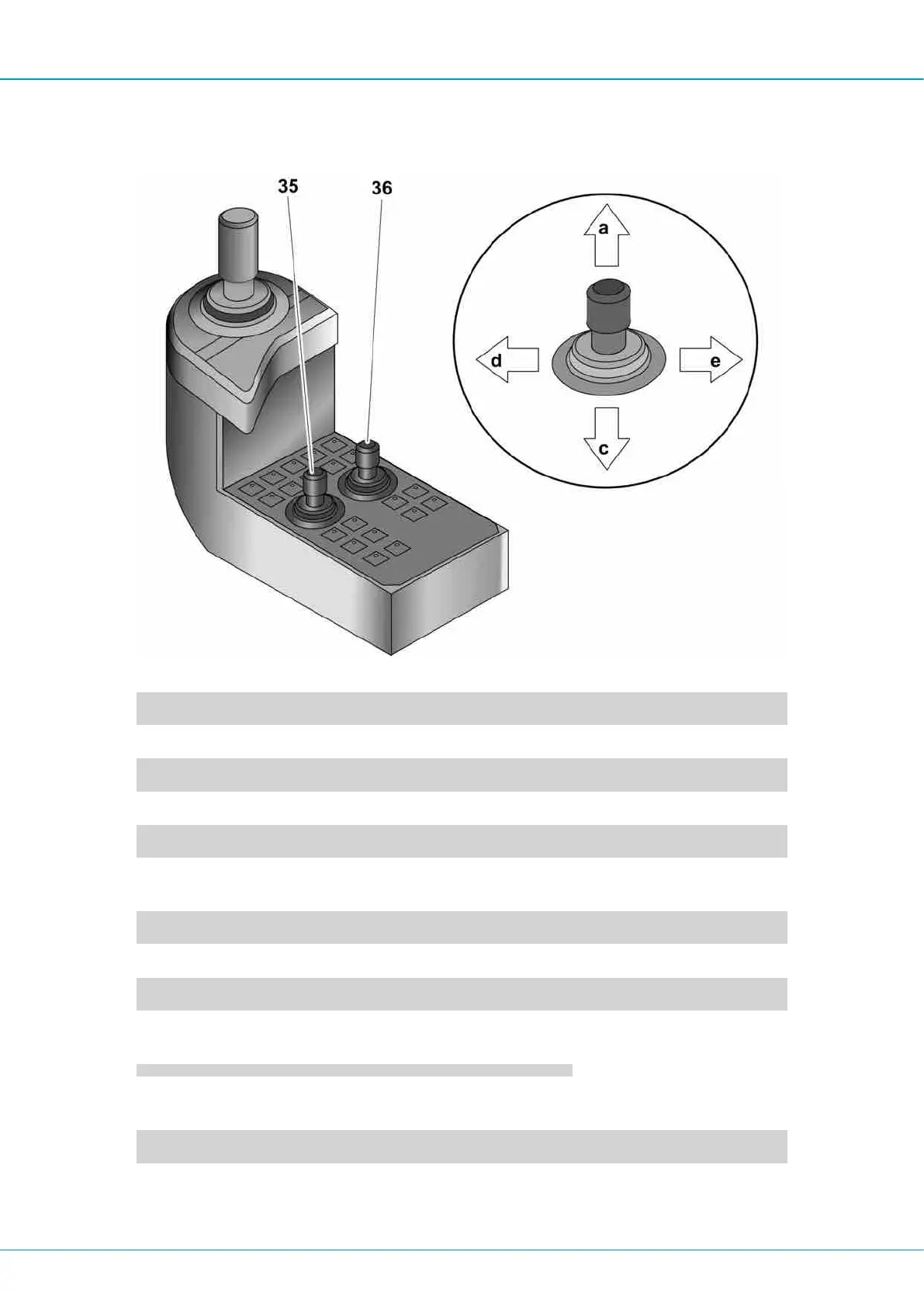

Levers for rod handling and suction hood (left control panel).
35 Lever for Rod handling
a Rod to carousel
b Neutral (lever in centre position)
c Rod to drill centre
d Carousel rotation (Clockwise)
e Carousel rotation (Anticlock-
wise)
Push button on top of lever
Depressed: Open gripper
Not depressed: Closed grip-
per
36 Suction hood/Drill-steel sup-
port, button 3 activated
a Upper drill-steel support (closed)
b Neutral (lever in centre position)
