STwrench User Guide Pset
9836 4134 01 Edition 2.9 115 (326)

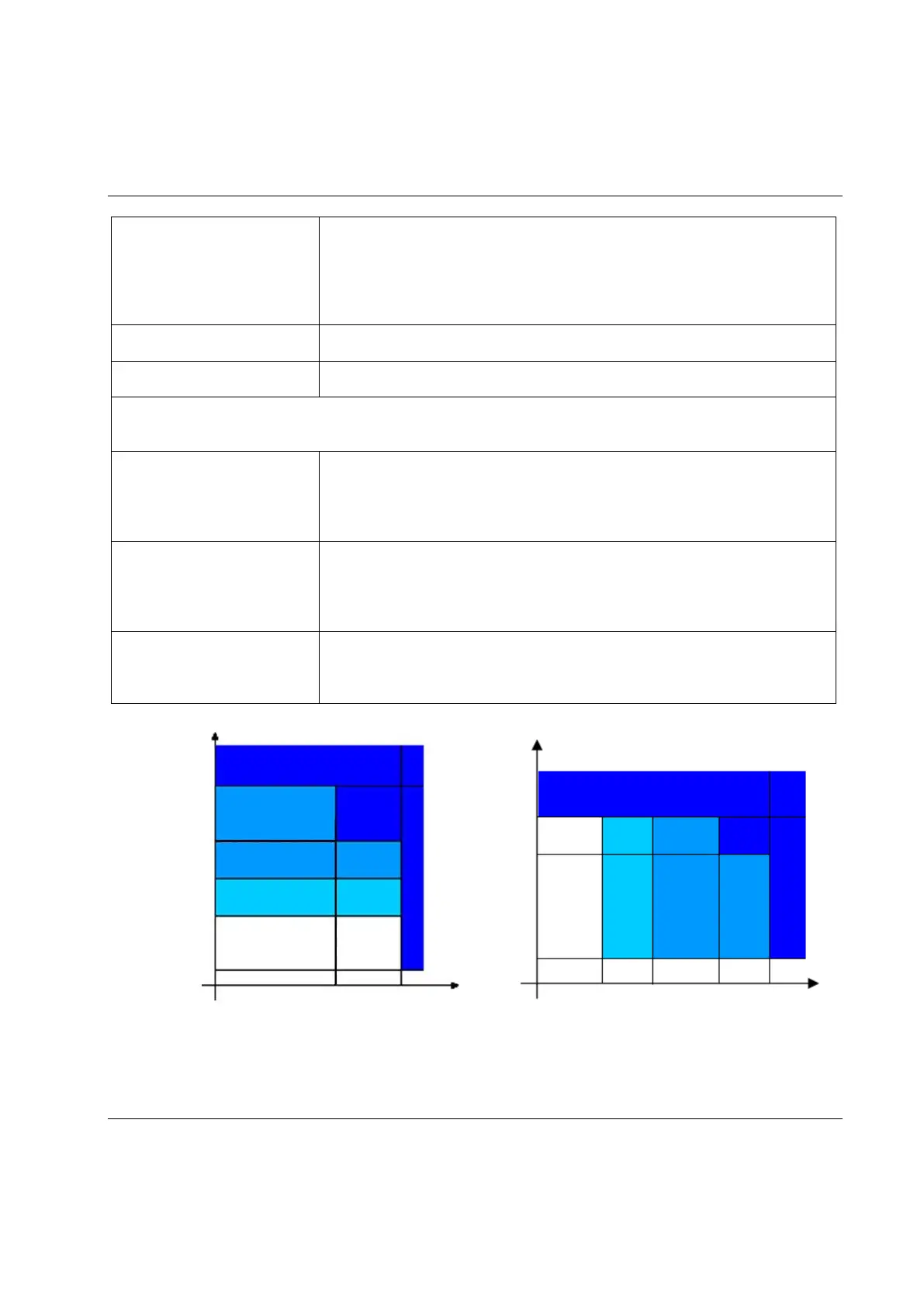

Angle result between Cycle Start and Min. Torque, or torque between Min.
Torque and Max. Torque with angle under the Min. Angle.
If Measure torque/Angle at
is set to Angle peak, the Start Final Angle value is
used instead of the Cycle Start.
Torque and angle results within maximum and minimum limits.
Torque result over Max. Torque or angle over Max. Angle.
NOTE: The result LED indicating the result of the tightening is activated only when the tightening operation is
completed.
Torque over 1
st
percentage (if Torque Peak is selected in the torque
parameter of the Pset definition).
Angle over 1
st
percentage (if Angle Peak is selected in the torque parameter
of the Pset definition).
Second row of yellow LEDs
Torque over 2
nd
percentage (if Torque Peak is selected in the torque
parameter of the Pset definition).
Angle over 2
nd
percentage (if Angle Peak is selected in the torque parameter
of the Pset definition).
Torque and angle within the minimum and maximum limits; torque and angle
having reached the target value.
It is also activated if torque or angle goes over the maximum value.
Target Torque
Max. Angle
Target Angle
Max. Torque
Cycle start
