STwrench User Guide Job
9836 4134 01 Edition 2.9 145 (326)
8.3 Running a Job
Once the Job has been created on the wrench map area in ToolsTalk BLM, it is automatically sent to the
STwrench.

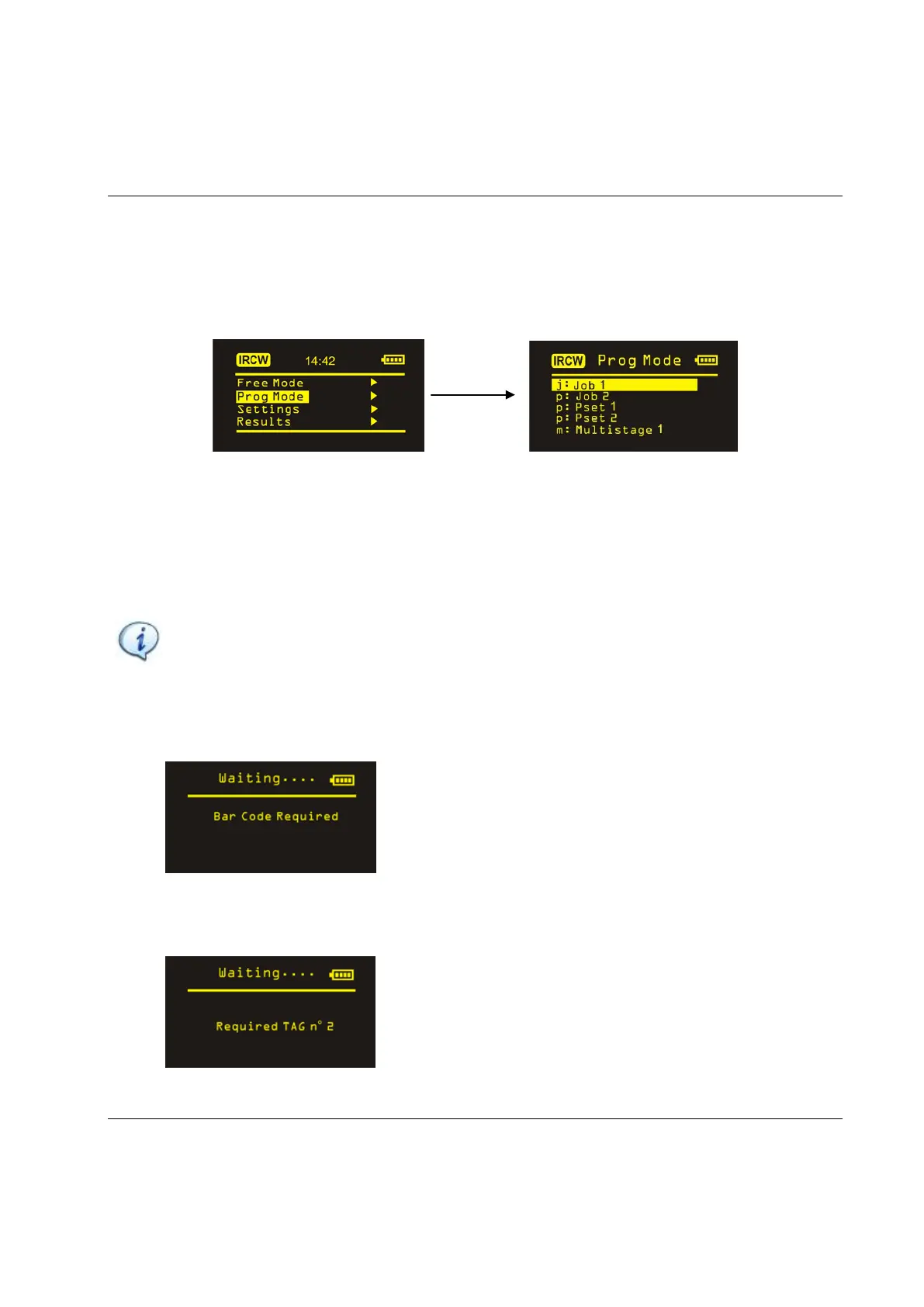

To execute the Job, select Prog. Mode from the main menu of the STwrench:
Select the Job from the list of the available Jobs and click on the OK button on the wrench keyboard to
start Job execution.
If the Job is defined as Forced, the sequence of the Pset/Multistage is performed automatically; if the Job
is defined as Free, individual Psets/Multistages making up the job can be selected via the wrench
keyboard, the Tag recognition function or the barcode reading.
See the chapter Setting the source for Pset/Multistage/Job selection.
NOTE: If the source program is set for Bar code or TAG, is not possible to select a job.
If the barcode reading is required for the Pset or Multistage composing the job, the following
message is shown to indicate that the bar code is required:
If a specific end-fitting tool number is required for the Psets/Multistages making up the job, the
following message is shown in the event of the specified tool not being inserted into the wrench
head:
