STwrench Settings STwrench User Guide

162 (326) 9836 4134 01 Edition 2.9

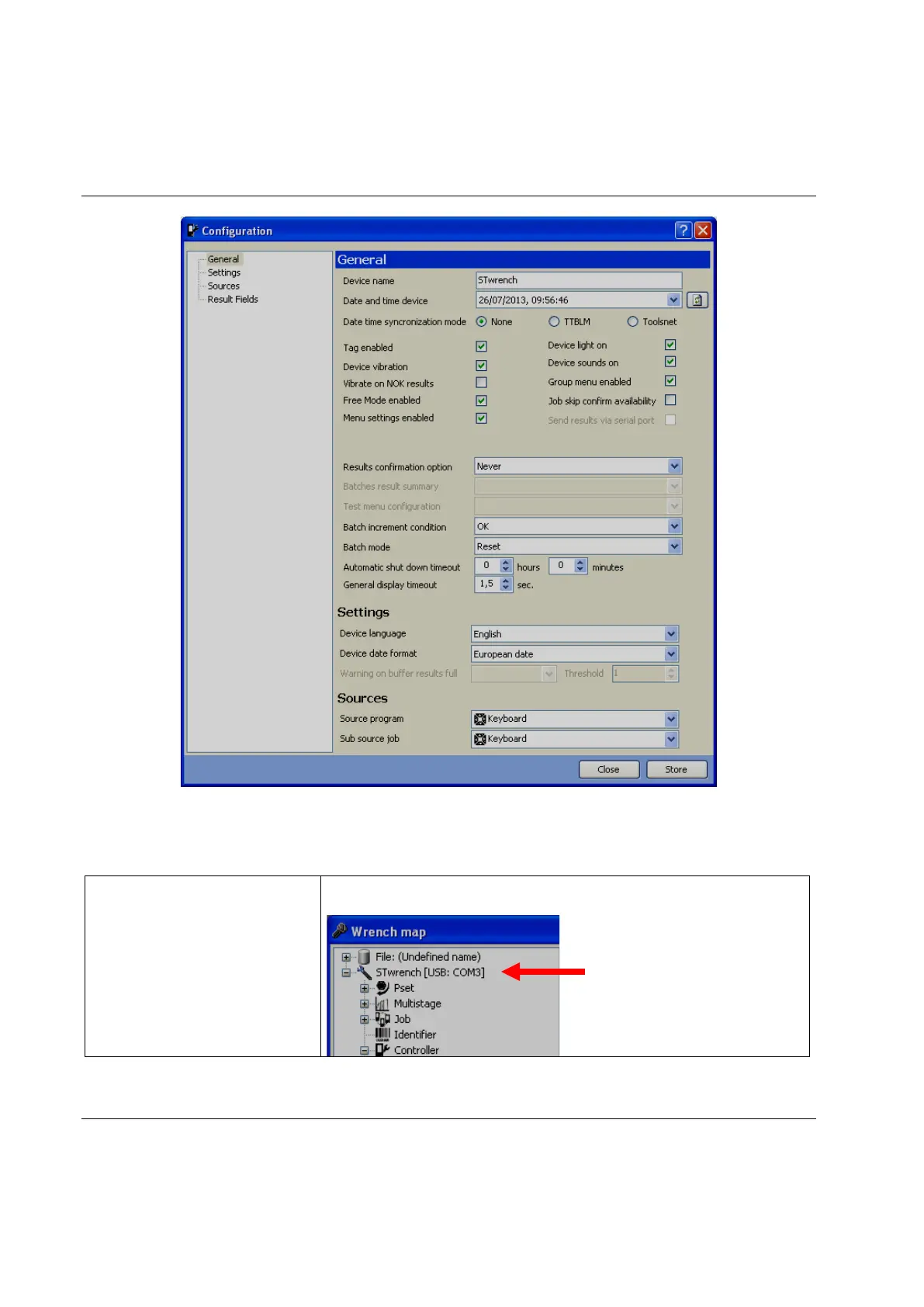

10.2.1.1 Settings STwrench name

Device Name

Name which is reported in the Wrench Map.

Main Page
