STwrench User Guide Real Time Traces
9836 4134 01 Edition 2.9 211 (326)
After each test the traces is minimized on the right area of the window, and the new trace is shown.
Click on the icon to the right to review the traces. After 30 traces are shown, a new real time traces
window is automatically created to display the next 30 traces, and so on.

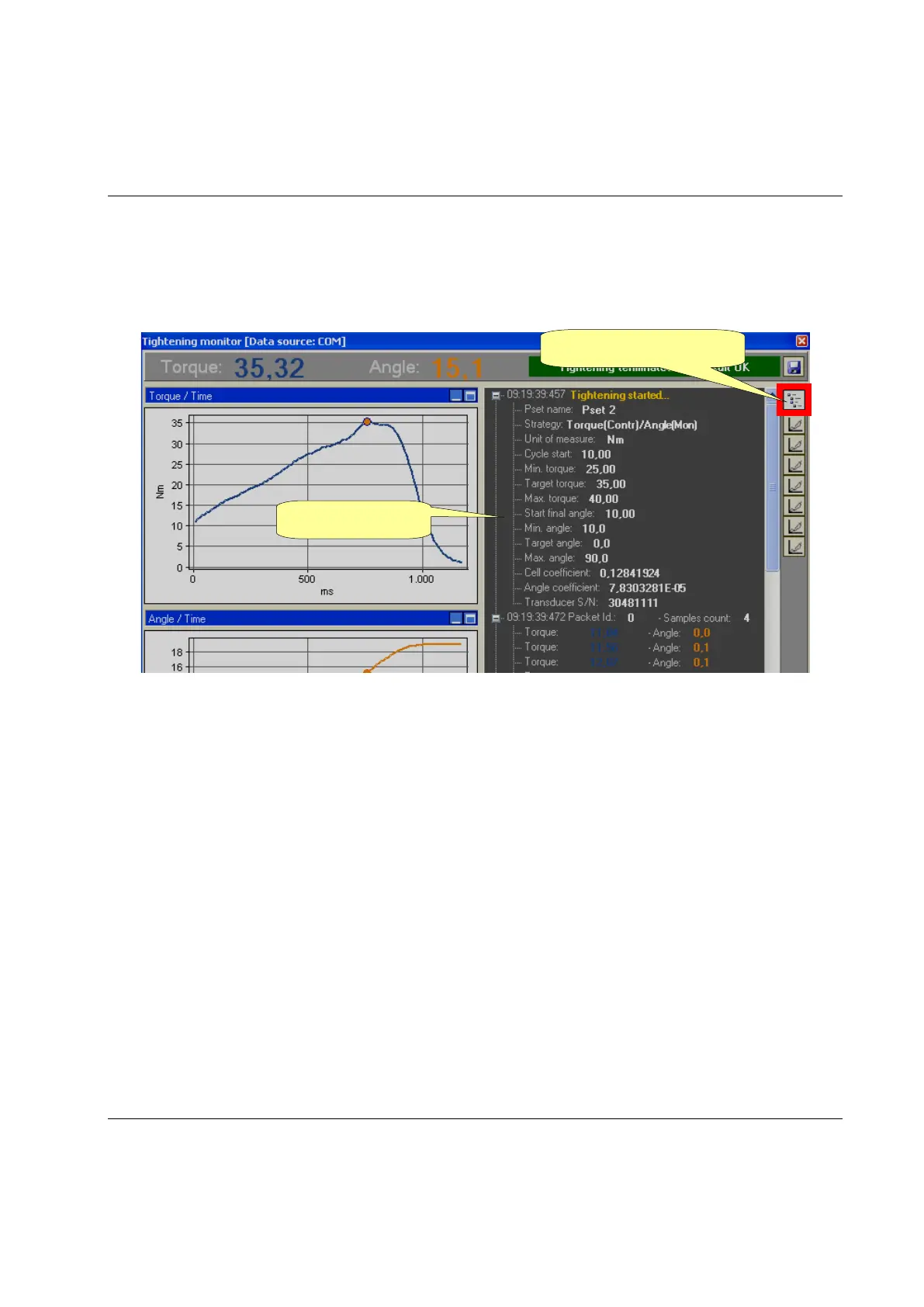

Click on the show tightening data icon to view more information of the test:
For each tightening strategy the torque/time, angle/time and torque/angle traces, depending from the
STwrench Controller Setup, can be shown:
• In real time: The trace is drawn in real time during the tightening
• Hidden: The trace is not shown
• At the end of the tightening: The trace is not shown during the tightening. When the tightening is
completed, the trace is shown.
It is also possible to set the real time trace to be shown in full screen.
The torque/time, angle/time and torque/angle traces can be expanded by clicking on the expand icon. The
trace is shown in a new window (angle/time and torque/angle are available only for smartHEAD with
gyroscope):
