STwrench User Guide Working with Power Focus
9836 4134 01 Edition 2.9 225 (326)

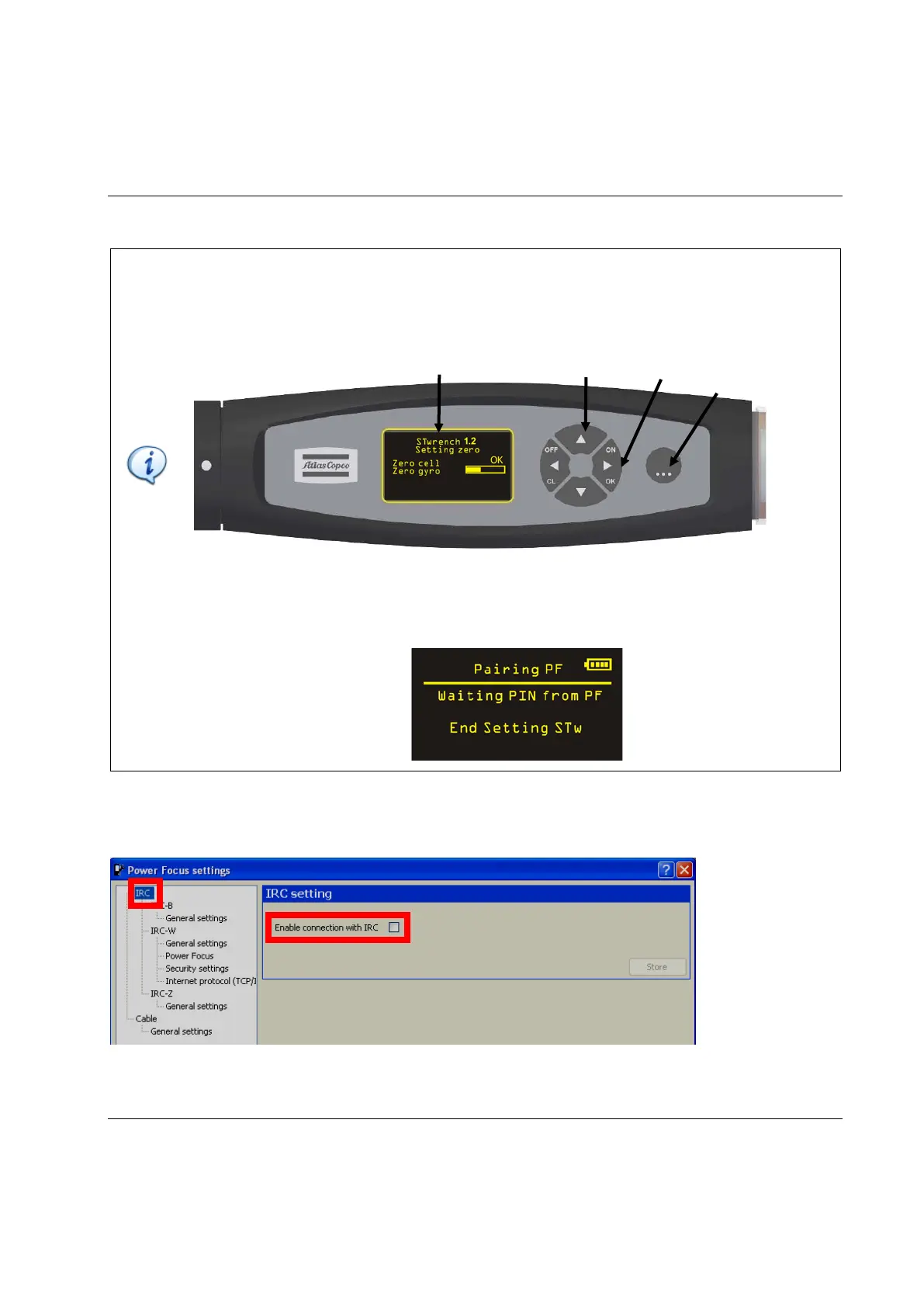

- Click on the Start pairing procedure command
NOTE: It is possible to start the pairing procedure directly from the STwrench: Switch on
the STwrench, and press the DOWN, RIGHT and BARCODE buttons in sequence during the
cell and gyroscope zero automatic adjustment.
- Within 60 seconds, start the pairing procedure on Power Focus
- If the procedure is successful, the STwrench displays the following message:
In the IRC menu, enable the Enable connection with IRC flag (not necessary if the pairing procedure has
been performed directly by the STwrench keyboard):
Disconnect the STwrench from the ToolsTalk BLM.
