System Overview STwrench User Guide
48 (326) 9836 4134 01 Edition 2.9
• For ToolsNet connection: See the chapter Establishing Communication between STwrench and
ToolsNet for more information. For ToolsNet connection with QATnode T, see the chapter
Working with the QATnode
• For Power Focus connection: See the section Interface with IRC-W Radio Module in the chapter
Working with Power Focus.
• For QATnode connection: See the chapter Working with the QATnode
• For API connection: See the chapter Working with the API
NOTE: If the IRC-W module is not marked as “dual band”, it does not support the 5 GHz band.

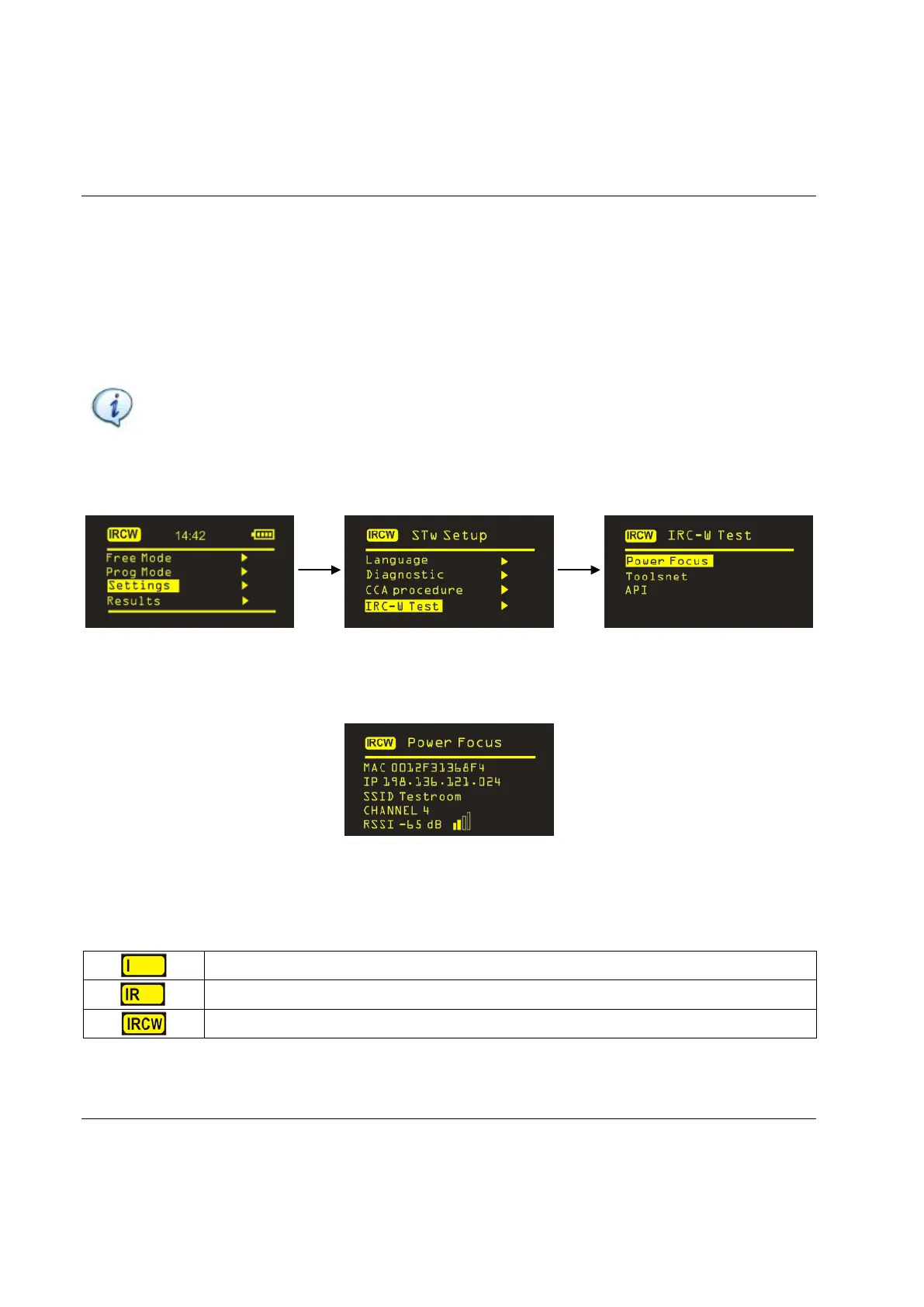

A test function is provided to verify the IRC-W signal level. Select Settings → IRC-W Test, and select the
device to which the STwrench has to connect:
The module network parameters must be set properly by ToolsTalk BLM.
The following window shows the network parameters (set by ToolsTalk BLM in the IRC-W Module) and
the RSSI (received signal strength indicator) level:
The letters of the IRC-W logo are shown in sequence:
During the initialization process, the IRC-W icon is shown in four steps:
Module IRC-W detected.
Module IRC-W configured.
Module connected.
