User's Manual 128 Document #: LTRT-27045
Mediant 1000B Gateway & E-SBC
Item # Description
 Red: No network connectivity through port (e.g., cable disconnected).
To refresh the status indication, click the Refresh Network View button (described below
in Item #5).
To open the Physical Ports table, click any port icon, and then from the drop-down menu,
choose View Physical Port List. You can then view and edit all the ports in the table.
5 If you keep the Network view page open for a long time, you may want to click the
Network View button to refresh the connectivity status display of the Ethernet ports.
12.2 Configuring Physical Ethernet Ports
The Physical Ports table lets you configure the device's Ethernet ports. This includes
configuring port speed and duplex mode (half or full), and a brief description of the port.
The table also displays the status of the port as well as the port group (Ethernet Group) to
which the port belongs. For more information on Ethernet Groups, see ''Configuring
Ethernet Port Groups'' on page 130.

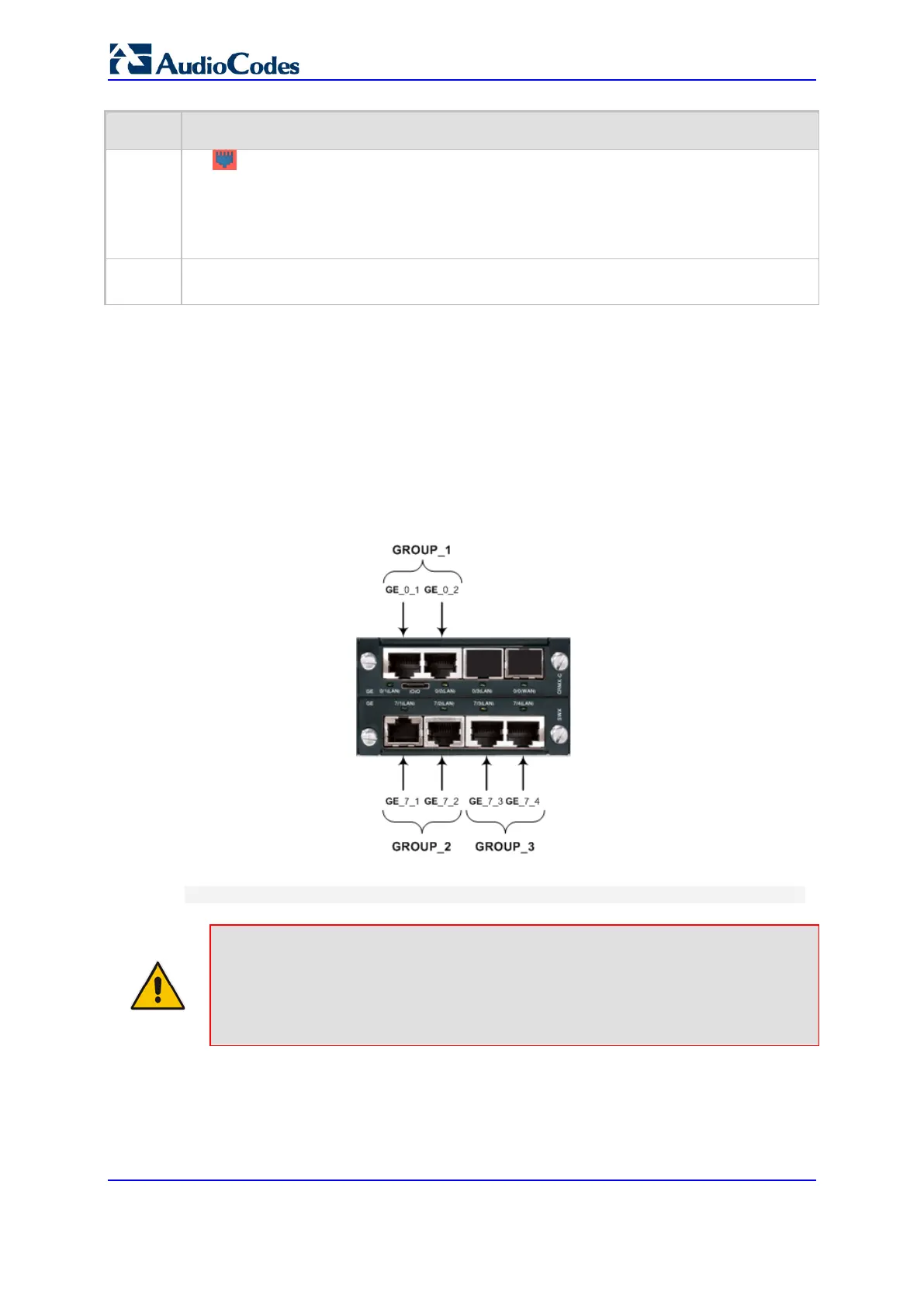

The names of the ports displayed in the device's management tools (e.g., Web interface)
are different to the labels of the physical ports on the chassis. The figure below shows the
mapping between the two:
You can also view the mapping of the ports using the following CLI command:
# show network physical-port
Note:
• All LAN ports (including those of the optional SWX Expansion module) have the
same MAC address, which is the MAC address of the device.
• Each Ethernet port must have a unique VLAN ID in scenarios where the ports are
connected to the same switch.
The following procedure describes how to configure Ethernet ports through the Web
interface. You can also configure it through ini file (PhysicalPortsTable) or CLI (configure
network > physical-port).
