User's Manual 210 Document #: LTRT-27045

Mediant 1000B Gateway & E-SBC

 To enable and configure SRTP:

1. Open the Media Security page (Setup menu > Signaling & Media tab > Media folder

> Media Security).

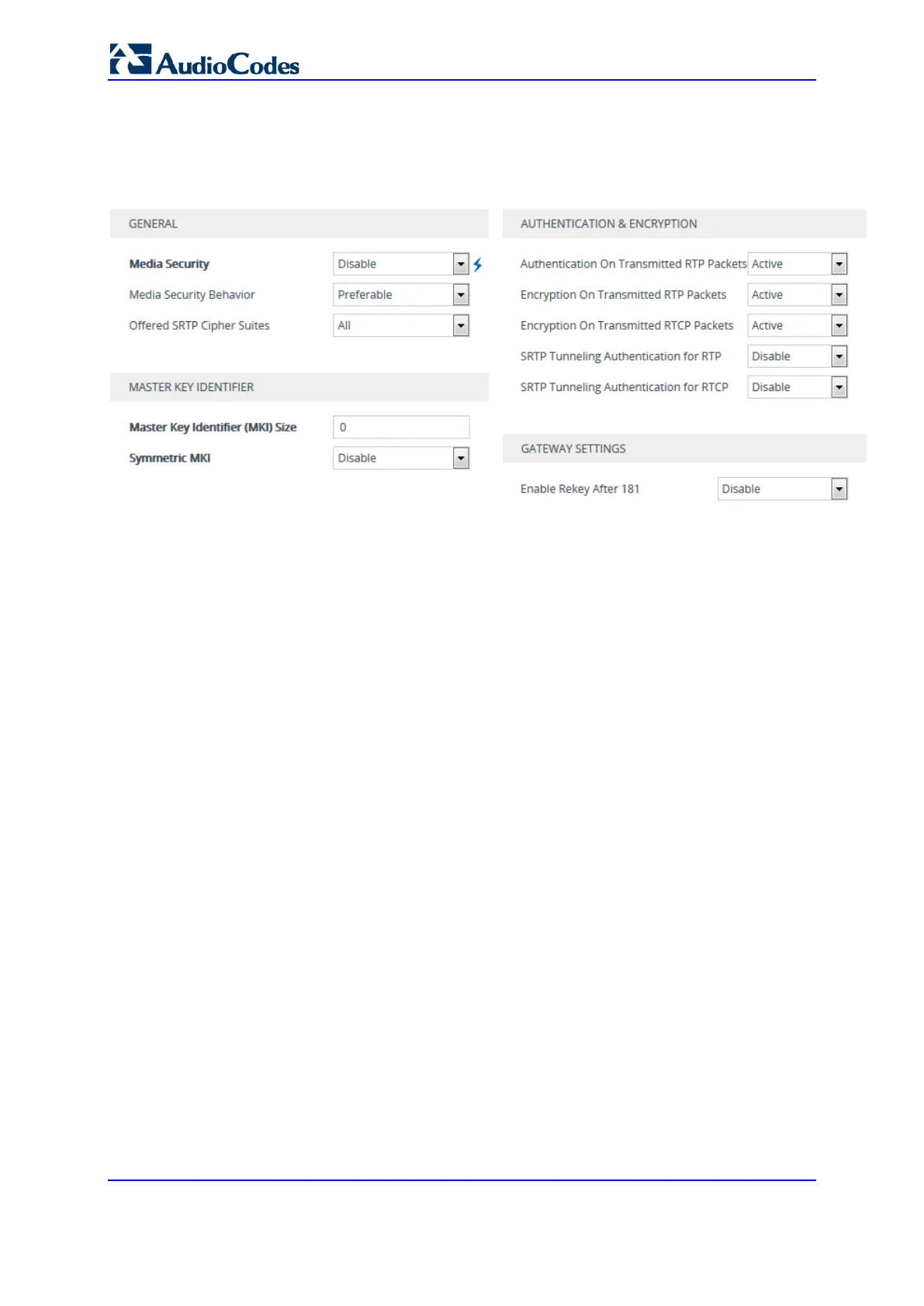

Figure 14-18: Configuring Media Security

2. From the 'Media Security' drop-down list (EnableMediaSecurity), select Enable to

enable SRTP.

3. Configure the other SRTP parameters as required.

4. Click Apply, and then reset the device with a save-to-flash for your settings to take

effect.
