Version 7.2 335 Mediant 1000B Gateway & E-SBC
User's Manual 17. Control Network

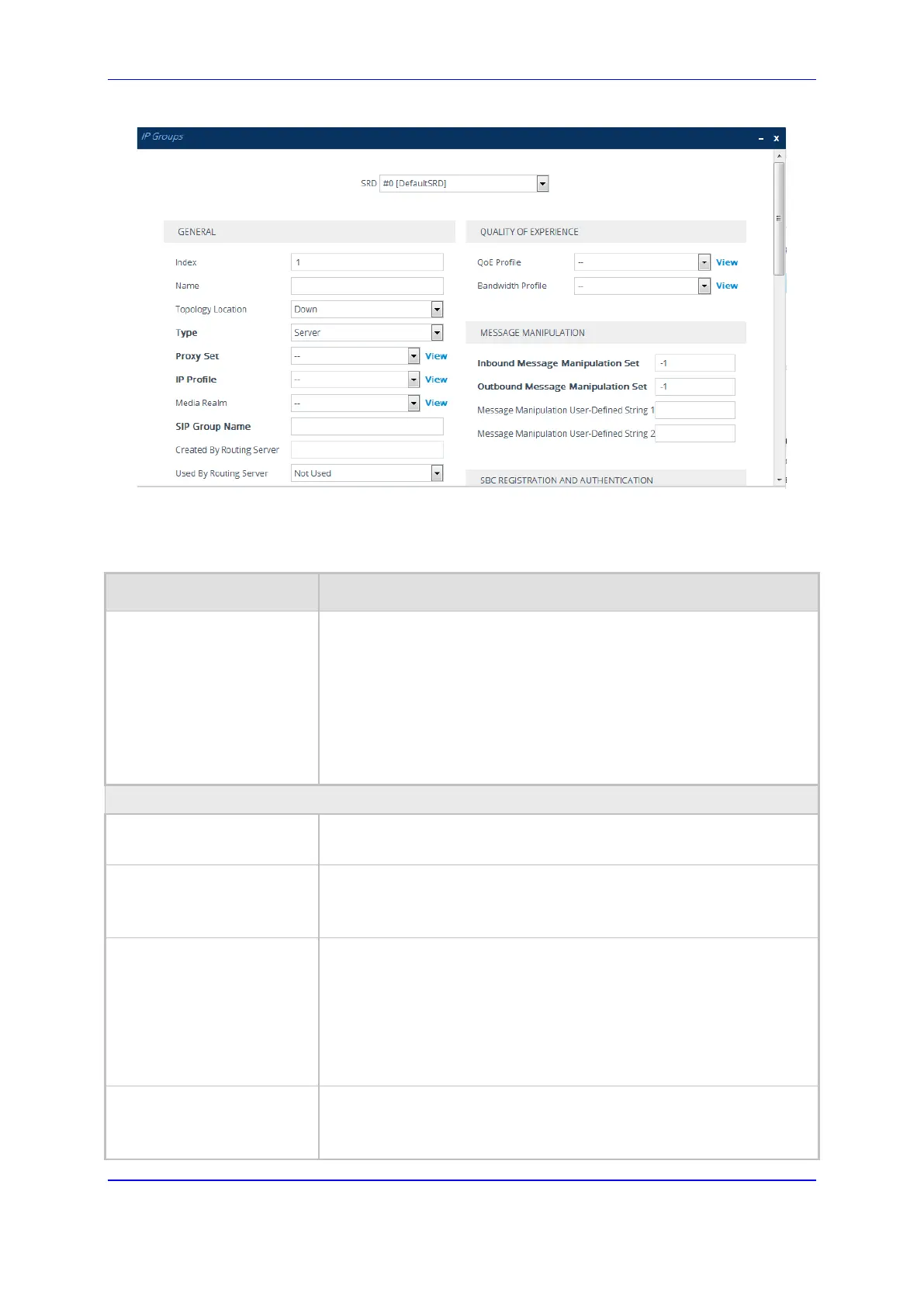

3. Configure an IP Group according to to the parameters described in the table below.
4. Click Apply.
Table 17-6: IP Groups Table Parameter Descriptions
Parameter Description
SRD
srd-name
[IPGroup_SRDName]
Assigns an SRD to the IP Group.
If only one SRD is configured in the SRDs table, the SRD is assigned
by default. If multiple SRDs are configured in the SRDs table, no value
is assigned by default and you must assign one.
To configure SRDs, see Configuring SRDs on page 317.
Note:
 The parameter is mandatory.
 For the parameter to take effect, a device reset is required.
General
Index
[IPGroup_Index]
Defines an index for the new table row.
Note: Each row must be configured with a unique index.
Name
name
[IPGroup_Name]
Defines an arbitrary name to easily identify the row.
The valid value is a string of up to 40 characters.
Note: Each row must be configured with a unique name.
Topology Location
topology-location
[IPGroup_TopologyLocation]
Defines the display location of the IP Group in the Topology view.
 [0] Down = (Default) The IP Group element is displayed on the
lower border of the view.
 [1] Up = The IP Group element is displayed on the upper border of
the view.
For more information on the Topology view, see ''Building and Viewing
SIP Entities in Topology View'' on page 355.
Type
type
[IPGroup_Type]
Defines the type of IP Group:
 [0] Server = Applicable when the destination address of the IP
Group (e.g., ITSP, Proxy, IP-PBX, or Application server) is known.
To Next Page
