User's Manual 356 Document #: LTRT-27045
Mediant 1000B Gateway & E-SBC
Item # Description
You can use demarcation to visually separate your voice network to provide a clearer
understanding of your topology. This is especially useful for IP Groups, SIP Interfaces, and
Media Realms, where you can display them on the top or bottom border of the Topology
view (as shown in the figure below for callouts #1 and #2, respectively). For example, on
the top border you can position all entities relating to WAN, and on the bottom border all
entities relating to LAN.

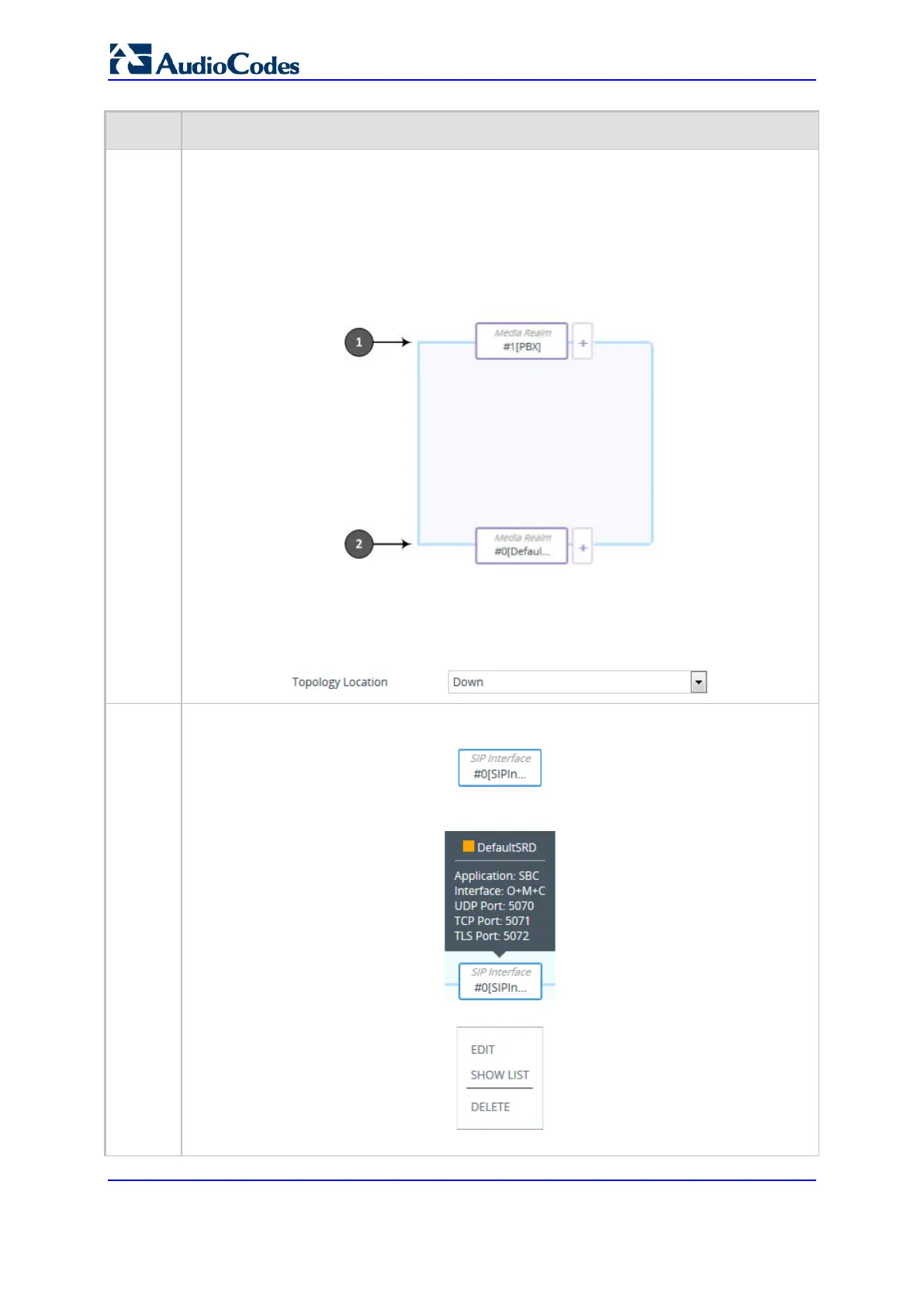

Figure 17-12: Display Location in Topology View
By default, configuration entities are displayed on the bottom border. To define the
position, use the 'Topology Location' parameter when configuring the entity, where Down
is the bottom border and Up the top border:
Figure 17-13: Configuration Postion in Topology View
2 Configured SIP Interfaces. Each SIP Interface is displayed using the following "SIP
Interface"-titled icon, which includes the name and row index number:
If you hover your mouse over the icon, a pop-up appears displaying the following basic
information (example):
If you click the icon, a drop-down menu appears listing the following commands:

Opens a dialog box in the SIP Interfaces table to modify the SIP Interface.
