Version 7.2 583 Mediant 1000B Gateway & E-SBC
User's Manual 27. Analog Gateway
The following procedure describes how to configure caller ID through the Web interface.
You can also configure it through ini file (CallerDisplayInfo) or CLI (configure voip >
gateway analog caller-display-info).
 To configure caller ID:
1. Open the Caller Display Information table (Setup menu > Signaling & Media tab >
Gateway folder > Analog Gateway > Caller Display Information).

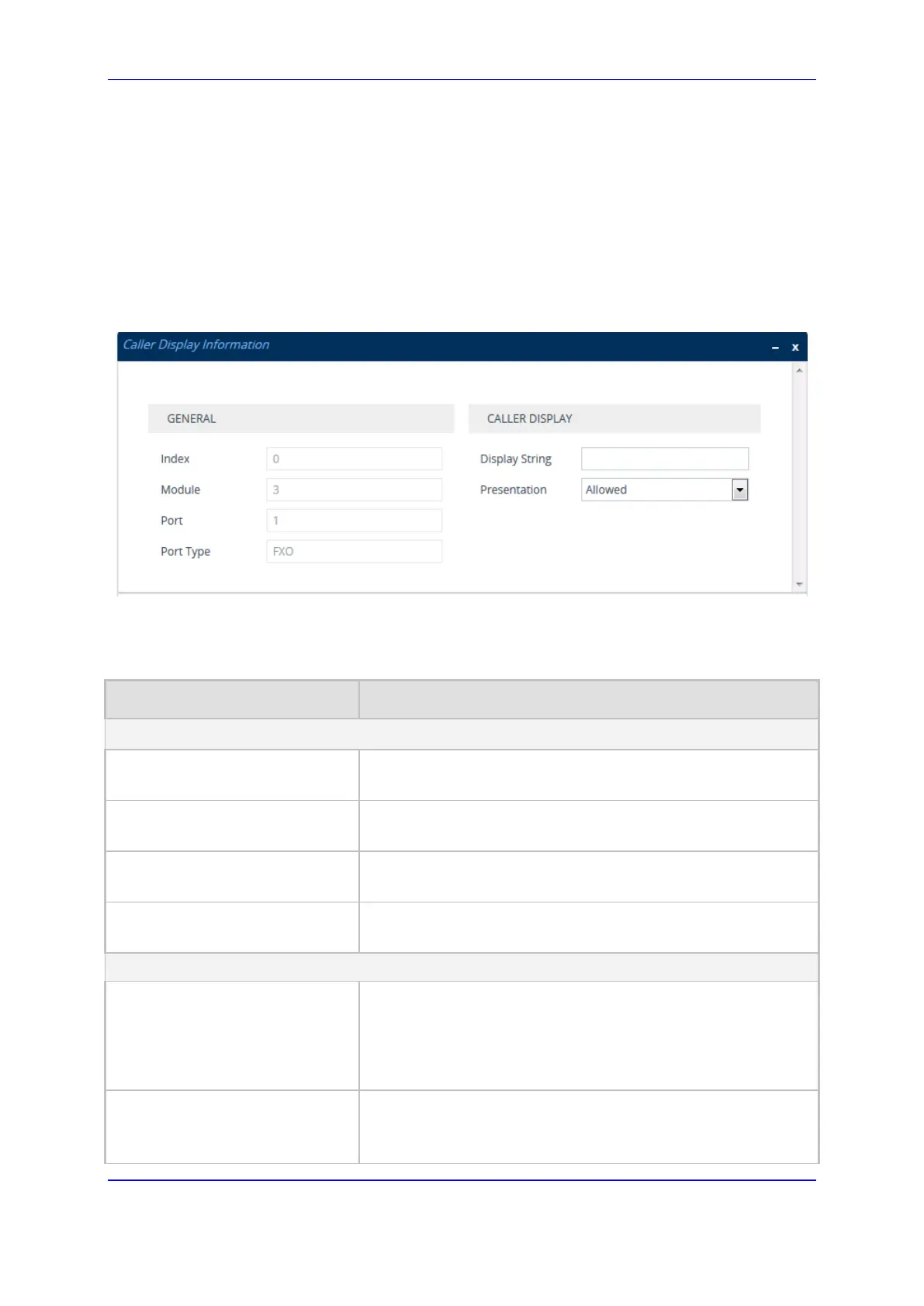

2. Select the row corresponding to the port that you want to configure, and then click
Edit; the following dialog box appears:
3. Configure caller ID per port according to the parameters described in the table below.
4. Click Apply.
Table 27-3: Caller Display Information Table Parameter Descriptions
Parameter Description
General
Index
[CallerDisplayInfo_Index]
(Read-only) Displays the index number of the table row.
Module
[CallerDisplayInfo_Module]
(Read-only) Displays the module number on which the port is
located.
Port
[CallerDisplayInfo_Port]
(Read-only) Displays the port number.
Port Type
[CallerDisplayInfo_PortType]
(Read-only) Displays the port type (FXS or FXO).
Caller Display
Display String
display-string
[CallerDisplayInfo_DisplayString]
Defines the Caller ID string.
The valid value is a string of up to 18 characters.
Note: If you configure the parameter to "Private" or
"Anonymous", Caller ID is restricted and the settings of the
'Presentation' parameter is ignored.
Presentation
presentation
[CallerDisplayInfo_IsCidRestricted]
Enables the sending of the caller ID string.
 [0] Allowed = The caller ID string is sent when a Tel-to-IP call
is made.
