4 Indications
4.1 Status indications in the display
The status indications on the display locally indicate the current operation
states in plain text or as bar chart.
Table of contents:
4.1.1 Status indication S0/S6 - operation
4.1.2 Status indication S4 - torque
Further information on this topic:
For status indications regarding faults and warnings, refer to pages 91 et seqq.
4.1.1 Status indication S0/S6 – operation
Information For actuators equipped with process controllers, status indication
S6 is dis-
played instead of status indication
S0 in selector switch position REMOTE.
The description below applies to both indications (
S0 and S6).

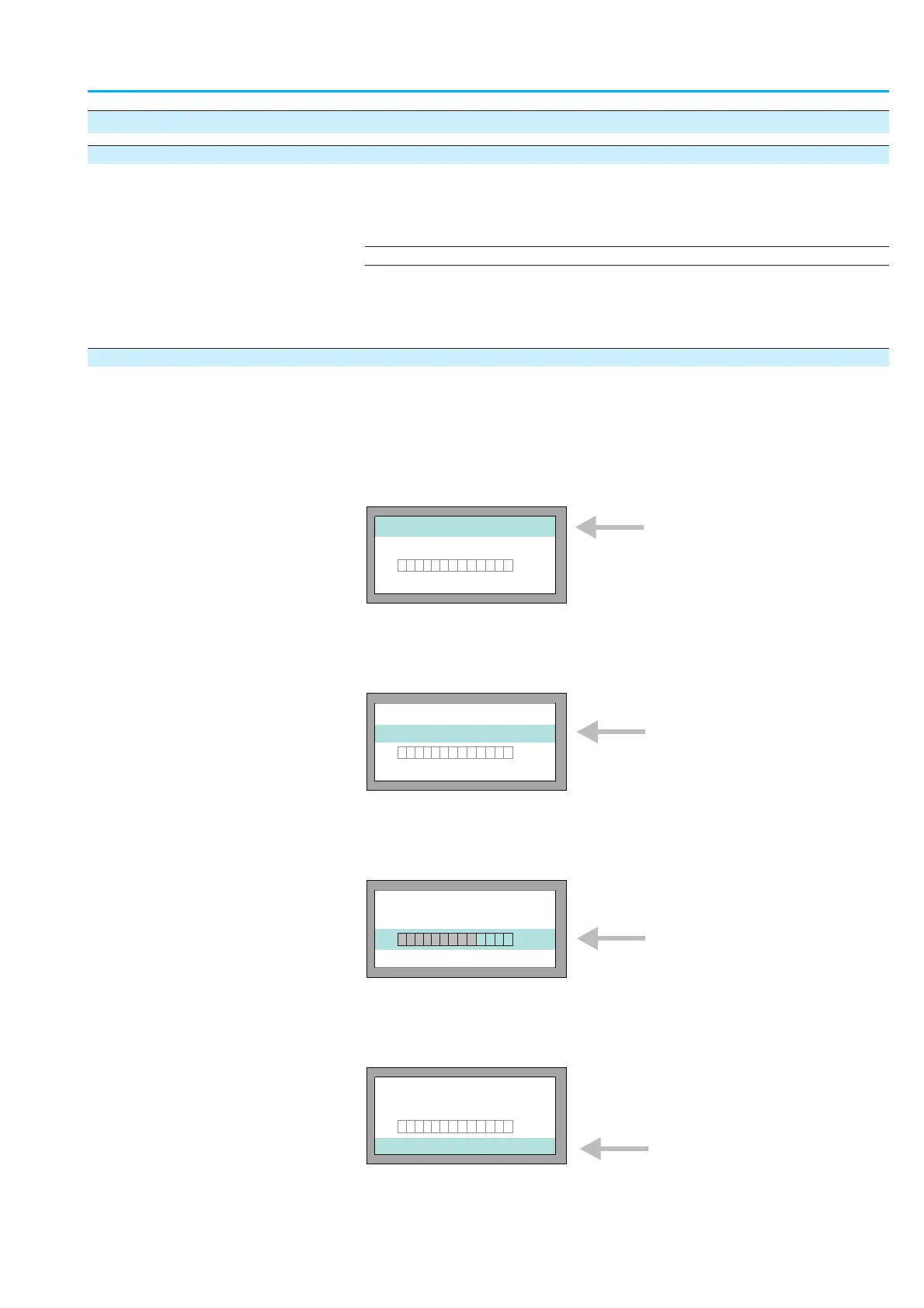

Operation mode display Line 1 indicates the current operation mode (LOCAL MODE, OFF,
SETPOINT MODE, ...)
Operation command/
setpoint display
Line 2 indicates currently incoming operation commands
(OPEN, STOP, CLOSE) or the setpoints E1 or E7 (for actuators equipped
with positioner/process controller) in % of the total travel.
Valve position display Line 3 indicates the valve position in % of the travel.
This indication is only available if the actuator is equipped with a position
transmitter.
0 % = Actuator is in end position CLOSED
100 % = Actuator is in end position OPEN
End position/running indication Line 4 indicates the current actuator status.
15
Actuator controls
Manual AUMATIC AC 01.1/ACExC 01.1 Profibus DP


LOCAL MODE S0
OPEN
E2 100 %
RUNNING OPEN


LOCAL MODE S0
OPEN
E2 100%
RUNNING OPEN


LOCAL MODE S0
OPEN
E2 100%
RUNNING OPEN


LOCAL MODE S0
OPEN
E2 100 %
RUNNING OPEN
