2 Identification
2.1 Name plate

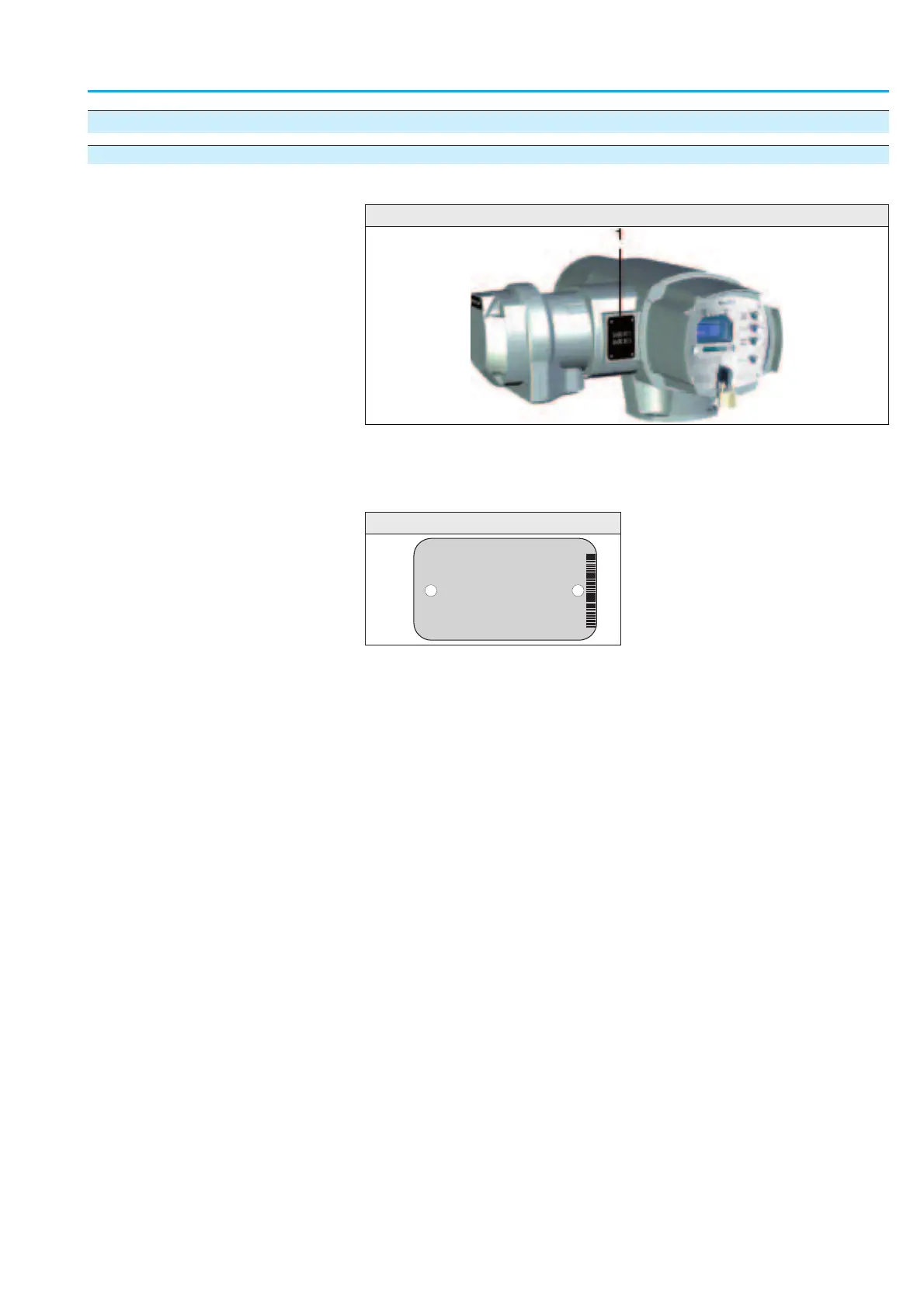

Each device is equipped with a name plate (figure 1).
Identification data on the controls’ name plate:
Type and size These instructions apply to the following controls types:
Type: AC = AUMATIC actuator controls
Size: 01.1
Commission number An order-specific commission number is assigned to each device. You can
use this number to download the wiring diagram, inspection records and fur-
ther information from the Internet (http://www.auma.com).
Wiring diagram/control Controlling the actuator controls is performed via a Profibus DP interface,
if the 11th position in the ACP wiring diagram contains the letter S, T, U, R,
or P. Example: ACP 11F1-2M0—S000.
The actuator controls are designed for the Non-Intrusive version (refer also
to page 8), if the 7th position in the ACP wiring diagram contains the figure
M, e.g.: ACP 11F1-2M0-S000.
7
Actuator controls
Manual AUMATIC AC 01.1/ACExC 01.1 Profibus DP
1 Type and size of the controls
2 Commission number
3 Wiring diagram/control
Figure 1
1 Name plate controls
auma
AC 01.1
Com No: 1309595
ACP M S:
P:1,5kW
No: 0902MA97286
KMS: TP180/001
11F1-2 0-- 000
3 ~ 400V IP67
Control: RS 485
1
2
3
Figure 2
