AUMA Aumatic AC 01.1 User Manual

È
Description of indications in line 4:
RUNNING OPEN
Actuator runs logically OPEN (remains set during operation pauses).
RUNNING CLOSE
Actuator runs logically CLOSE (remains set during operation pauses).
OPEN POSITION
End position OPEN reached.
CLOSED POSITION
End position CLOSED reached.
SETPOINT POSITION
Setpoint (modulating actuators only).
È
Description of the fault signals:
See page 91.

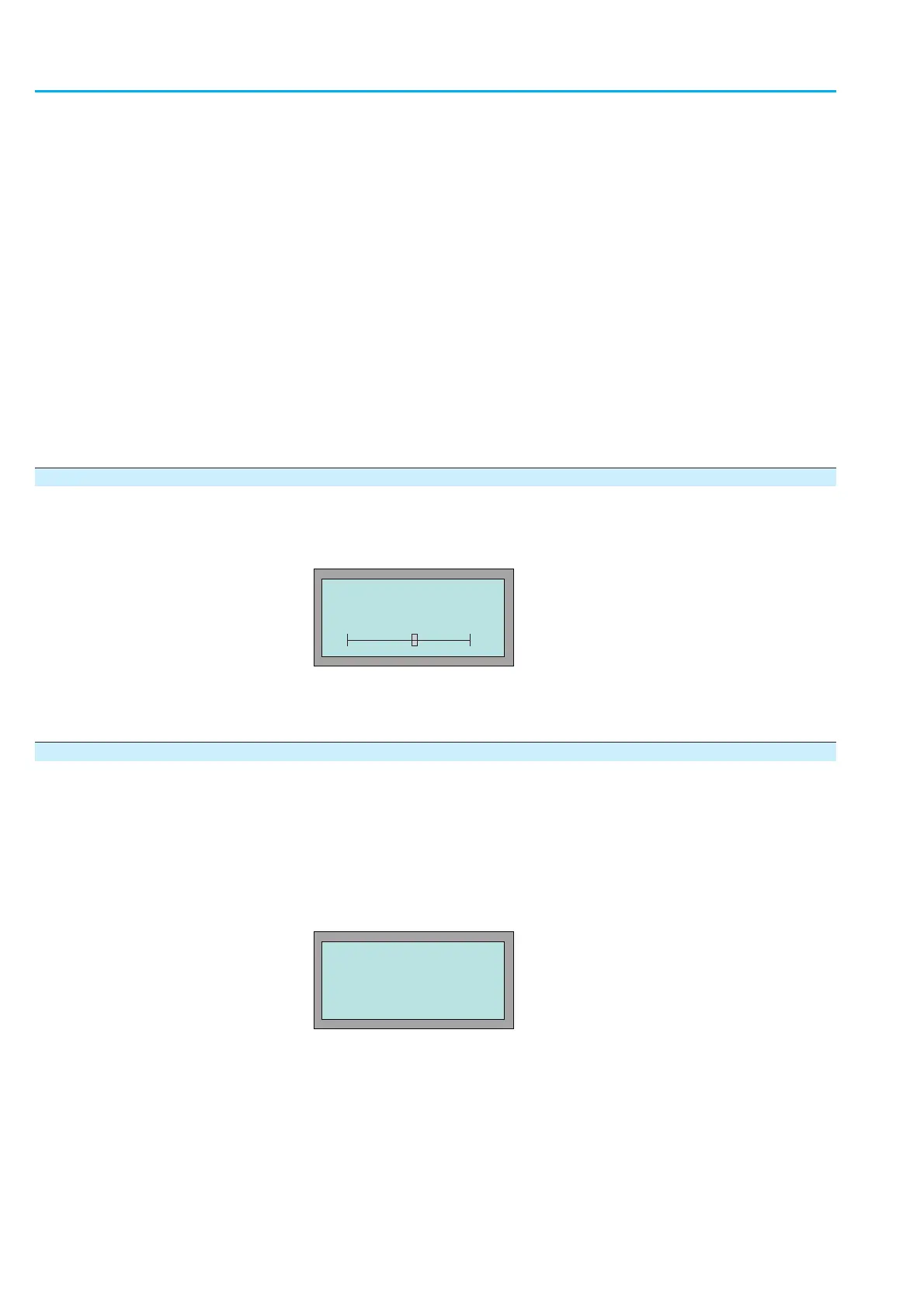

4.1.2 Status indication S4 – torque
This indication is only available if the actuator is equipped with an MWG
(magnetic limit and torque transmitter); refer to page 8.
A deflection to the left side indicates torque in direction CLOSE.
A deflection to the right side indicates torque in direction OPEN.
Example: SA 07.5 with 20 – 60 Nm
100 % corresponds to 60 Nm of the nominal torque.
50 % corresponds to 30 Nm of the nominal torque.
4.2 Torque indication: edit
The torque value can be displayed in percent, Newtonmeter (Nm) or in
Lbs/ft.
Æ
Via the menu to parameter:
MAIN MENU (M0)
SETTINGS (M1)
LOCAL CONTROLS (M13)
TORQUE INDICATION (M1317)
Default value: NEWTONMETER
È
Description of the parameter settings:
PERCENT
Indication of the nominal torque in percent
NEWTONMETER
Indication in Nm
LBS.FT.
Indication in Lbs./ft.
16
Actuator controls
AUMATIC AC 01.1/ACExC 01.1 Profibus DP Manual


TORQUE S4
TORQUE 50 %
EDIT M1317
TORQUE INDICATION
NEWTONMETER


:EDIT ¿:OK C:ESC
