7.7.10 Travel limitation
If necessary, the travel can be limited in direction OPEN and/or CLOSE.
This prevents the end position(s) OPEN and/or CLOSED from being
approached in modulating duty. The actuator stops when reaching the set
position limit value. In operation mode LOCAL or REMOTE MODE, this limi
-
tation is not active. The valve can then be run into the end positions either
via the local controls or the remote control commands OPEN - CLOSE.

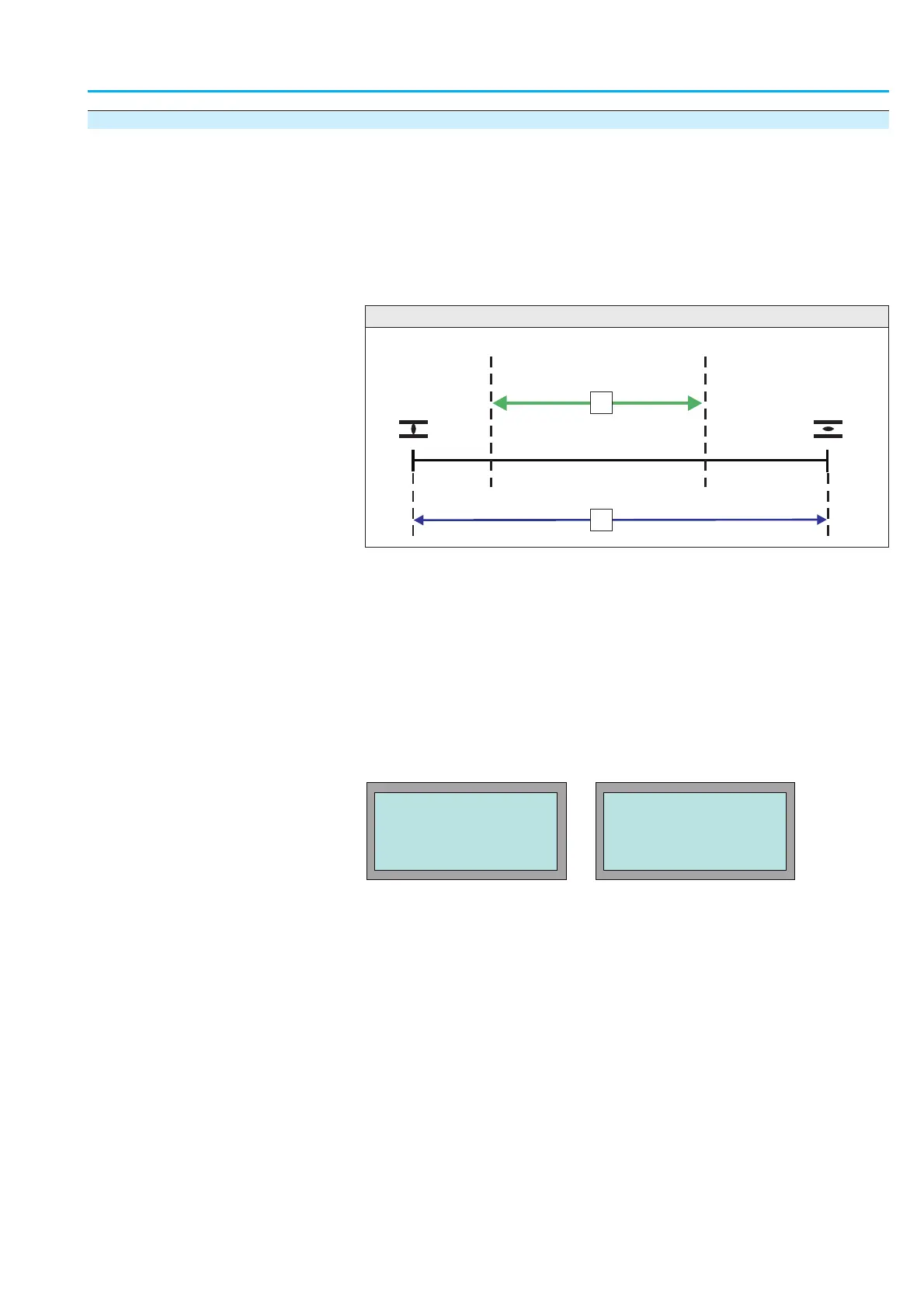

Figure 11 shows the limitation of the travel range:
Æ
Via the menu to parameter:
MAIN MENU (M0)
SETTINGS (M1)
PROCESS CONTROL PID (M1I)
CONTROL LIMIT OPEN (M1I17)
CONTROL LIMIT CLOSE (M1I18))
Default values: CONTROL LIMIT OPEN = 100 %
CONTROL LIMIT CLOSE = 0 %
Setting ranges: CONTROL LIMIT OPEN = 0 % to 100 %
CONTROL LIMIT CLOSE = 0
%to100 %
67
Actuator controls
Manual AUMATIC AC 01.1/ACExC 01.1 Profibus DP
EDIT M1I18
CONTROL LIMIT CLOSE
0%


:EDIT ¿:OK C:ESC
EDIT M1I17
CONTROL LIMIT OPEN
100 %


:EDIT ¿:OK C:ESC
1
Permissible actuator travel for PID
operation
2
Permissible actuator travel for
operation modes LOCAL or
REMOTE MODE
0 % 100 %
67 %22 %
1
2
Figure 11
