7.8 Stepping mode (option)
In stepping mode the operating time can be increased for the entire or any
portion of the valve travel (refer to figure 13).
Information Stepping mode is only possible if a position transmitter (potentiometer,
RWG, or MWG) is installed in the actuator.
Table of contents:
7.8.1 Display indication: enable view
7.8.2 Stepping mode: switch on or off
7.8.3 Stepping range setting (start and end of stepping mode)
ON and OFF times setting
7.8.1 Display indication: enable view
To perform settings for stepping mode via the display, the
STEPPING MODE
setting must be in position VIEW ENABLED.
Æ
Via the menu to parameter:
MAIN MENU (M0)
CONFIGURATION (M4)
SPECIAL FUNCTIONS (M40)
STEPPING MODE (M4014)
Default value: VIEW NOT ENABLED
È
Description of the parameter settings:
VIEW NOT ENABLED
The parameters for the stepping mode are not indicated in the display.
VIEW ENABLED
The parameters for the stepping mode are indicated in the display.
70
Actuator controls
AUMATIC AC 01.1/ACExC 01.1 Profibus DP Manual
1
t1
t3
t4
t3
t4
t1
t2
t2
2

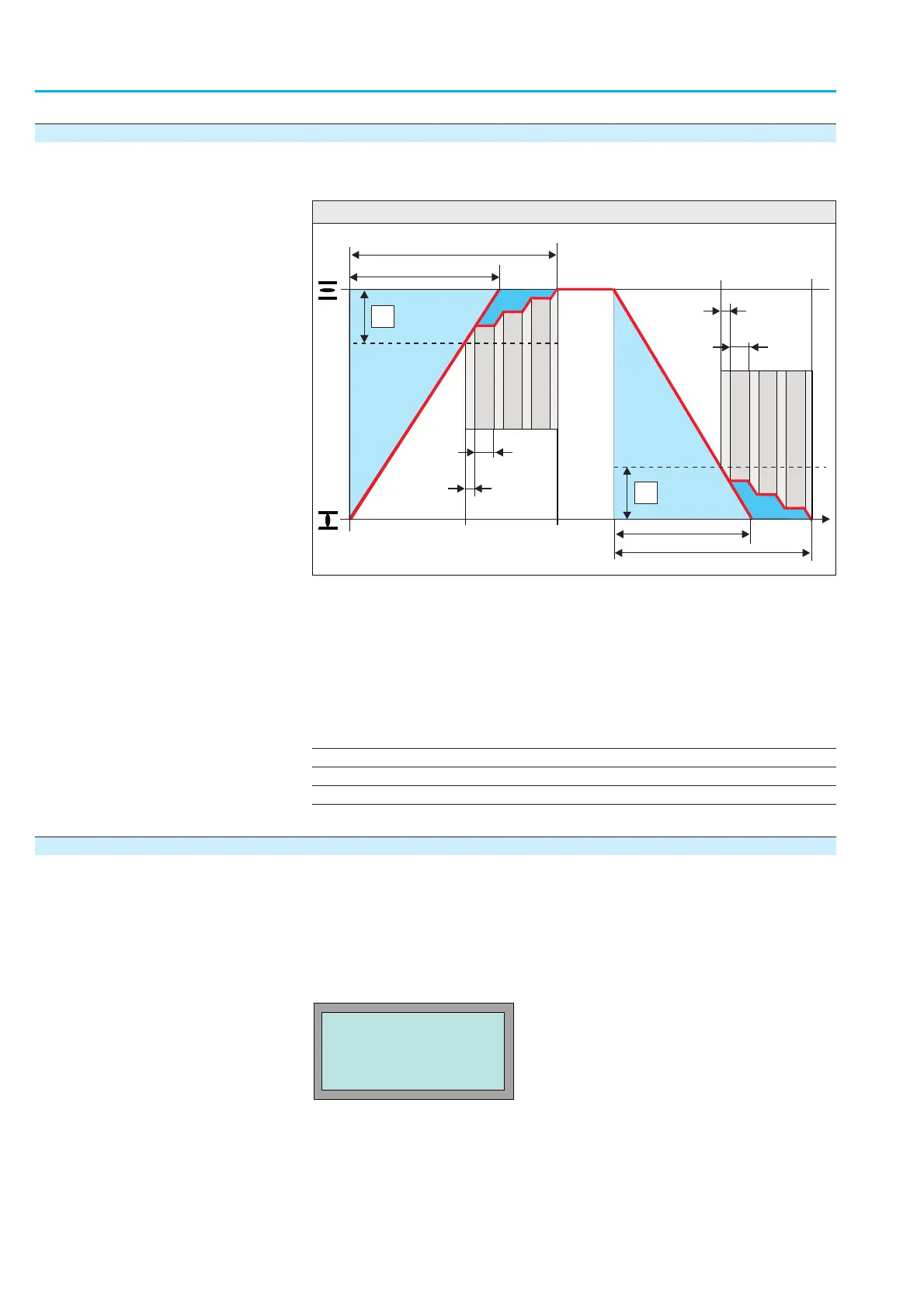

Figure 13
EDIT M4014
STEPPING MODE
VIEW NOT ENABLED


:EDIT ¿:OK C:ESC
1 Stepping range OPEN t1 Operating time for normal operation
2 Stepping range CLOSE t2 Operating time for stepping mode
P1 Start of stepping mode t3 Running time
P2 Stop of stepping mode t4 OFF time (pause time)
