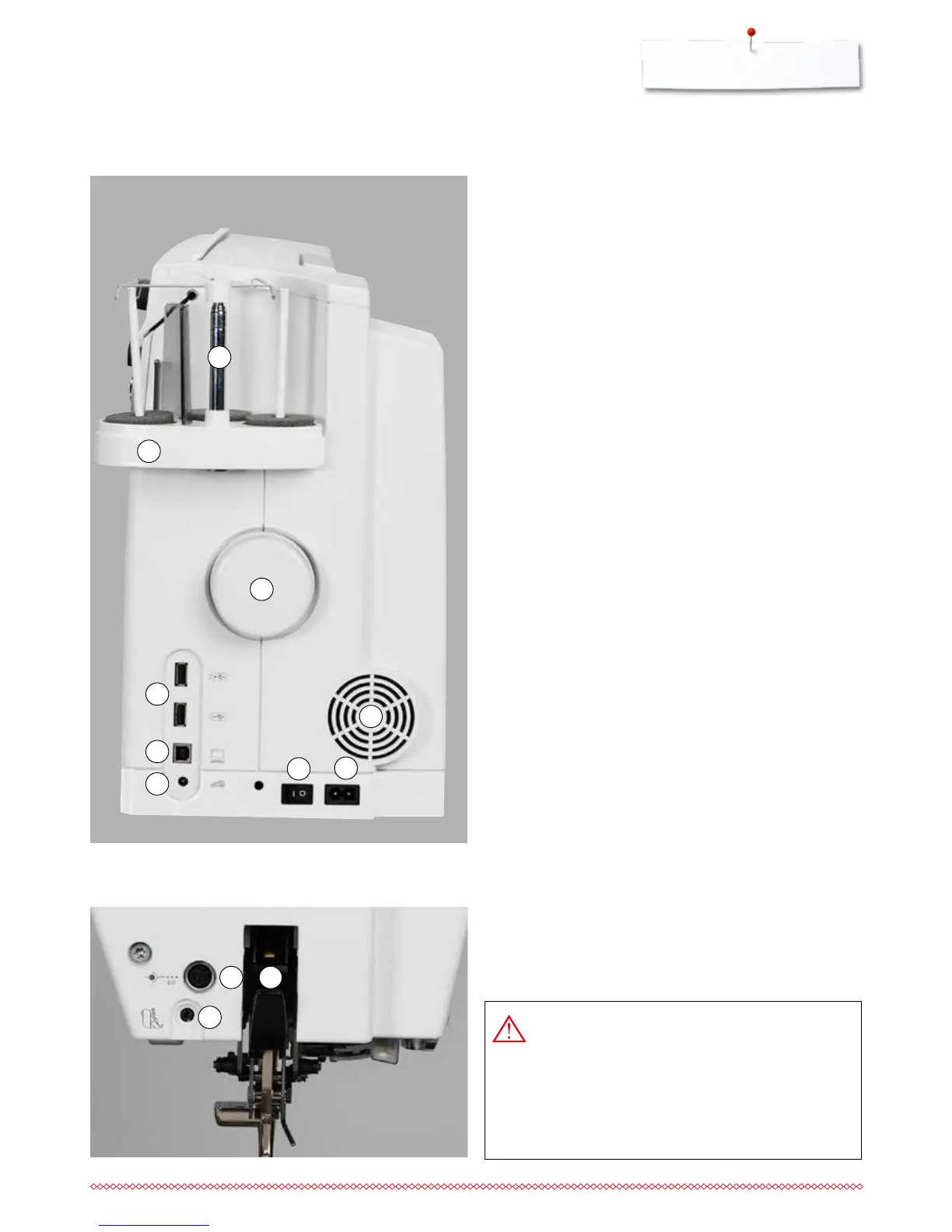

Overview sewing computer
1 Bobbin cover
2 Stitch plate
3 Special-accessories port
4 Presser foot
5 LED-Sewing light
6 Needle clamp
7 «Quick reverse»-button
8 «Start/Stop/hover»-button
9 «Automatic thread cutter»-
button
10 «Presser foot lift»-button
11 «Securing»-button
12 «Needle stop up/down»-
button
13 «Pattern end»-button
14 «Automatic needle
threader»-button
15 Slide speed control
16 Display
17 Carrying handle
18 «Sewing support»-buttons
⦁
«Home»-button
⦁
«Setup»-button
⦁
«Tutorial»-button
⦁
«Creative Consultant»-
button
⦁
«Help»-button
⦁
«eco»-button
⦁
«clr»-button (clear)
19 Stitch width knob
20 Stitch length knob
21 «Needle position»-buttons
22 Magnetic holder for
Touchscreen pen
23 Bobbin winder
24 Thread cutter for bobbin
winder
25 Threading slit
26 Bobbin pre-tension
27 Triple spool pin
28 Telescope
29 Handwheel
30 USB-connection
31 PC-connection
32 Foot control socket
33 Power switch On «I»/
Off «0»
34 Power plug socket
35 Air vents
36 Connection for Magnifying
glass (optional accessory)
37 Thread cutter on the
headframe
38 Special-accessories port
39 BSR-connection
40 BERNINA Dual Feed
41 Darning hoop connection
42 Slide-on table socket
43 Free Hand System
connection
USA/Canada only: The sewing computer has a
polarized plug (one blade wider than the other). To
reduce the risk of electrical shock, this plug is
intended to fit in a polarized outlet only one way. If
the plug does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a qualified
electrician to install the proper outlet. Do not
modify the plug in any way!
