1.4.4 Point Source / Point Detector arrangement
In exceptional cases with little space and a very small measuring
range, you can also choose an arrangement with point source and
point detector (see Fig. 1-8). The resulting exponential non-linear-
ities in this arrangement can be linearized automatically using a
mathematical function provided by the evaluation unit. The
required tag-specific calculations will be provided by BERTHOLD
TECHNOLOGIES.

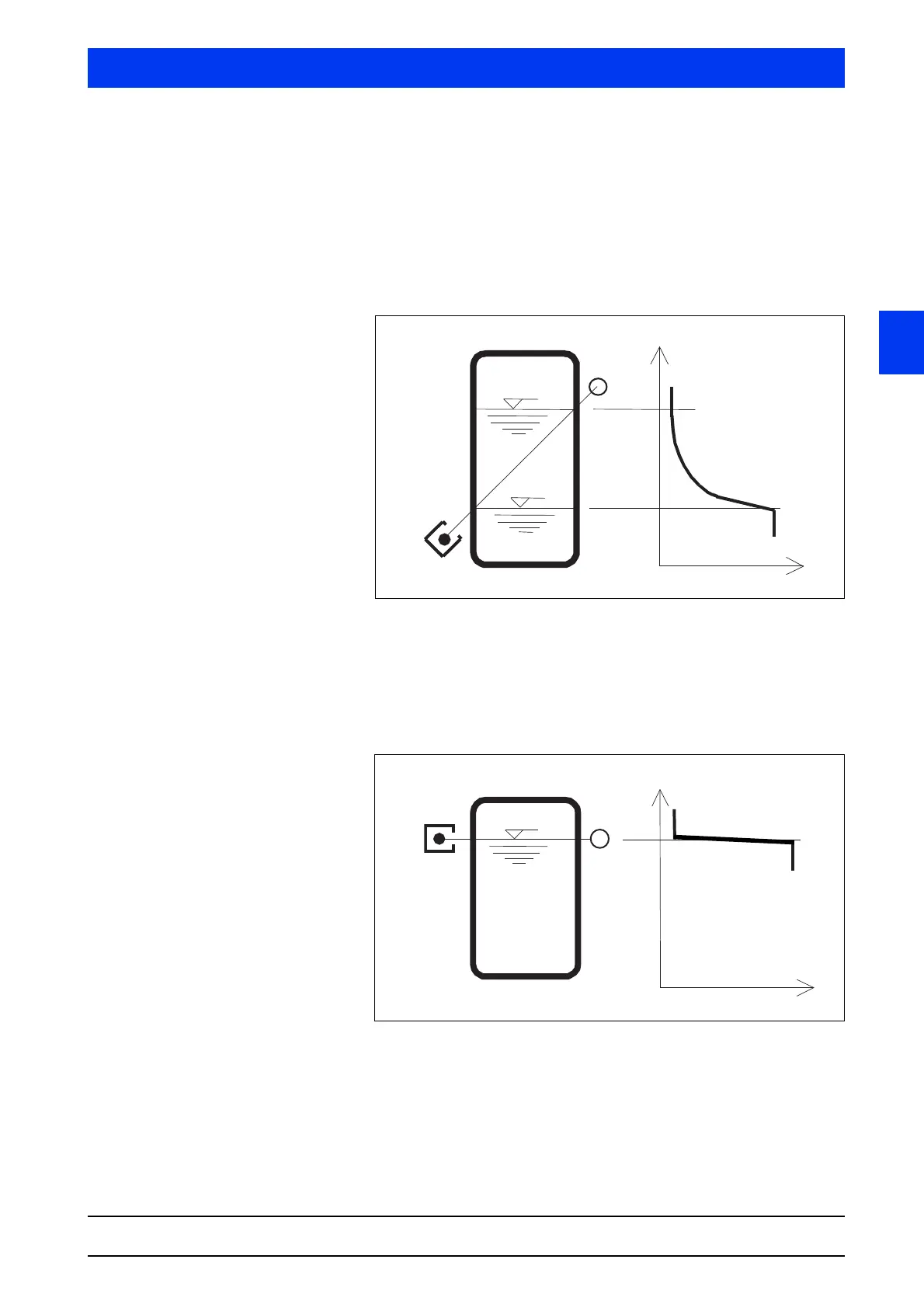

Fig. 1-8 Point source / Point detector arrangement
1.4.5 Point source / Point detector arrangement for
limit switches
The arrangement shown in Fig. 1-9 is used for limit measurements,
for example to avoid overflowing when filling a container.
Fig. 1-9 Point source / Point detector arrangement for limit switches
Source
Level
Detector signal
Detector
Source
Level
Detector signal
Detector
