SENSseries LB 480 Level measurement
BERTHOLD TECHNOLOGIES GmbH & Co. KG
2 – 211
Volume 2 2 Installation
2
Move source again to the shielding
position
 Pull the source back into the shielding using the steel cable or
the shaft core.
 Fix the source with the clamping screw at the head piece.
If it is a shielding with several sources, then the order in which the
source is pulled back into the shielding is important to rule out a
twisting of the cable lines:
 The source hanging at the highest position has to be pulled
back into the shielding first and secured with the clamping
screw.
 Then pull the source at the second highest position into the
shielding, etc.
 Connect the locking mechanism to the shielding.
 Finally, put the cover over the shielding. It may be necessary to
unlatch the steel cables or the shaft core.
Operating the flange shielding with shaft core
 Open the lock (padlock or safety screw).
 Remove the covering cap.

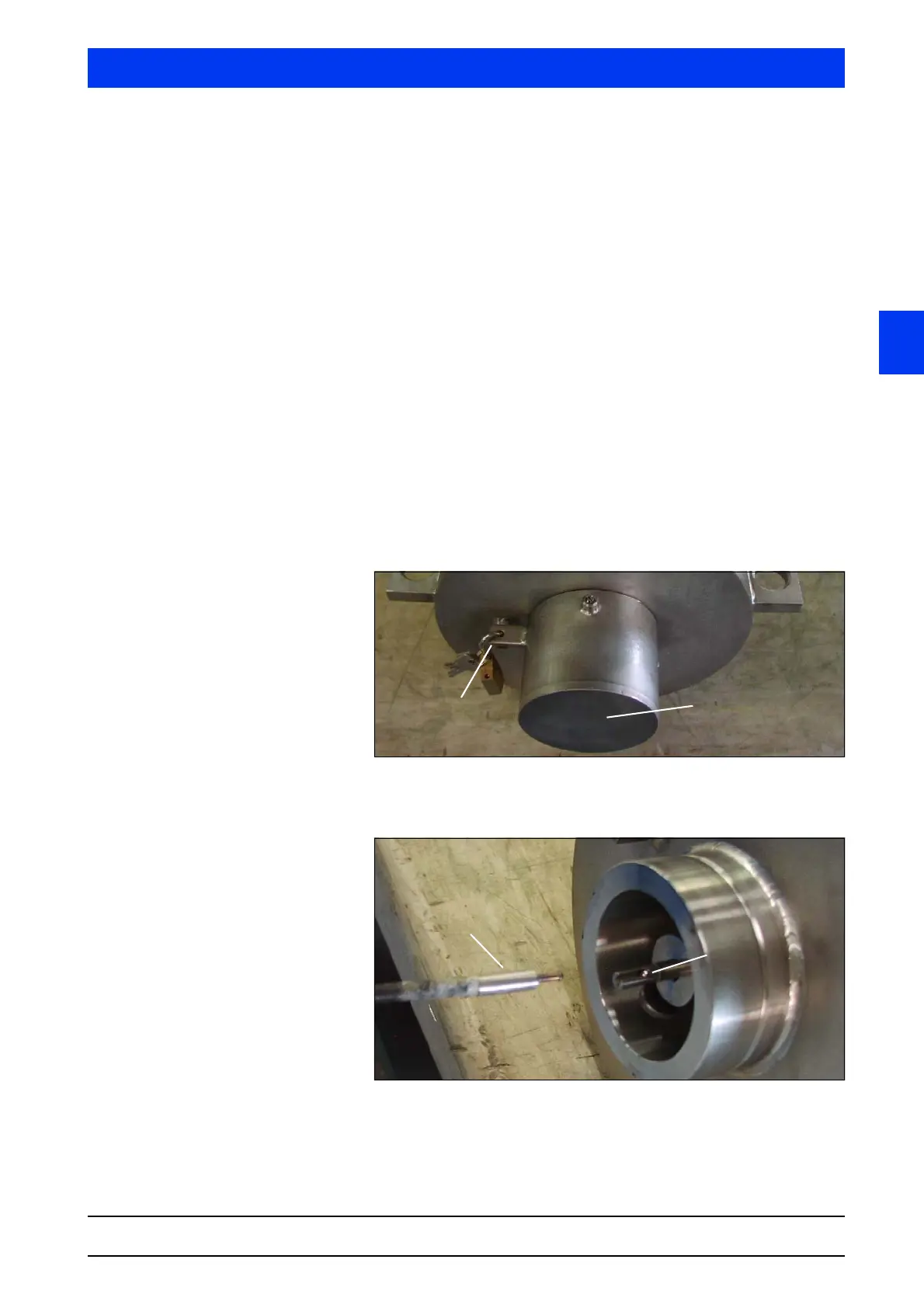

Fig. 2-33 Lock and covering cap
 Connect the shaft core with the source end piece.
Fig. 2-34 Shaft core and source end piece
Lock
Covering cap
Shaft core with latch
for clutch
Source end piece
with clutch
