54733-10BA2L
2 – 212 02.2017
2 Installation Volume 2

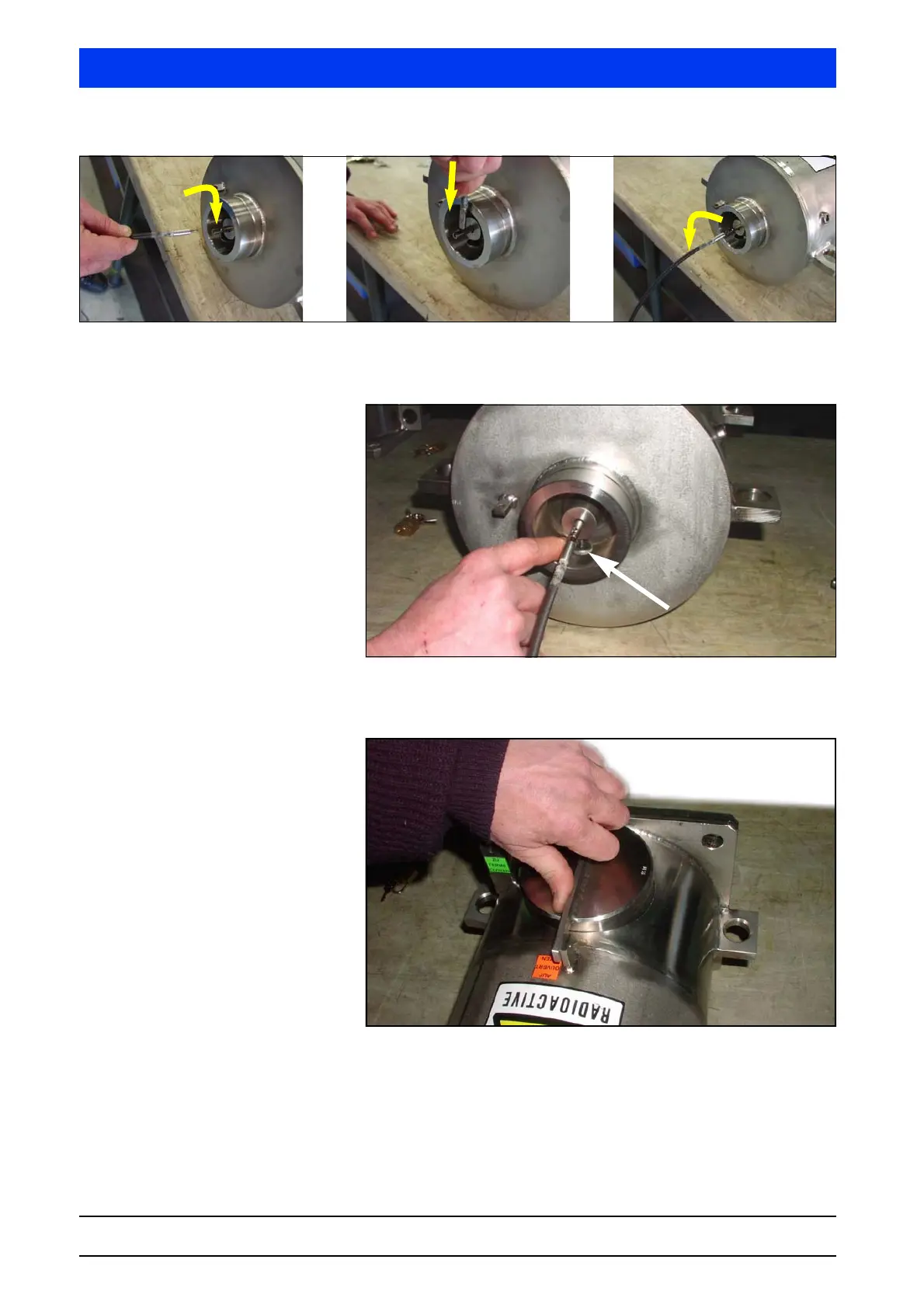

Fig. 2-35 Connect shaft core and source end piece
Open the fixing screw at the head piece.
Fig. 2-36 Open fixing screw
Open the source shielding.
Fig. 2-37 Open source shielding
Push the shaft core in up to the limit stop.
