www.biopac.com

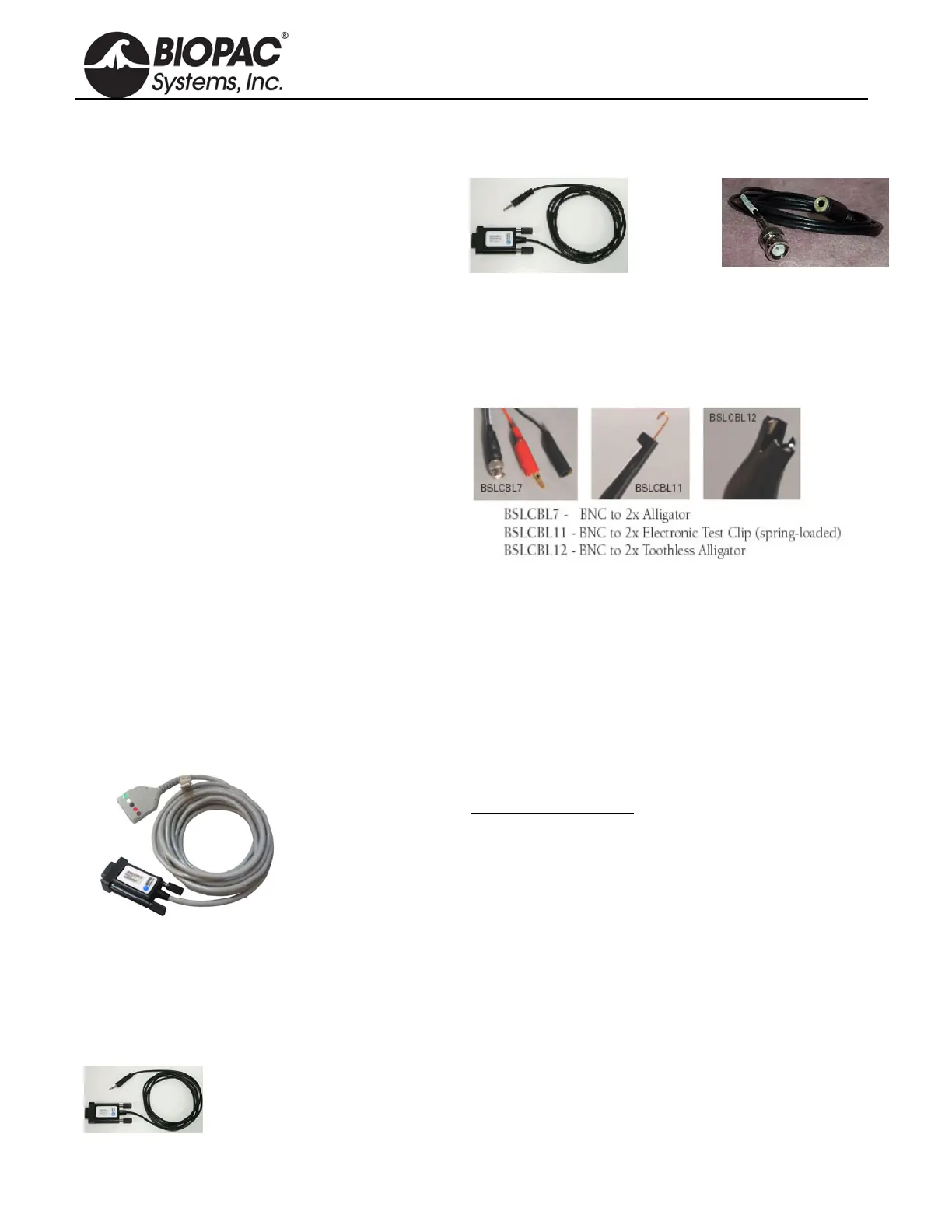

BIOPAC Hardware | BSLCBL SERIES | Page 2 - 2 Updated: 3.29.2013
3.5 mm Phone Plug Adapter
Use BSLSBL5, 1.7 meters (included with TSD122).
The cable has a built-in attenuation of 1/200, which
translates 10 V to 50 mV.
Stimulator to Output
Use BSLCBL6 to interface the BSL Stimulator with
3.5 mm Mono Phone Jack outputs, like the OUT100
Headphones or the OUT101 Tubephone set for
auditory stimulation. Required for Auditory Evoked
Response experiments. Use with OUT3 for MP36
built-in low voltage stim.
1.3 meter
BSLCBL5
3.5 mm Phone Plug
BSLCBL6
3.5 mm Mono Phone Jack
Stimulator to Electrode
BSLCBL7,
BSLCBL11, and
BSLCBL12
Use these clip leads to interface stimulating electrodes, or to
connect directly with animal preparations. Each 1-meter cable
has two clips And terminates with one BNC connector to
interface with the BSLSTM, SS58L Stimulator, or OUT3 for
MP36 low volt stimulator and silver or platinum wire
electrodes.
High-impedance cables
BSLCBL8 and
BSLCBL9
These fully-shielded, high-impedance electrode interface
cables permit high resolution recording of biopotential signals
using reusable electrodes. The adapter terminates with
standard 1.5mm Touchproof electrode connectors to interface
reusable electrodes (EL250, EL350, and EL450 series).
BSLCBL8/9 Specifications
Input Range: BSLCBL8: MP36/36R: ±2 V, MP35: ±1 V, MP30:
±70 mV, MP45: ±2 V
BSLCBL9: MP36/36R: ±3.8 V, MP35: ±3.8 V,
MP30: ±700 mV, MP45: ±3.8 V
Input Impedance: 500mGigaOhm (Common-Mode)
Input Bias Current: 3pA Typical, 100 pA Maximum
Voltage Noise: 1.3 µV p-p
Current Noise Density: 0.01 pA /SQRT(Hz)
Cable length: 2 meters
Interface: MP3X (DSub9)
MP36/35 Input Adapter for Research Amplifiers
BSLCBL14
3.5mm phone plug adapter to MP36/35 Input (DSUB 9m)
Use to interface equipment that outputs high-level voltage
signals, such as BIOPAC research amplifiers via the IPS100C
Isolated Power Supply or UIM100C universal interface.
The cable has a built-in attenuation of 1/10, which translates
10 V to 1V.
