www.biopac.com
BIOPAC Hardware | Heel-Toe Strike Transducer | Page 1 - 1 Updated: 10.8.2013

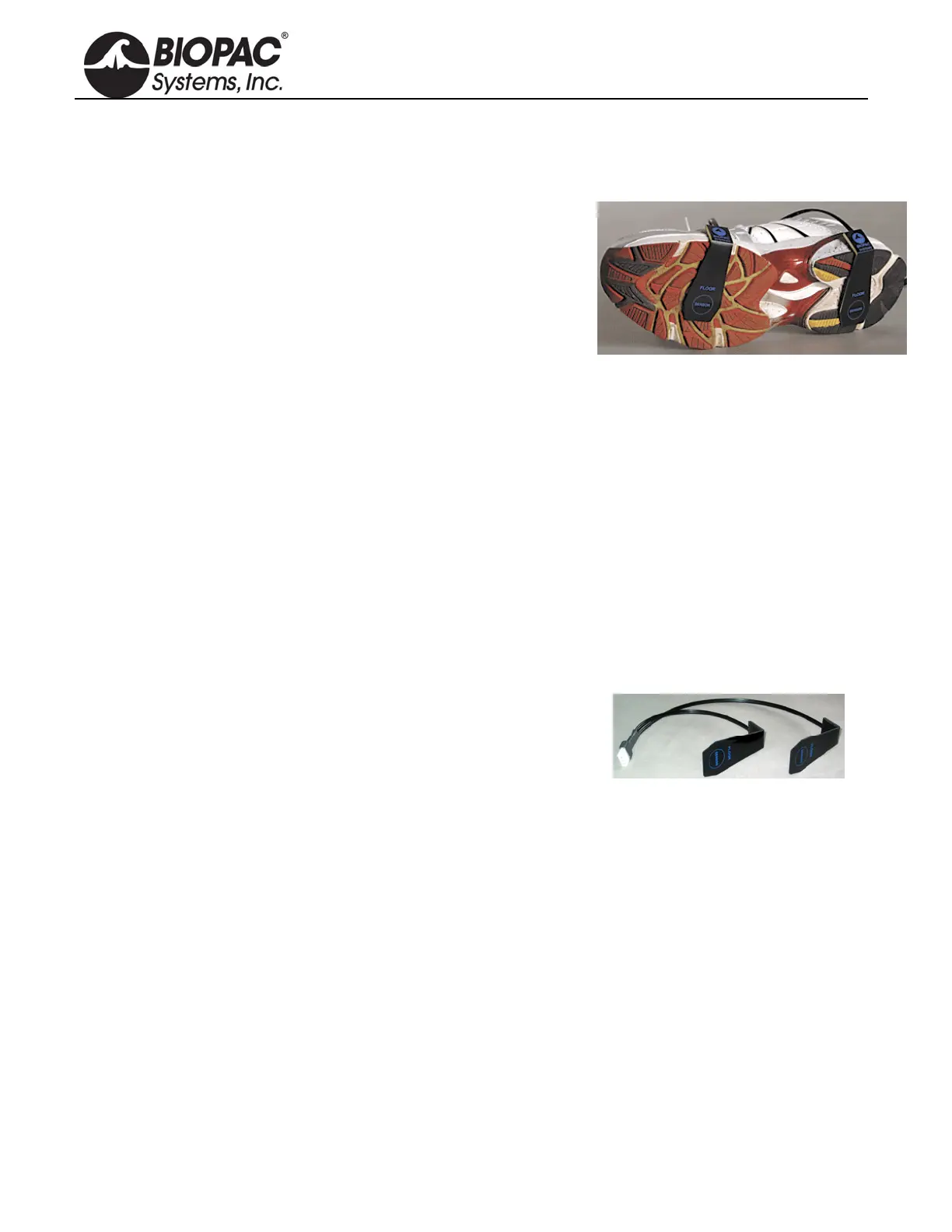

HEEL-TOE STRIKE TRANSDUCERS
SS28LA
TSD111A
SS28A
BN-STRIKE-XDCR
Use this transducer to record heel and toe strike activity as the subject
walks. The heel/toe strike data is recorded as a single channel; the heel
strike generates a negative deflection and the toe strike results in a
positive deflection. Two force sensitive resistors (FSR) attach to the sole
of a shoe; use two transducers to record from both feet
.
HEEL-TOE STRIKE SPECIFICATIONS
Nominal Output Range: -1 to +1 V
Nominal Contact Force: 200 g to indicate heel/toe strike
Attachment: TAPE1, TAPE2, Vinyl Electrical or Duct Tape
FSR Dimensions: 18.3 mm (dia) x 0.36 mm (thick) and 30 cm pigtail lead
FSR Active Area: 12.7 mm (dia)
Cable Length: 7.6 m
Cable Length – BN-STRIKE-XDCR: 30 cm
Interface: SS28LA MP36/35 System
TSD111A HLT100C
SS28A TEL100C
BN-STRIKE-XDCR BN-STRIKE
RX111 REPLACEMENT HEEL-TOE STRIKE SENSOR
Replacement strike sensor for Heel/Toe Strike transducers.
Note: Heel/Toe Strike Transducers without the "A" suffix in the part number (SS28L/T
SD111) do not
have a replaceable sensor. Check the part number or check the cable for a removable sensor
connector before ordering this replacement.
