BIOPAC Hardware | SS62L | Page 1 - 1 Updated: 7.17.2012

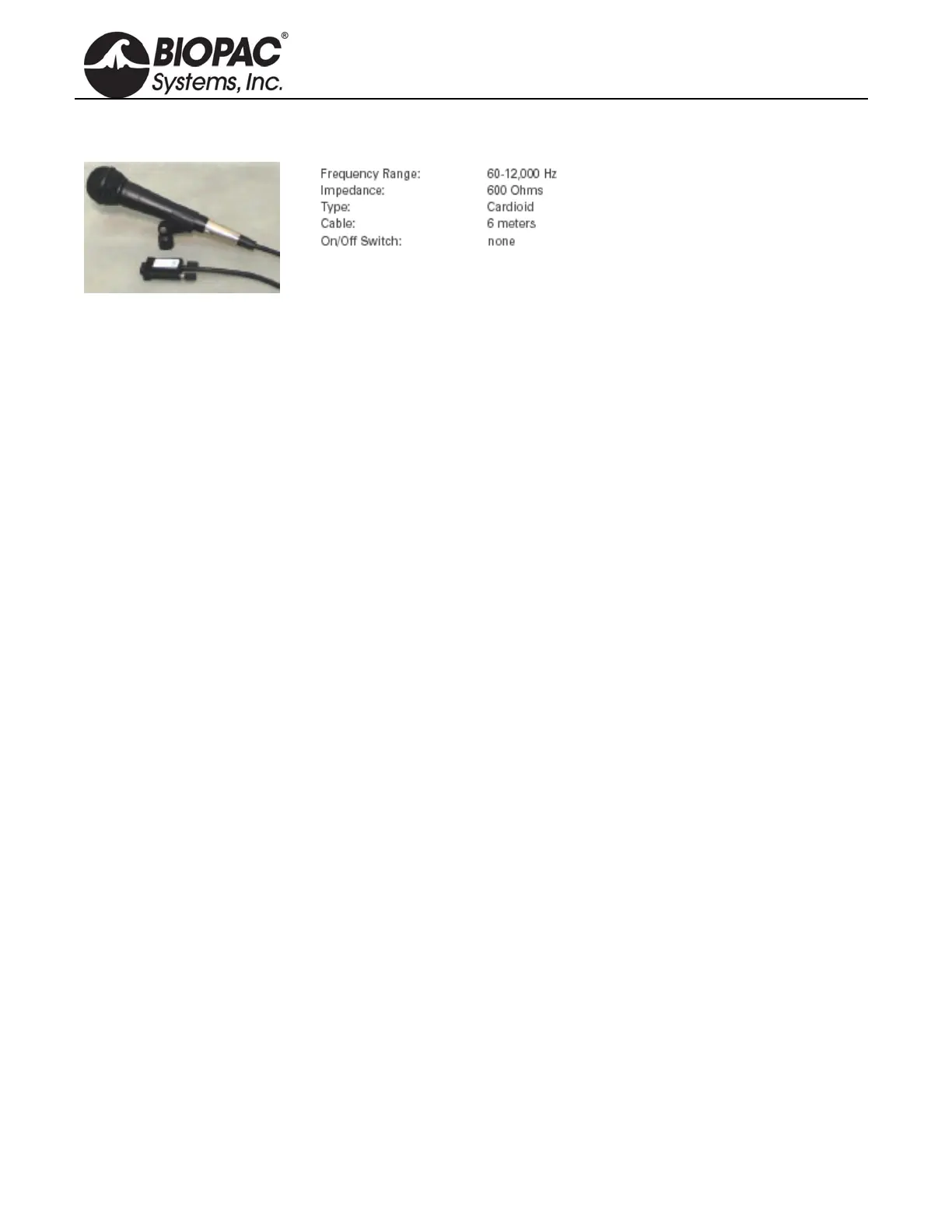

SS62L SPEECH FREQUENCY MICROPHONE

Use this precision microphone for speech

frequency analysis and other acoustic

studies. For use with the MP36/35 only,

requires continuous high-speed sample

rate.
