BIOPAC Hardware | SS13L – RX104A | Page 2 - 3 Updated: 1.31.2013

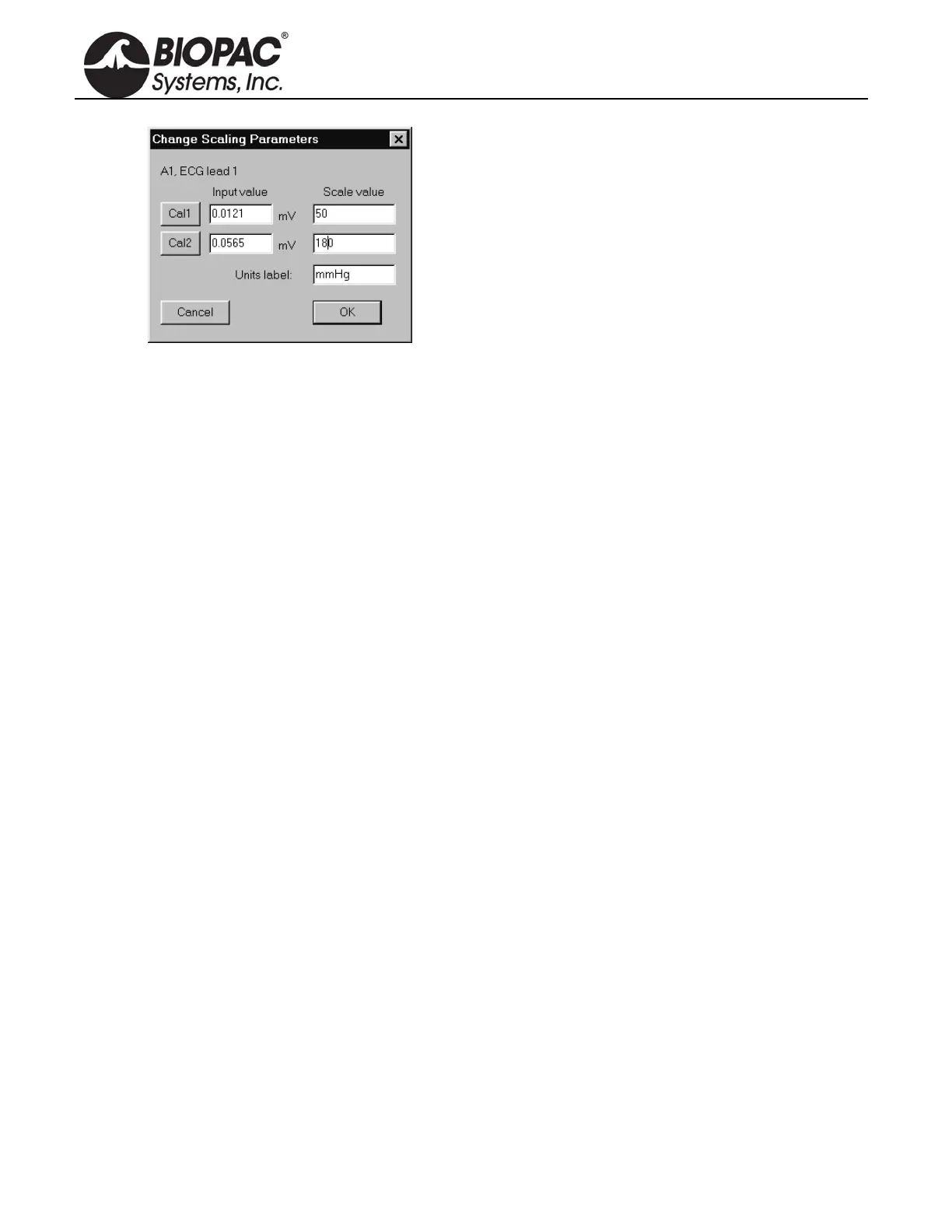

Note:
In this sample dialog, the transducer was
brought to a pressure of 50 mmHg and the Cal
1 button was pressed.
The transducer was then brought to a pressure
of 180 mmHg, and Cal 2 was pressed.
b) Bring the transducer to the lowest expected pressure.
c) Click on the Cal 1 button in the Channel scaling window.
A voltage value will be automatically entered in the corresponding Input value box.
d) Bring the transducer to the highest expected pressure.
e) Click on the Cal 2 button in the same scaling window.
A voltage value will be automatically entered in the corresponding Input value box.
The software will now interpolate between these two calibration points to give accurate measurements in mmHg.
SS13L PRESSURE TRANSDUCER SPECIFICATIONS
Operational pressure: -50 mmHg to +300 mmHg
Overpressure: -500 mmHg to + 4000 mmHg
Sensitivity: 25 V/VmmHg (at 5 VDC excitation)
Accuracy: ± 1.5% of reading or ± 1.0 mmHg (whichever is greater)
Operating temperature: 10° C to 40° C
Storage temperature: -30° C to +60° C
Volume displacement: 0.04 mm per 100 mmHg
Leakage current: 10 A RMS @ 115 VAC 50 Hz
Dynamic response: 100 Hz
Unbalance: 50 mmHg max
Connection Ports: male Luer and female Luer
(sensors shipped prior to summer 2010 were male Luer on both sides)
Eight-hour drift: 1 mmHg after 5-minute warm-up
Isolation: <= 5 leakage at 120 VAC/60 Hz
Defibrillation: Withstands 5 charges of 400 joules in 5 minutes across a load
Combined effects of
sensitivity, linearity and
hysteresis: 1 mmHg (nominal)
Transducer cable: 30cm
Interface cable: 3 meters
Transducer dimensions: 67mm long X 25mm wide
Weight: 11.5 grams
