BIOPAC Hardware | SS39L | Page 1 - 1 Updated: 2.27.2013

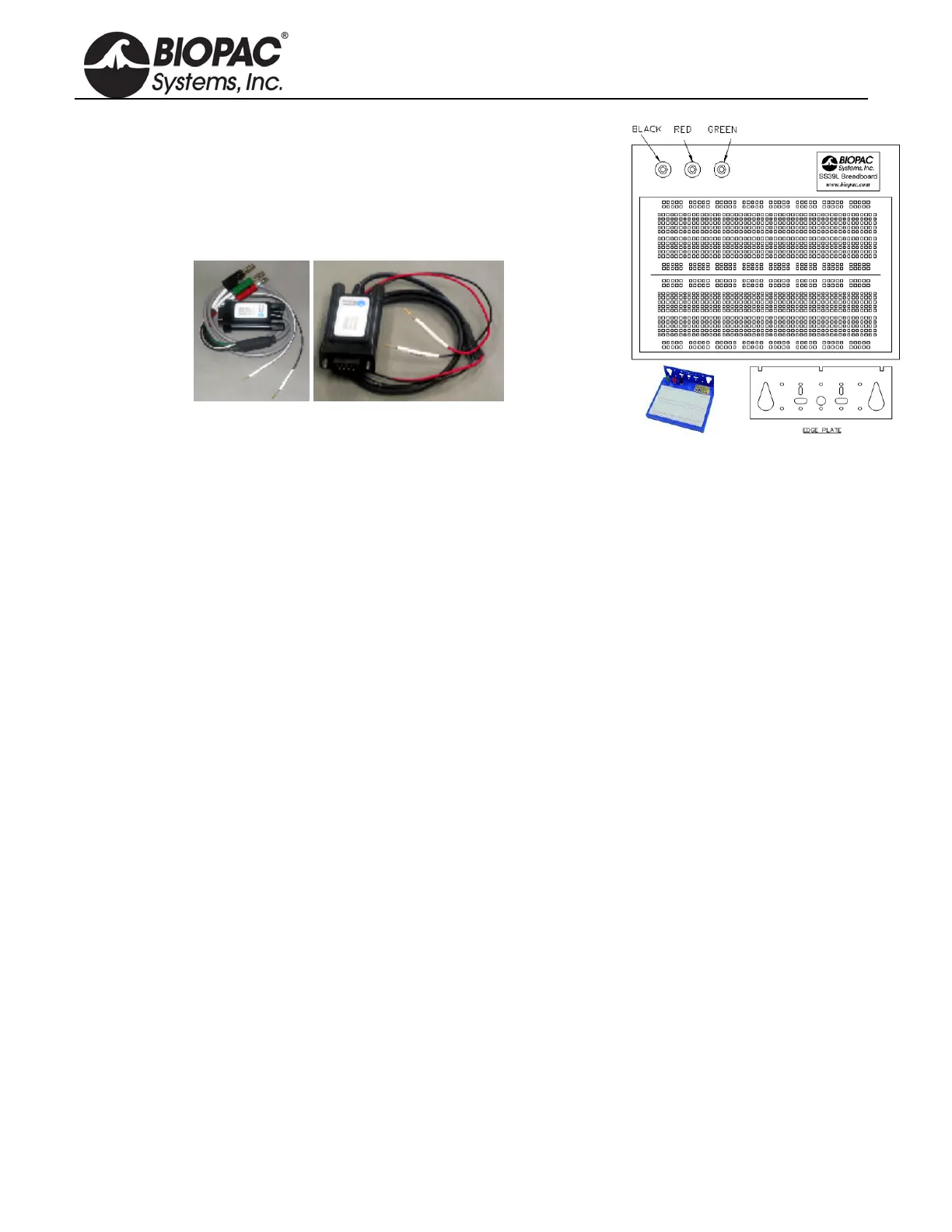

SS39L BREADBOARD
The Bioengineering Breadboard Lab consists of circuitry hardware and
eight projects (with schematics and design notes) that demonstrate a very
important subset of circuit design for recording and processing physiological
signals. Students will use the MP36/35 and BSL PRO software to evaluate
their designs. See Lessons H25, H26.
Circuitry Hardware
Breadboard
Signal/Power Cable
o 3 x Power Plugs: Green -5 V, Black GND, Red +5 V
o 2 x Signal Wires: White – Signal, Black – GND
o Built-in automatically resettable fuse
Signal Cable (SS60L)
o 2 x Signal Wires: Red – Signal, Black – GND
Electrode Lead Interface
o BSL-TC122: SS2L to SS39L
Accessory Kit (BSL-BMEACC)
o Capacitors, diodes, resistors, jumper wires, and other circuit-building components
Project Book includes schematics for:
Lab 1: Square Wave Oscillator
Lab 2: Instrumentation Amplifier
Lab 3: High Pass Active Filter
Lab 4: Active Gain Block and Low Pass Filter
Lab 5: Notch Filter for 50/60 Hz Rejection
Lab 6: QRS Detection: Band Pass Filter
Lab 7: QRS Detection: Absolute Value Circuit
Lab 8: QRS Detection: Low Pass Filter and Overall System Test
