BIOPAC Hardware | SS11LA & TSD117 | Page 7 - 7 Updated: 12.2.2013

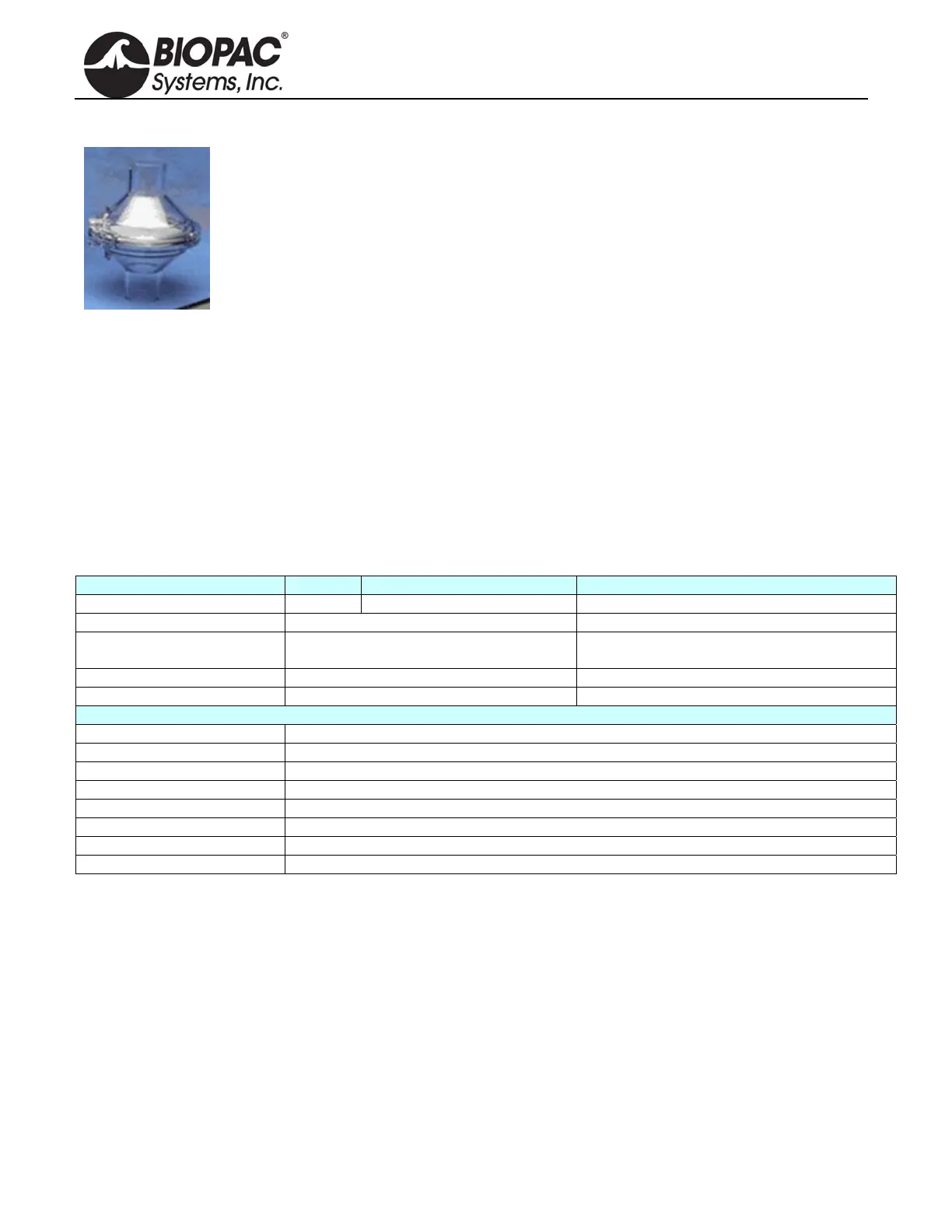

RX117 Replacement Airflow Head
The RX117 is a sterilizable airflow head for the TSD117 and SS11LA pneumotach
transducers. The material used in the flow head is polycarbonate and the screen is Stainless
Steel. To reduce the cost of disposable items, use the RX117 with the AFT8 sterilizable
mouthpiece. (22mm ID/30mm OD). Multiple RX117 heads help eliminate equipment
downtime during cleaning procedures.
Recommended sterilization: cold sterilization (i.e., Cidex®) or autoclave. If autoclaved,
RX117 Airflow Heads should be cleaned at the lowest autoclave temperature setting. T
he life
cycle will be about 10-20 cycles, depending upon temperature used.
MRI Usage Declarations for TSD117-MRI Medium Flow Pneumotach Transducer
MRI Usage: MR Conditional
Condition: The TSD117-MRI with RX117 head is used outside the bore in the MRI Cham
ber Room
and AFT7-L tubing is connected to reach the subject.
Components: Polyvinyl Chloride (PVC) Plastic, Polycarbonate Clear Plastic, Acrylonitrile Butadiene
Styrene (ABS) Thermo-molded, Plastic, Polymer thick film device (rigid substrate,
printed semi-conductor), Copper clad fiberglass lamination (PCB material), Stainless
steel screen (type 316L), Stainless steel machine screws/nuts, tinned copper wire,
Silicone elastomer, PVDF (Kynar) heat shrink tubing
SS11LA & TSD117 Technical Specifications
TRANSDUCER: TSD117 TSD117-MRI SS11LA
Interface: DA100C MECMRI-DA to DA100C MP36/35/30/45
Flow Rate: ±300 Liters/min (±5 liters/sec) 10 liters/sec (highest linearity (±5 liters/sec)
Nominal Output: 60 µV/[liters/sec] (normalized to 1 V
excitation)
60 µV/[liters/sec]
¼” 25 TPI mounting nut: Standard camera mount --------
Cable Length: 10 m, shielded 2 m, shielded
RX117 SPECS:
Flow Head Construction: Clear Acrylic
Flow Bore (Ports): 22 mm (ID), 29 mm (OD)
Flow Head Dimensions: 82.5 mm (diameter) x 101.5 mm (length)
Flow Head Weight: 80 g
Handle Weight: 85 g
Handle Dimensions: 127 mm (length) x 23 mm (thick) x 35 mm (wide)
Handle Construction: Black ABS
Dead Space: 93 ml
