BIOPAC Hardware | AFT Series | Page 4 - 7 Updated: 12.3.2013
AFT11 Series Coupler Guide
Item 1 Item 2 Coupler Item 1 Item 2 Coupler
15 mm OD 22 mm ID AFT11B 25 mm ID 25 mm ID AFT11C
20 mm OD 22 mm ID AFT11B 25-30 mm OD 25-30 mm OD AFT11A
22 mm ID 15 mm OD AFT11B 28-35 mm ID AFT11A
20 mm OD AFT11B 28-35 mm ID 25-30 mm OD AFT11A
22 mm ID AFT11B 35 mm ID AFT11A
22 mm OD AFT11I 34-37 mm ID 41-47 mm ID AFT11F
22 mm OD 22 mm ID AFT11C 35 mm ID 28-35 mm ID AFT11A
22 mm OD AFT11C 38 mm ID AFT11E
25 mm ID AFT11C 35-38 mm ID 22-25 mm OD AFT11E
22-25 mm OD 22 mm OD AFT11E 35-38 mm OD 35-38 mm OD AFT11D
25 mm ID AFT11E 35 mm OD 28.6 mm OD AFT11H
Coupler Size Interface
AFT11A 25 mm OD/35 mm ID AFT6A to AFT1
AFT11B 15 mm OD/22 mm ID AFT10 to SS11LA
AFT11E 22 mm OD/35 mm ID AFT7 to AFT22/25
AFT11F 35 mm OD/45 mm OD SS52L to GASSYS2
AFT11H 35 mm OD/28.6 mm ID AFT13 to SS11LA
AFT11I 22 mm OD/22 mm ID AFT26 replacement coupler
AFT15 MIXING CHAMBERS
AFT15A/B mixing chambers incorporate dual baffles
and flexible connection ports capable of interfacing with
35 mm or 22 mm breathing circuits.
Two female Luer connection ports are provided between
the baffles for the simultaneous monitoring of O
2
and
CO
2
concentrations.

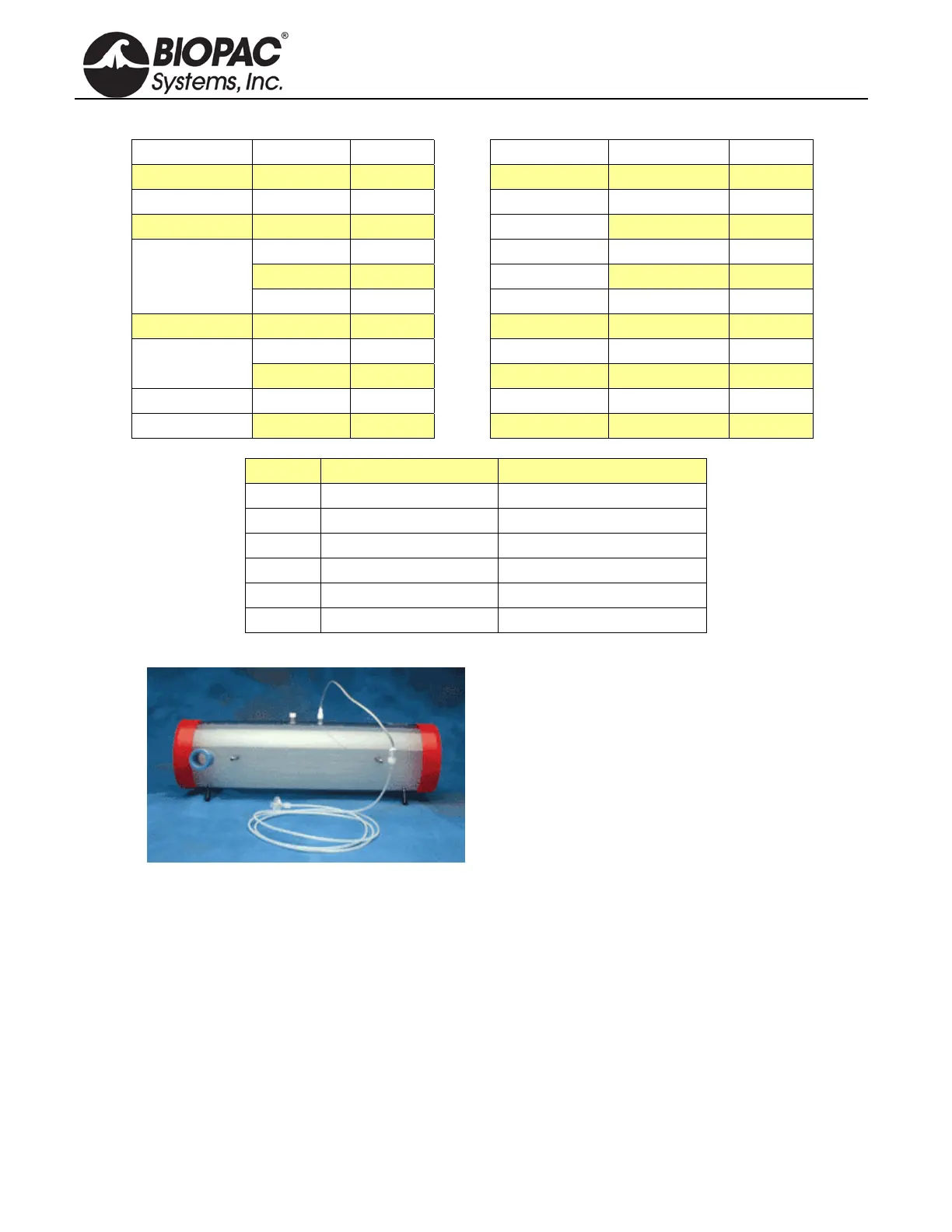

AFT15A shown with AFT20 (not included)
AFT15A — 5 Liter
Use for demanding expired gas analysis measurements
(e.g. VO
2
or RER measurements).
Dimensions: 13 cm (dia) x 47 cm (long) Coupling Ports: 35 mm OD, 25 mm ID
AFT15B — 8 Liter
Use for very high volume and rate expired gas analysis measurements (e.g. VO
2
or RER
measurements).
Dimensions: 13 cm (dia) x 73 cm (long) Coupling Ports: 35 mm OD, 25 mm ID
GAS SAMPLING INTERFACE KITS
AFT20
Use to interface the CO2100C and the O2100C modules with the TSD107B or TSD117 Airflow
Transducer breathing circuits.
Includes: 1.8 meters of 1.5 mm inner diameter semi-flexible polyethylene tubing with M/F Luer
connector; 30cm Nafion
®
water vapor permeable tubing with M/F Luer connector; 5 micron filter with
M/F Luer connector; M/F Luer to female Luer “Y” connector.
