ELECTRODE LEADS

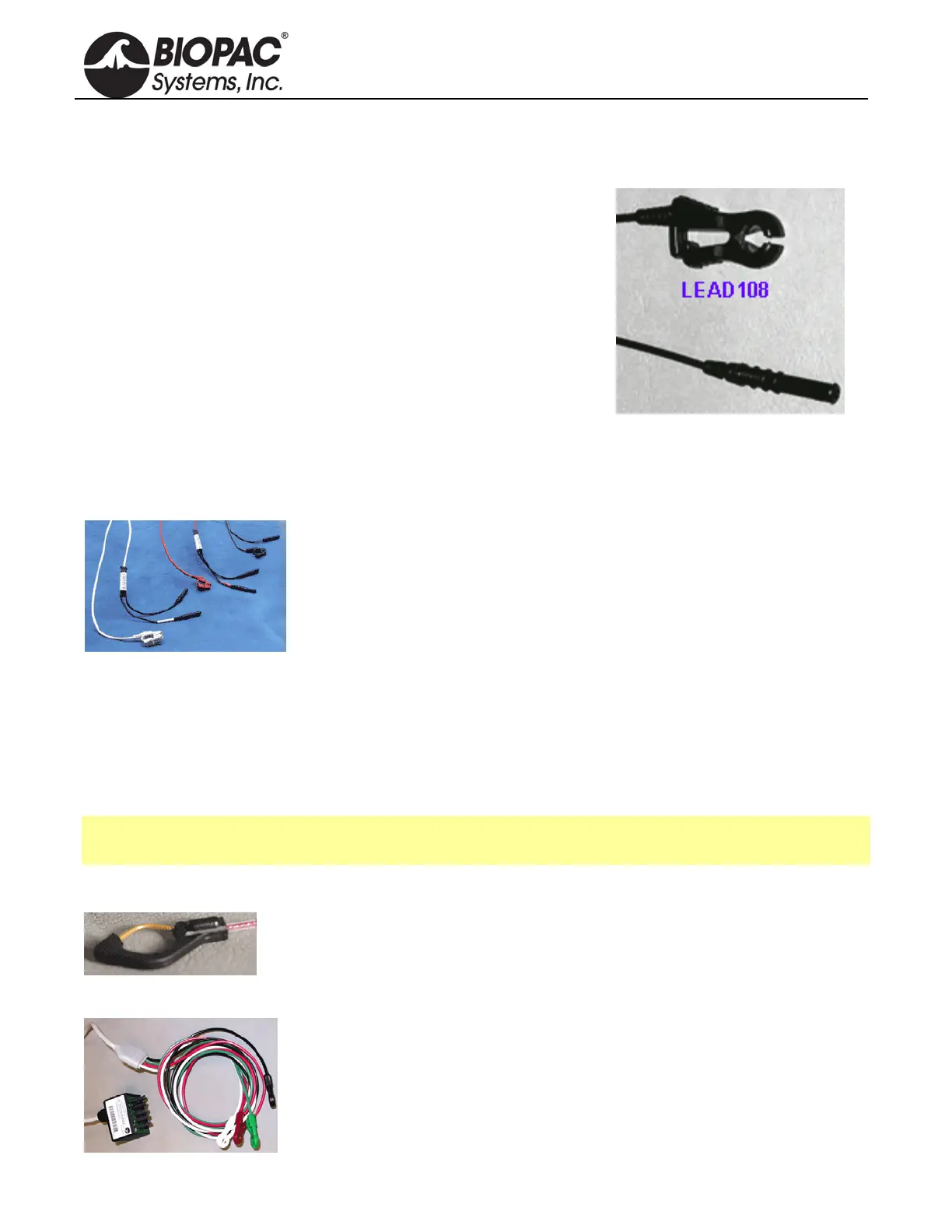

LEAD108 SERIES — MRI-CONDITIONAL/RADIOTRANSLUCENT LEADS FOR EL508/EL509
Use the LEAD108 series with EL508 MRI-conditional, radiotranslucent
electrodes and EL509 disposable radiotranslucent dry electrodes. All
LEAD108 Series terminate in 1.5 mm female Touchproof sockets.
MRI Usage: MR Conditional
Condition: Tested 3T-9T
Lead108 Components: Polyvi
nyl chloride (PVC) plastic, carbon
fiber leadwire, tinned copper connectors (Touchproof socket),
electrode clip (carbon filled ABS plastic)
SPECIFICATIONS
Construction: Carbon fiber leadwire and electrode snap
Leadwire Diameter: 1.5 mm
Leadwire Resistance: 156 Ohms/meter
Leadwire Length: LEAD108 1.8 m, LEAD108A 3.6 m, LEAD108B 15 cm, LEAD108C 30cm
LEAD110 SERIES — ELECTRODE LEADS
The LEAD110 Series, for use with disposable and other snap connector
electrodes, are pinch leads for easy connection between the EL500-series snap
electrodes and any BIOPAC biopotential amplifier or the GND terminal on the
back of the UIM100C. Leads terminate in standard 1.5 mm Touchproof connector
and connect to BIOPAC modules or to a Modular Extension Cable (MEC series).
LEAD TYPE LENGTH USAGE NOTE
LEAD110 Unshielded 1 m Works best as a ground electrode
LEAD110A Unshielded 3 m Works best with ground or reference electrodes
LEAD110S-R Shielded; red 1 m Use with recording electrodes for minimal noise interference. White lead
plug is for electrode contact; black lead pin plug is for lead shield.
LEAD110S-W Shielded; white 1 m Use with recording electrodes for minimal noise interference. White lead
plug is for electrode contact; black lead pin plug is for lead shield.
See also: TSD155C Multi-lead ECG Cable
WT100C Wilson Terminal (virtual reference)
LEAD120 LEAD FOR EL120
This 1-meter lead with Touchproof conn
ector works exclusively with the reusable
EL120 electrode. Snap the electrode into place and then plug the lead in with the
Touchproof connector. White—LEAD120-W Red—LEAD120-R
LEAD130 SHIELDED LEAD ASSEMBLY
LEAD130 Shielded Lead Assembly is for use with the EBI100C Electrical
Bioimpedance Module or t
he NICO100C Noninvasive Cardiac Output Module. The
shielded lead assembly terminates with an adapter that plugs into the front of the
amplifier module and includes four leads:
White = I+ Red = Vin+ Green = Vin- Black = I- (GND)
