BIOPAC Hardware | SS11LA & TSD117 | Page 5 - 7 Updated: 12.2.2013

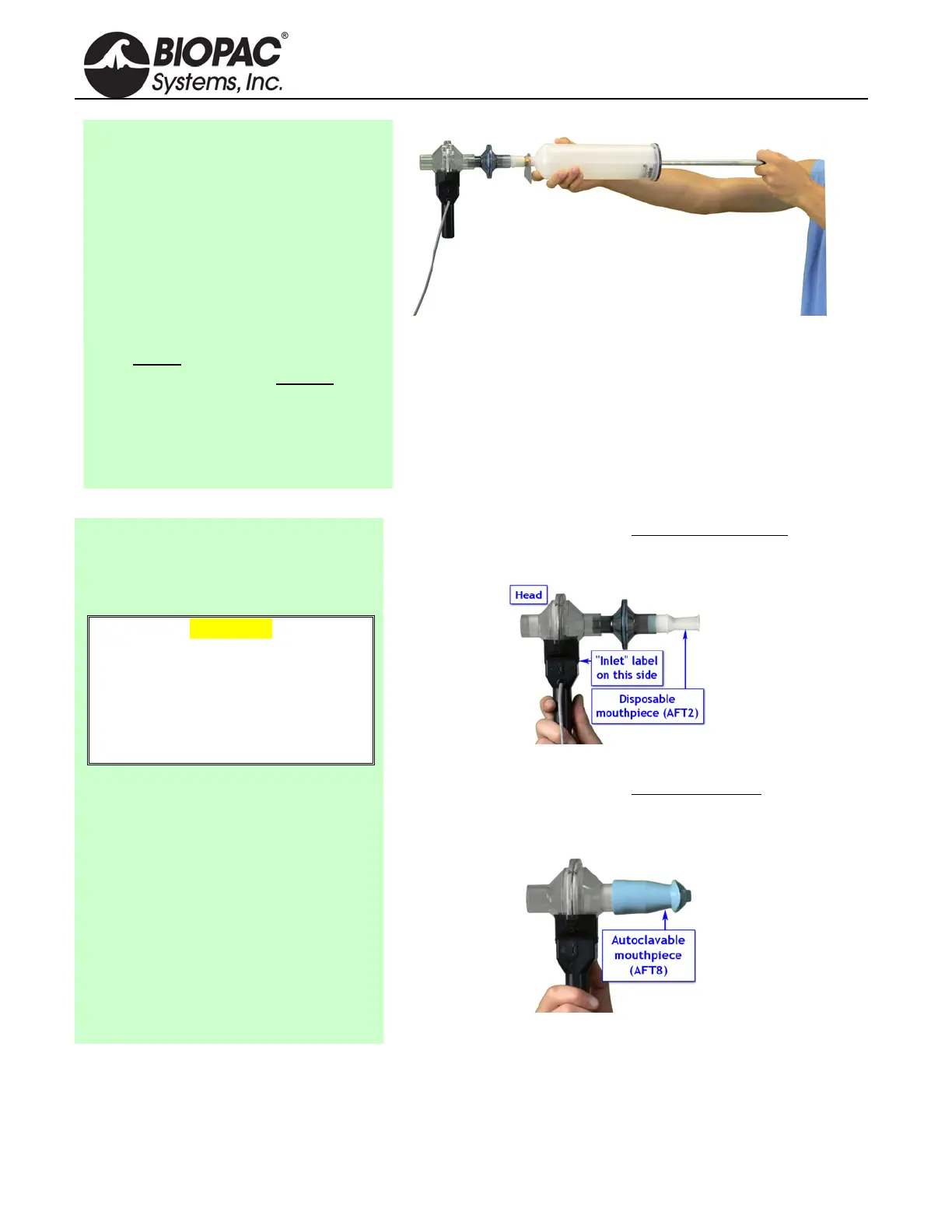

Proper handling of the Calibration Syringe Assembly
3. Pump the plunger several times
before the recording. Always pull
and push the plunger all the way
until it stops when using the
syringe. This assures that the full
volume of air (0.6 liter) flows in and
out of the airflow transducer.
Recording with the Airflow Transducer
1) Attach the appropriate filter and
mouthpiece on the side labeled Inlet.
WARNING
The bacterial filter and mouthpiece are
disposable and are “one per person”
items. Please use a new disposable
filter and mouthpiece each time a
different person is to be breathing
through the airflow transducer.
If using SS11LA transducer and not sterilizing the head
after each use, insert a filter and mouthpiece into the
airflow transducer on the side labeled “Inlet.”
SS11LA with unsterilized head
If using SS11LA transducer and sterilizing the head
after
each use, insert a disposable mouthpiece (BIOPAC AFT2)
or a sterilizable mouthpiece (BIOPAC AFT8) into the
airflow transducer on the side labeled “Inlet.”
SS11LA with sterilized head
