BIOPAC Hardware | Gonio-Torsio | Page 4 - 9
Updated: 11.21.2013
Specifications
Part #
MP1XX via DA100C
TSD130A TSD130B TSD130C TSD130D TSD130E
Telemetry TEL100C
SS20 SS21 SS22 SS23 SS24
MP36/36R/35/30/45
SS20L SS21L SS22L SS23L SS24L
BioNomadix via BN-GONIO BN-GON-110-
XDCR
BN-GON-150-
XDCR
BN-TOR-110-
XDCR
BN-TOR-150-
XDCR
BN-GON-F-
XDCR
Number of channels
2 2 1 1 1
Measuring range
±150 ±150 ±150 ±150 ±150

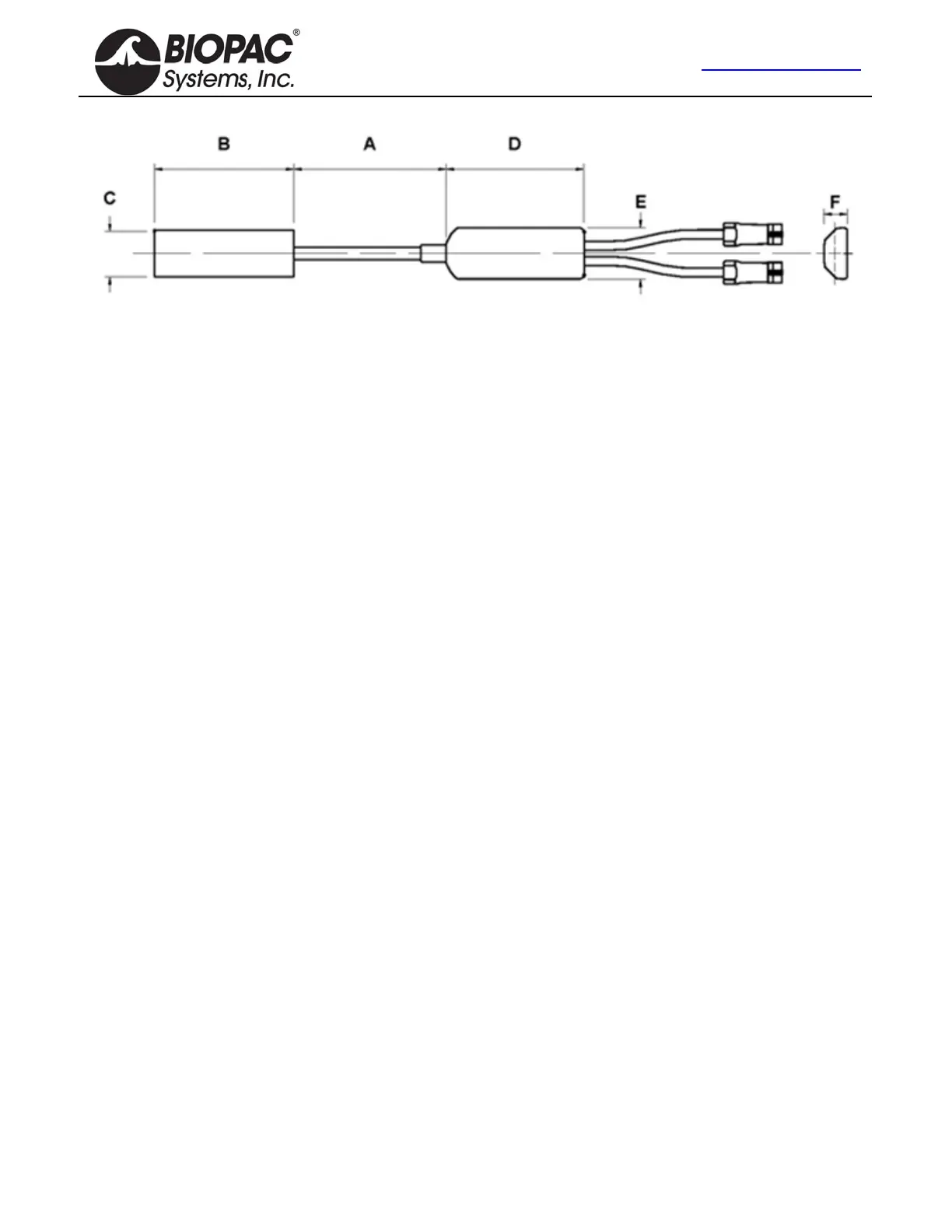

Dimensions mm
A. Maximum
110 150 110 170 35
A. Minimum
70 100 70 115 30
B.
60 70 60 70 18
C.
18 18 18 18 8
D.
54 54 54 54 15
E.
20 20 20 20 8
F.
9 9 9 9 5
Bend radius (mm) – min.
18 18 18 18 3
Weight (g)
23 25 22 23 8
Crosstalk
1
±5% ±5% N/A N/A N/A
Nominal Output
5 µV/degree normalized to 1 V excitation
Temperature Zero Drift
0.15 degrees angle / C
Cable length
6 m for TSD130 Series/SS20L-24L/BN-GON/BN-TOR, 1.8 m for SS20-24,
Endblock height
Cable end 9.4 mm, distal end 8.2 mm
Transducer type
Strain gauge
Life
2
600,000 cycles minimum
Accuracy
±2 measured over 90 from neutral position
Repeatability
Better than ±1
Analog resolution
Infinite
Operating temp range
+0 to +40 C
Storage temp range
-20 C to +50 C
Operating/Storage
humidity range
30% to 75%
Atmospheric pressure range
Operation
700hPa to 1060hPa
Storage
500hPa to 1060hPa
1
Specification of crosstalk for all Biometrics twin-axis SG series of goniometers is measured over ±60. i.e., if a joint is
moved through 60 from the neutral position in one plane without movement in the orthogonal plane, then the sensor
output in the orthogonal plane may change by a maximum ±3.
2
Life test results have been collected by cycling the sensors through movements that would happen during everyday use.
For example, placing a sensor on an adult elbow and moving from the neutral position to maximum flexion and back to the
neutral position, the unit will function for a minimum of 600,000 cycles.
