BIOPAC Hardware | ELECTRODE LEADS | Page 2 - 2 Updated: 12.2.2013
Important Usage Notes:
If using multiple biopotential modules, do not connect the ground (GND) for the other modules — establish
one ground per subject.
If using a GSR100C Electrodermal Response Amplifier with the EBI100C or the NICO100C, please note
that the black I- (GND) connection will shunt current from the GSR100C excitation source. Accordingly,
GSR100C measurement values will be shifted somewhat higher in absolute conductance, and should be
used for relative measures only.
See also: EBI100C Electrical Bioimpedance Module
NICO100C Noninvasive Cardiac Output Module
EL506 Bioimpedance Strip Electrode and EL500 Series Disposable Electrodes
Application Note 215 - Noninvasive Cardiac Ouput - NICO100C and LEAD130.

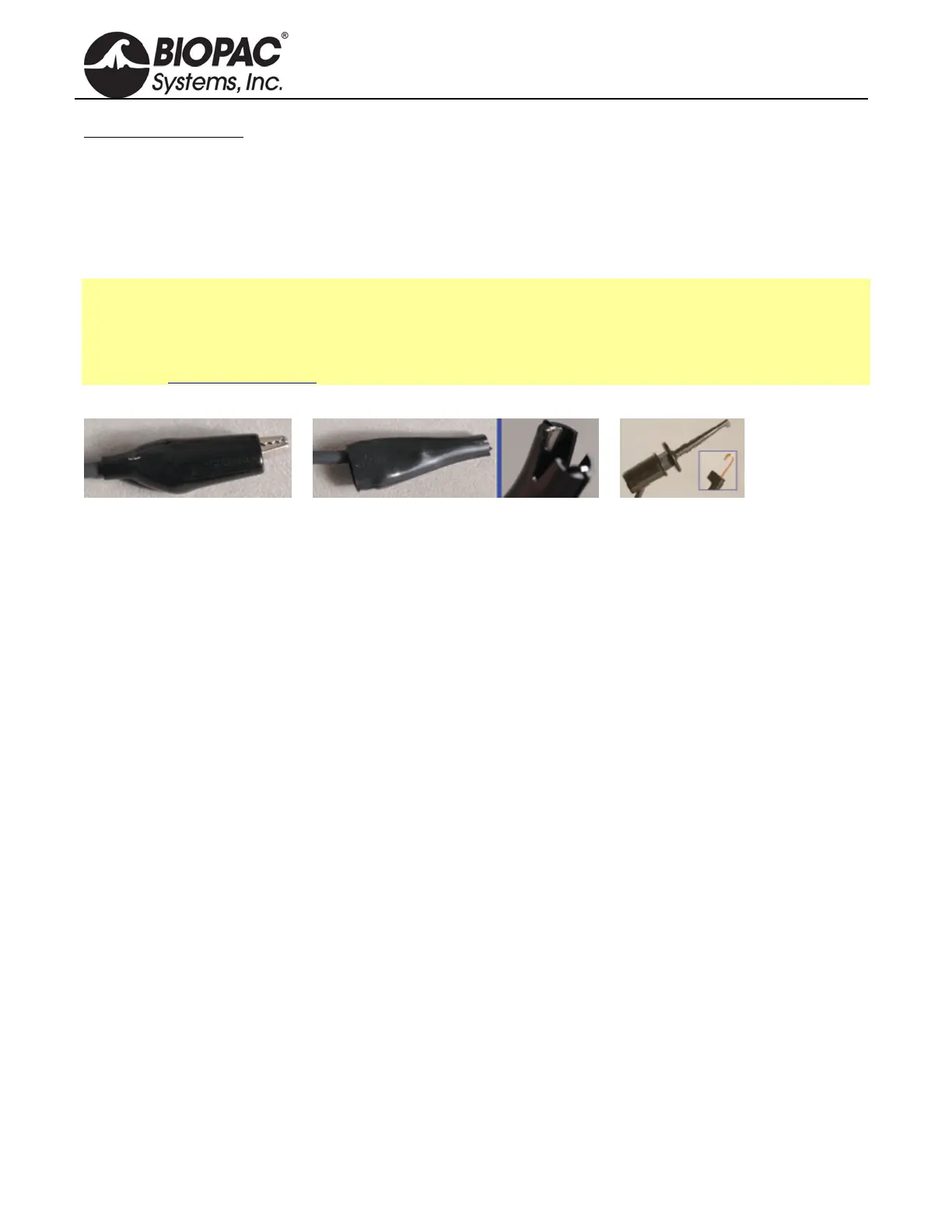

LEAD140 SERIES CLIP LEADS
LEAD140 Series clip leads have a 1 m black cable and a Touchproof connector, and require the SS1LA interface.
LEAD140 Alligator clip with teeth, 40 mm: Use this fully-insulated, unshielded lead to connect fine wire
electrodes, including irregular surfaces. There is ferrous metal in the clip.
LEAD141 Alligator clip with smooth (flat) clamp, 40 mm: Use this fully-insulated, unshielded lead to connect to
fine wire electrodes without damage, including arbitrarily small electrode wires. There is ferrous
metal in the clip.
LEAD142 Retractable clip lead with copper extension contacts, 3.5 mm: Use this unshielded lead to connect to
fine wire electrodes up to 1 mm diameter. There is non-ferrous copper alloy in the clip.
MRI Usage: MR Conditional
Condition: Tested 3T-9T (LEAD142 only)
