BIOPAC Hardware | Blood Pressure Cuff | Page 3 - 4 Updated: 3.28.2013

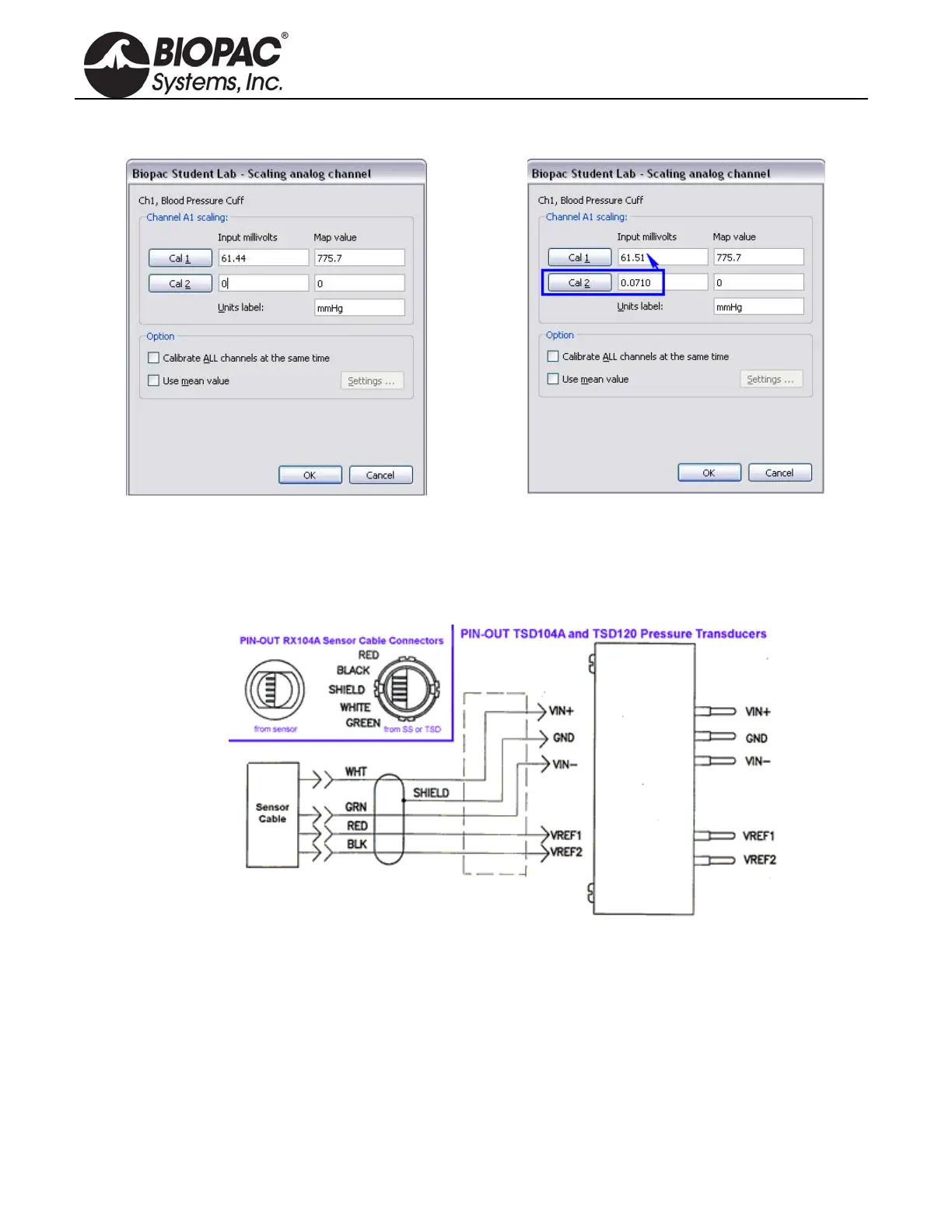

Example in BSL 4 – initial scaling dialog:
Clicking CAL 2 results in an Input value of 0.071 mV.
Adding 0.071 to the initial value of 61.44 results in an
adjusted CAL 1 value of 61.51 mV. (Your result may
vary slightly from the example).
IMPORTANT: CAL 1 and CAL 2 values are reversed between BSL 3.7.7 and BSL 4.
BLOOD PRESSURE CUFF SPECIFICATIONS
Pressure range: 20 mmHg to 300 mmHg
Manometer accuracy: ±3 mmHg
Output: 5 µV/mmHg (normalized to 1V excitation)
Cuff circumference range: 25.4 cm to 40.6 cm (as shipped with RX120 d; cuff is switchable)
Cuff Dimensions: 14.5cm (wide) x 54cm (long)
Weight: 350 grams
Cable Length: 3 meters, shielded
Interface:
TSD120 DA100C
SS19L/LA MP3x/4x
