Trigger 52
Set Window Trigger Via Absolute Window Type
1. Press the Setup key to enter the Trigger menu.
2. Press the Type softkey, then use the Universal Knob to select Window.
3. Press the Source softkey, then use the Universal Knob to select CH1 or CH2 as the trigger source.
4. Press the Window Type softkey to select Absolute.
5. Press the Lower Upper softkey to select Lower or Upper trigger level; then turn the Trigger Level Knob to adjust
the position.

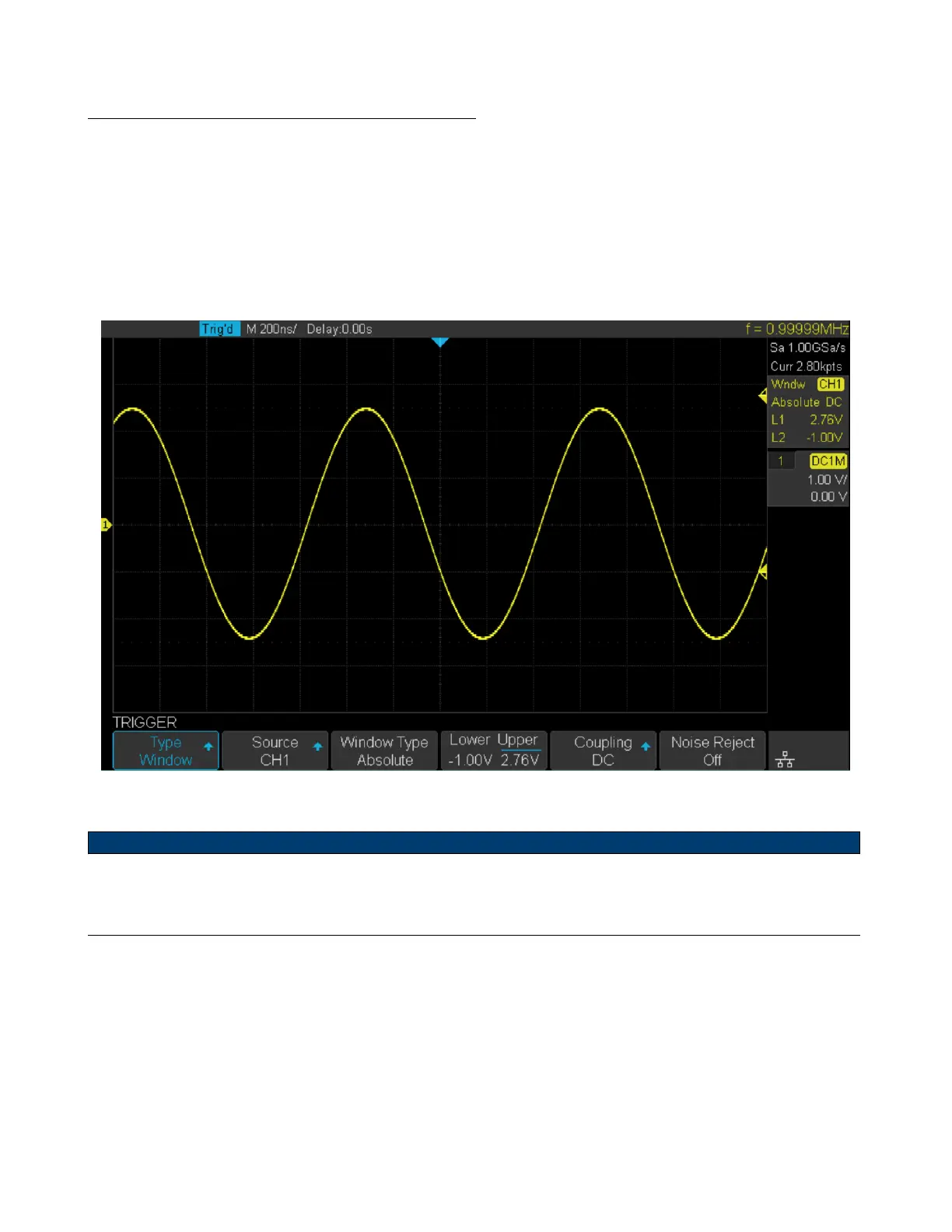

Figure 6.17 Absolute Window Trigger
Note:
The Lower trigger level cannot be higher than the upper trigger level. In the trigger state message box, L1 means the
upper trigger level while L2 means the lower trigger level.
