Serial Trigger and Decode 64
Note:
If the data’s value is 0xXX, any data value will be matched.

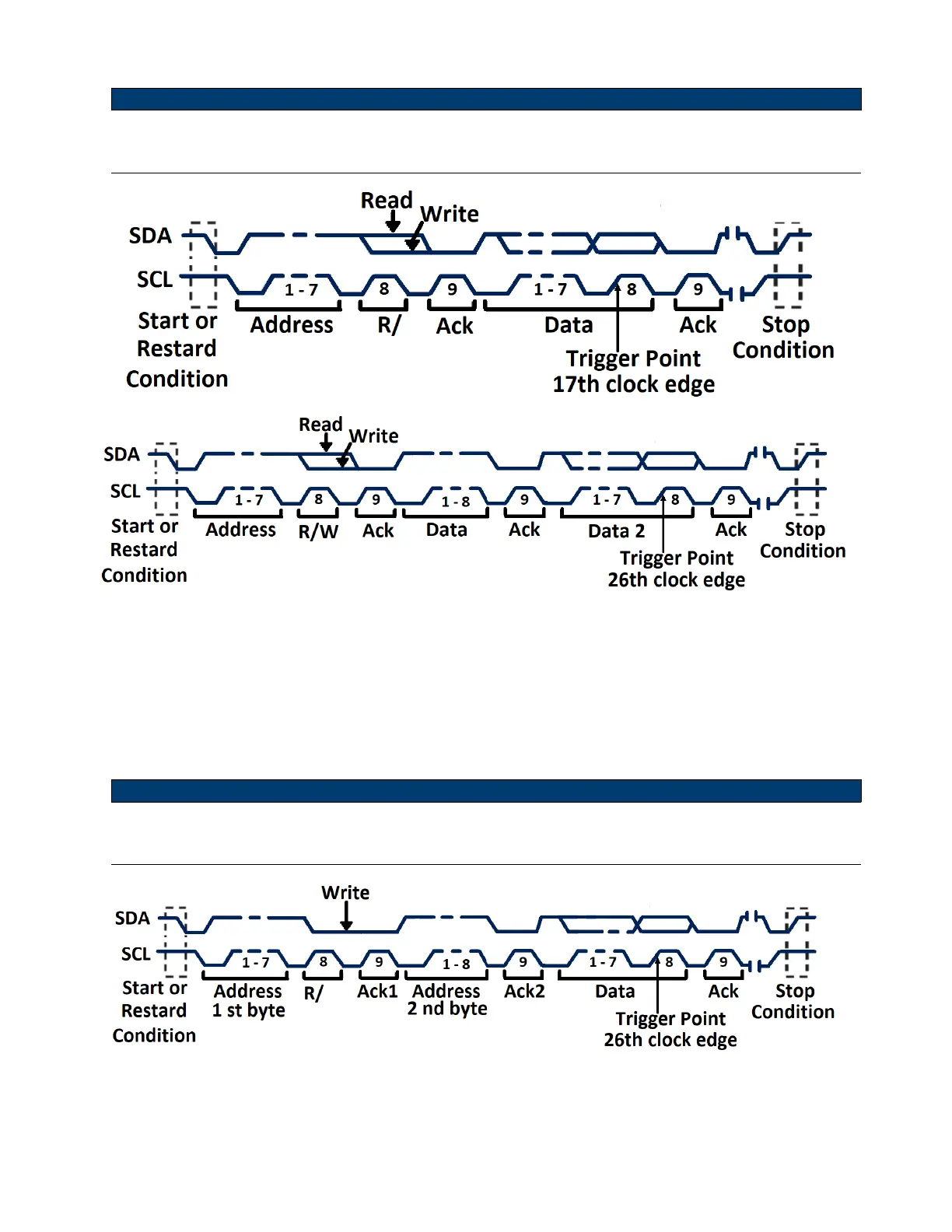

Figure 7.3 7 Address & Data
• 10 address & Data: The oscilloscope will be triggered when the following conditions are satised:
– The address’s length must be 10 bits and the address’s value must be the same as the set value.
– Data1’s or Data2’s value is set to the same value of the signal’s data.
– Both Data1’s and Data2’s value are set and the signal has two consecutive data values, the rst is value is Data1
and the second data value is Data2.
Note:
If the data’s value is 0xXX, any data value will be matched.
Figure 7.4 10 Address & Data
• Data Length: When SDA data’s length is equal to the value of Byte Length and address’s length is the same as set
value, the oscilloscope will be triggered. Byte length is in the range of 1 to 12 bits.
