Serial Trigger and Decode 69

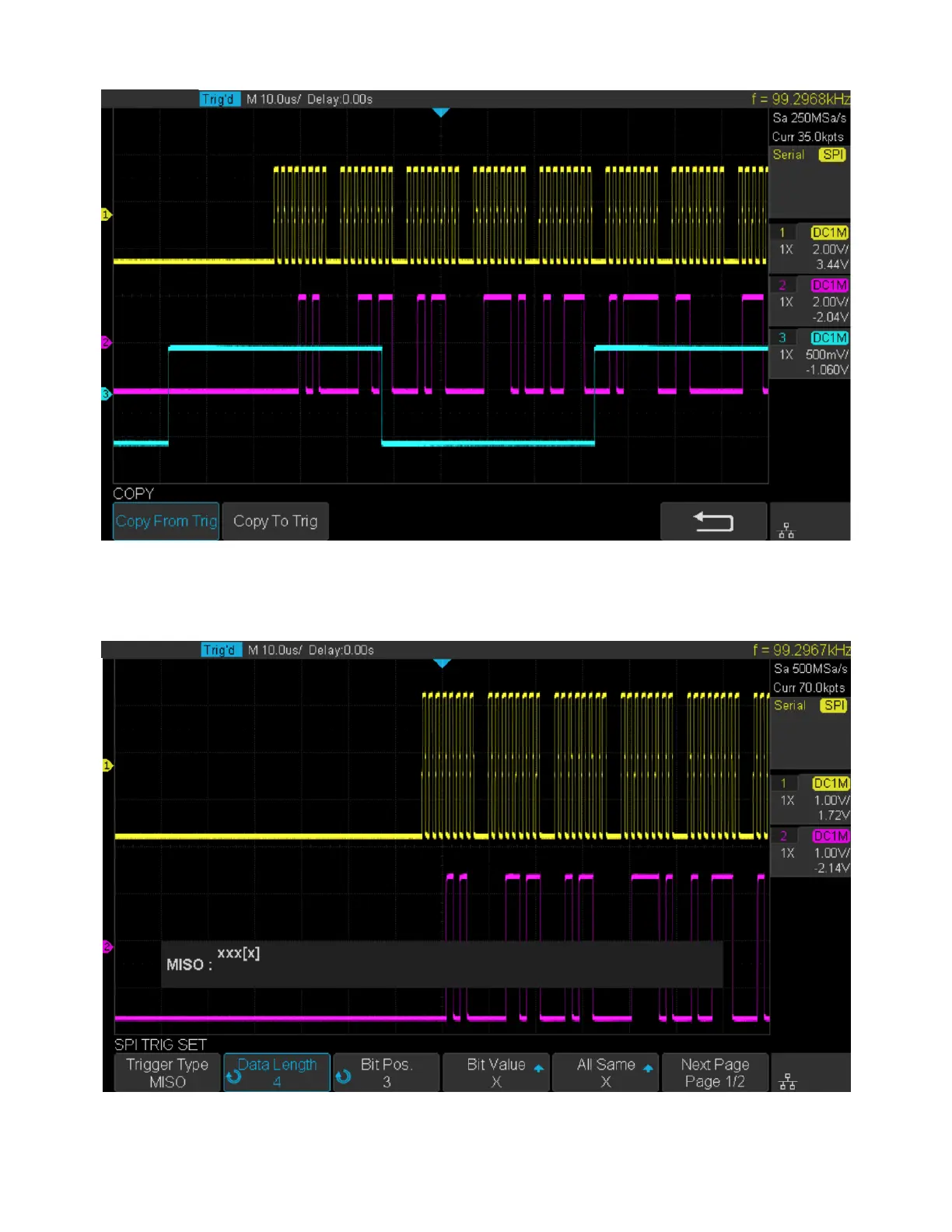

Figure 7.12 Example
When the CS type is set to Clock Timeout, the clock idle time between frames is T3, the clock period is T1, then set
the timeout to a value between T1 and T3
Figure 7.13 Example 2
