16.9
•

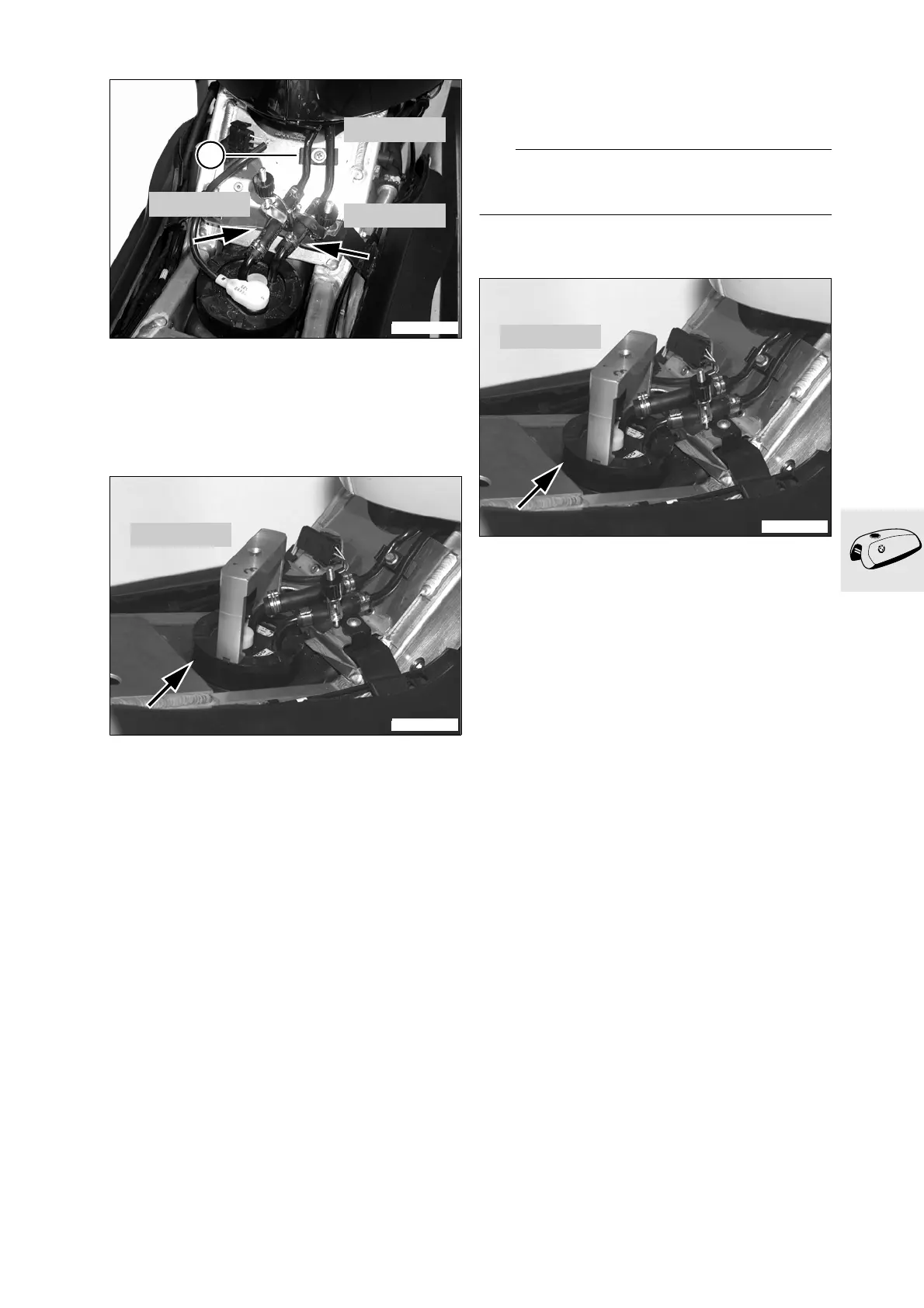

Use hose clamps,
BMW No. 13 3 010
, to close
off fuel hoses (arrows)
•
Slacken hose clamps with pliers,
BMW No. 17 5 500
•
Pull fuel lines out of bracket (1)
•
Disconnect the fuel hoses
•
Loosen union nut (arrow) with spanner,
BMW No. 16 1 721
•
Turn the fuel-pump unit 1/4 counter-clockwise
and lift it out to the left
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
e
Attention:
Take care not to damage the intake filter and the
fuel-level sensor!
•
Fit the seal and install the fuel-pump unit in the
fuel tan
•
Tighten union nut (arrow) with spanner,
BMW No. 16 1 721
X
Torque specification:
Union nut ..................................................... 20 Nm
13 3 010
C1160011
13 3 010
1
17 5 500
C1160100
16 1 721
C1160100
16 1 721
